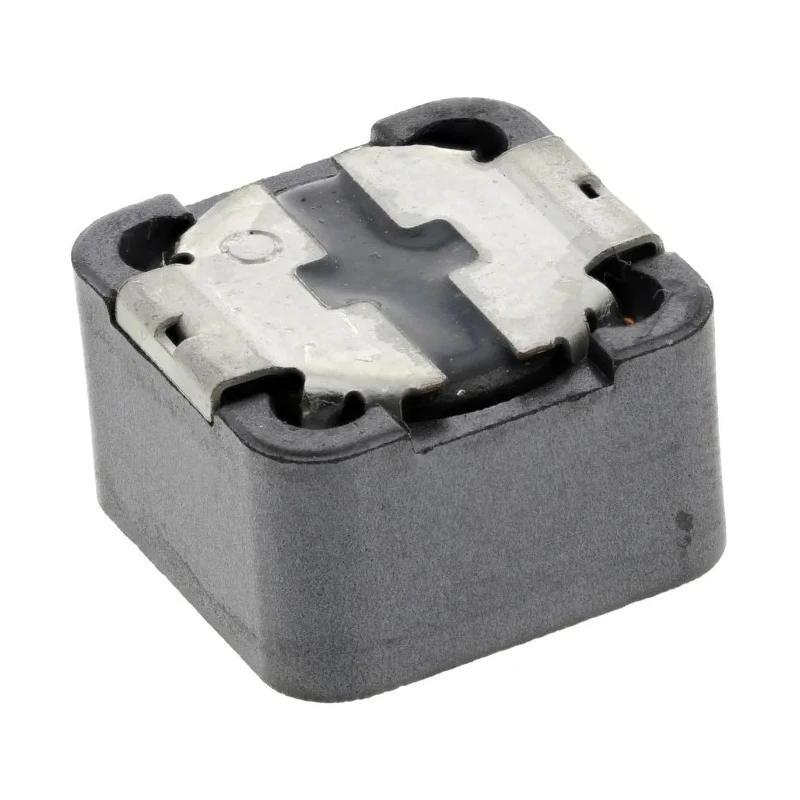

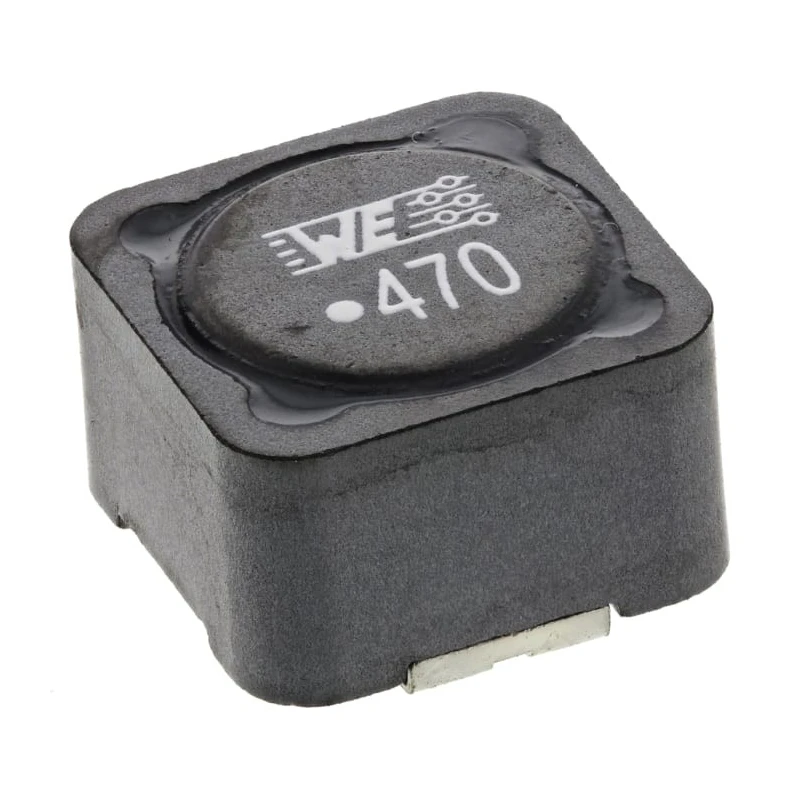

Wurth Elektronik Shielded Wirewound Surface Mount Inductor with Ferrite Core 47μH ±20 % 2.7 A IDC 1280 WE-PD 744770147
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 8mm |
| Brand | Wurth Elektronik |
| Height | 8mm |
| Length | 12mm |
| Depth | 12mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 47μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 62024-2-2020 |
| Package/Case | 1280 |
| Maximum DC Current | 2.7A |
| Maximum DC Resistance | 100mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 7.9MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Recommended solder profile | Reflow |
Key Features
- Inductor is magnetically shielded to minimize leakage fields.
- Constructed with a ferrite core providing high storage capacity and low self-losses.
- Designed for surface mount technology using package case 1280.
- Operating temperature range from -40°C up to 125°C for versatile use.
- Suitable for high-efficiency switching regulators and integrated DC/DC converters.
- Compliant with automotive standard AEC-Q200 and RoHS, REACH, JEDEC JS709B, IEC 62024-2-2020 standards.
- Recommended reflow solder profile for assembly compatibility.
- Maximum DC resistance of 100 mΩ ensures efficient power handling.
Product Description
Wurth Elektronik model 744770147 is a shielded wirewound surface mount inductor featuring a ferrite core with inductance of 47 μH and a tolerance of ±20 %. This inductor supports a maximum DC current of 2.7 A, making it suitable for demanding power applications.
The inductor is built with magnetic shielding, significantly reducing interference from leakage fields. The ferrite core construction offers high storage capacity combined with low self-losses, ensuring efficient operation in compact electronic assemblies.
Its package case size is 1280 with dimensions 12 mm length, 12 mm depth, and 8 mm height, designed for surface mount termination style. It operates reliably in temperatures ranging from -40°C to 125°C, supporting automotive-grade applications with the AEC-Q200 standard compliance.
This component is ideal for switching regulators with low operating voltages, integrated DC/DC converters, and is perfectly suited for high-efficiency switching regulators exceeding 86% efficiency. Its typical use cases include graphic cards and other power electronics requiring robust inductance and current handling capability.
Magnetically shielded design minimizes electromagnetic interference. Ferrite core enhances performance with high energy storage and low losses. Surface mount package suitable for modern PCB assembly techniques. Wide operating temperature range for industrial and automotive environments.
Complies with major standards RoHS, REACH, and IEC ensuring regulatory compatibility. Maximum DC resistance limited to 100mΩ for efficient current flow. Recommended solder reflow profile enables reliable mounting. Supports applications in power converters and switching regulators.
This product fulfills critical needs in industrial electronics, automotive, manufacturing, and other sectors requiring shielded inductors with stable performance under various conditions. Browse more Surface Mount Inductors and related electronic components on EnvMart to support your design and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 47μH with a tolerance of ±20%.
It supports a maximum DC current of 2.7 A, making it suitable for various power applications.
The package case size is 1280, with dimensions of 12 mm in length, 12 mm in depth, and 8 mm in height.
It operates reliably within a temperature range of -40°C to 125°C.
The inductor is constructed with a ferrite core, which provides high storage capacity and low self-losses.
It complies with the automotive standard AEC-Q200, ensuring it meets industry requirements.
The maximum DC resistance is limited to 100 mΩ, ensuring efficient power handling.
The recommended soldering method is reflow, which is suitable for surface mount technology.
It is compliant with RoHS, REACH, JEDEC JS709B, and IEC 62024-2-2020 standards.
The maximum self-resonant frequency is 7.9 MHz, which is important for its performance in applications.
It features a wirewound construction, which is typical for inductors used in various electronic applications.
The inductor is packaged in tape and reel format, which is convenient for automated assembly processes.
