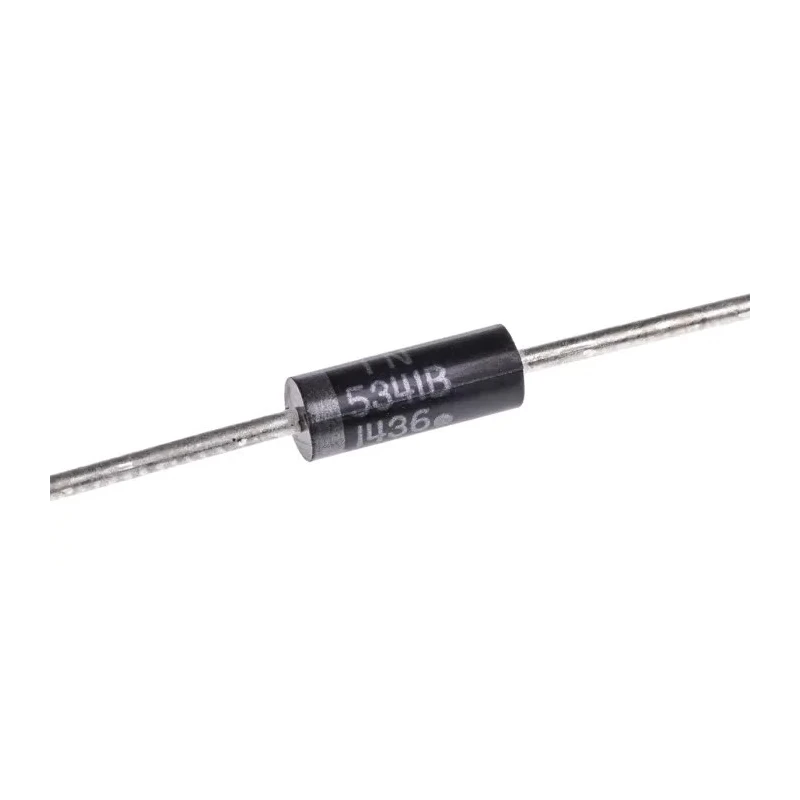

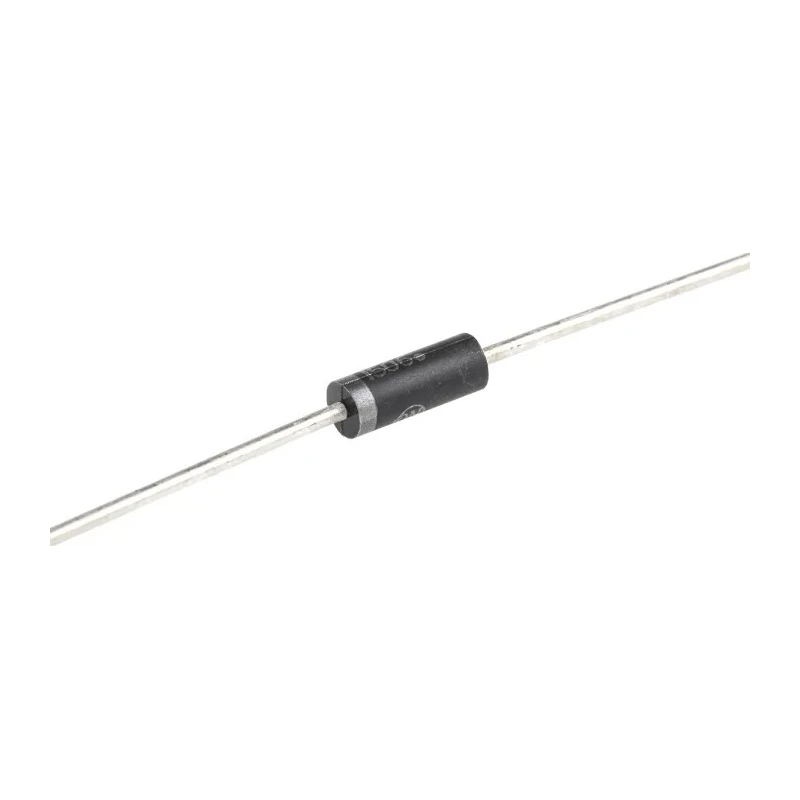

onsemi Zener Diode Nominal 6.2 V Single 5 W Through Hole 2-Pin DO-15 1N5341BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5341BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 200mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 6.2V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 1Ω |
| onsemi 1, 6.2 V Zener Diode, Single 5 W 5 % Through Hole 2-Pin DO-15Brand | onsemi |
Key Features
- Nominal Zener voltage is 6.2 volts for voltage regulation applications.
- Maximum power dissipation of 5 watts ensures reliable performance under load.
- Constructed with a corrosion-resistant molded thermosetting plastic package for durability.
- 2-pin axial configuration suitable for through-hole mounting on PCBs.
- Tight voltage regulation with ±5% tolerance and low maximum Zener impedance of 1 ohm.
- Maximum operating temperature up to 200°C and minimum down to -65°C.
- Maximum reverse leakage current of 1 microamp ensuring low leakage losses.
- Test current is 200 milliamperes to define voltage regulation.
Product Description
onsemi 1N5341BG Zener Diode is a single-element, through-hole diode designed for voltage regulation with a nominal Zener voltage of 6.2 volts. It features a robust DO-15 molded package that is void-free transfer-molded with thermosetting plastic offering excellent protection against environmental factors.
Capable of 5 watts maximum power dissipation, this Zener diode provides precise voltage regulation with tight ±5% tolerance. Its low maximum Zener impedance of 1 ohm supports stable operation under load, while a maximum reverse leakage current of 1 microampere minimizes leakage losses.
The device is rated for operating temperatures from -65°C up to 200°C, making it suitable for harsh industrial environments. The 2-pin axial configuration allows for easy through-hole mounting on printed circuit boards.
Physical dimensions include a length of 8.89 mm and a height of 3.68 mm, designed to fit compact setups. The diode is tested at a current of 200 mA to ensure reliable voltage regulation performance.
Typical industrial applications include voltage stabilization in power supplies, protection circuits, and other electronic equipment requiring precise voltage reference and regulation.
Nominal Zener voltage of 6.2 V and ±5% tolerance for accurate voltage regulation. Maximum power dissipation of 5 W supports high-load applications. Robust DO-15 molded package offers durability and environmental resistance.
2-pin through-hole axial mount design for simple PCB installation. Wide operating temperature range from -65°C to 200°C for industrial use. Low leakage current and impedance enhance efficiency and performance.
This Zener diode is a reliable choice for industrial and electronic circuits requiring stable voltage regulation. Explore more semiconductor components and electronic accessories at EnvMart.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 6.2 volts, making it suitable for voltage regulation applications.
This model has a maximum power dissipation of 5 watts, ensuring reliable performance under load conditions.
The maximum operating temperature for this Zener diode is 200°C, allowing it to function in harsh industrial environments.
The minimum operating temperature is -65°C, which enables its use in extreme conditions.
It is constructed in a DO-15 molded package, which provides excellent protection against environmental factors.
This model features a 2-pin axial configuration suitable for through-hole mounting on printed circuit boards (PCBs).
The maximum reverse leakage current is 1 microampere, which helps minimize leakage losses during operation.
The test current for this diode is 200 milliamperes, which is used to ensure reliable voltage regulation performance.
The maximum Zener impedance is 1 ohm, supporting stable operation under load conditions.
The dimensions of this diode are 8.89 mm in length and 3.68 mm in height, making it suitable for compact setups.
Typical applications include voltage stabilization in power supplies, protection circuits, and other electronic equipment requiring precise voltage reference and regulation.
The tolerance for the nominal Zener voltage is ±5%, ensuring accurate voltage regulation.
