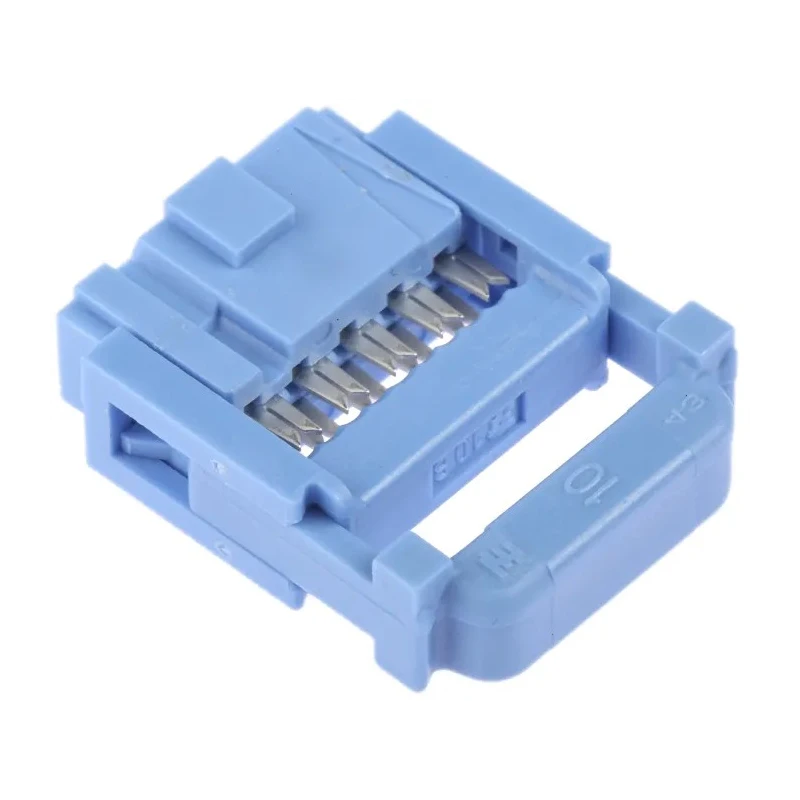

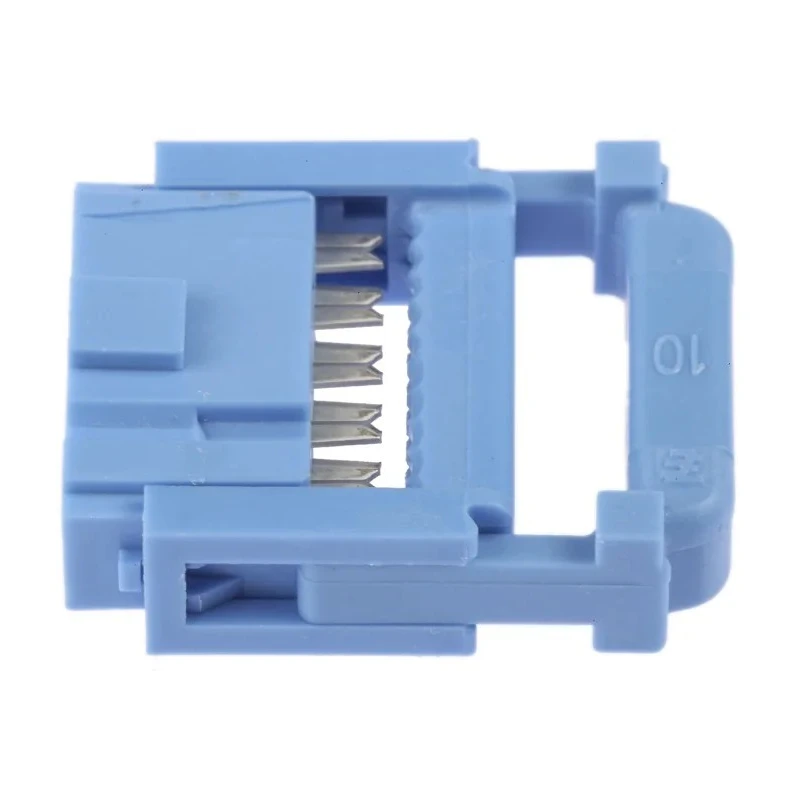

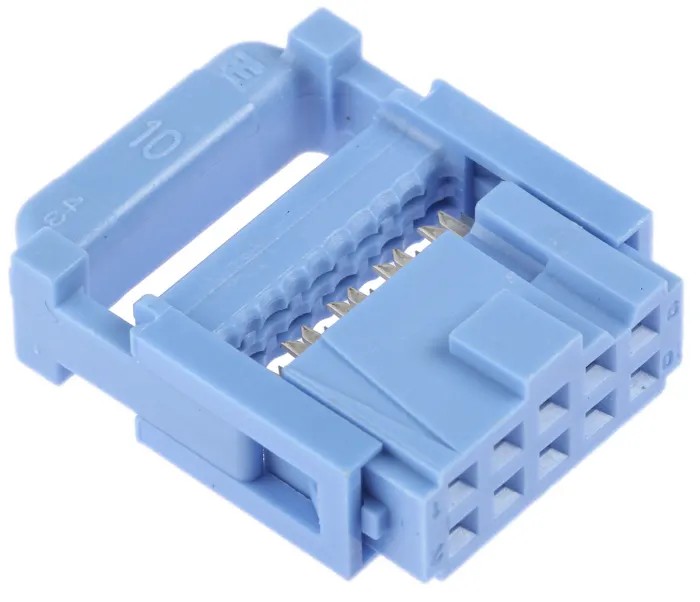

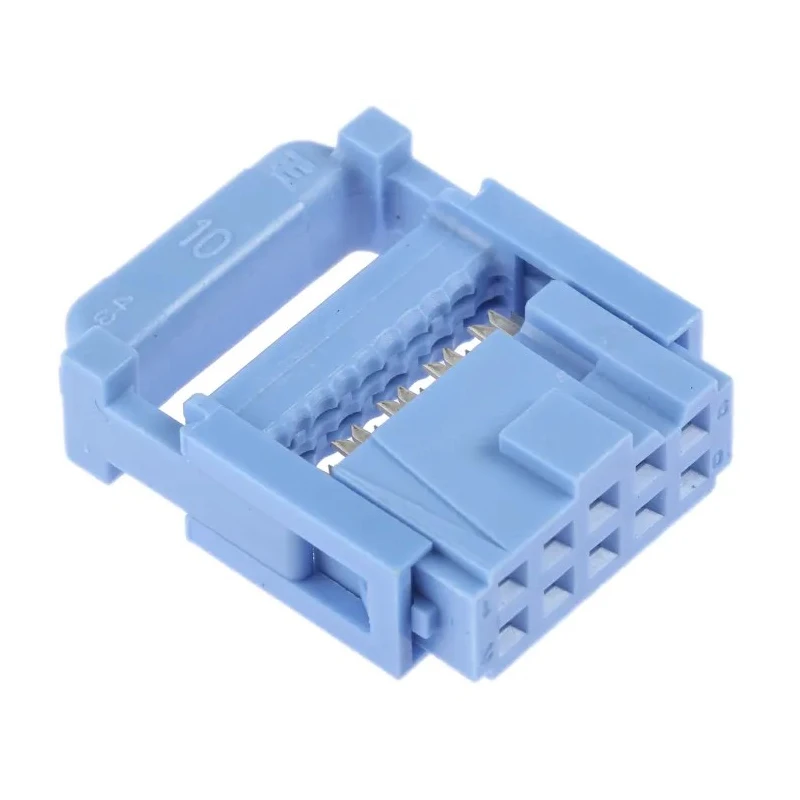

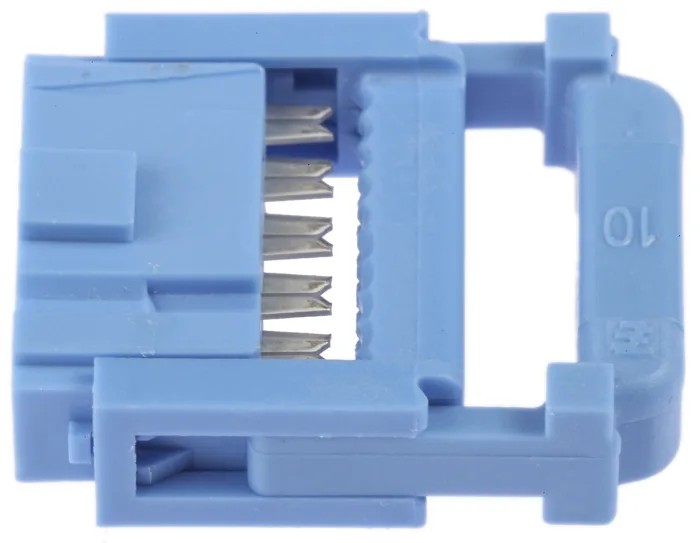

TE Connectivity 10-Way IDC Connector Female for Cable 2 Row 250V 1A Gold over Nickel Plating 1658527-4

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity 10-Way IDC Connector Female for Cable 2 Row 250V 1A Gold over Nickel Plating 1658527-4

Name: TE Connectivity 10-Way IDC Connector Female for Cable 2 Row 250V 1A Gold over Nickel Plating 1658527-4
Brand: TE Connectivity
SKU: 119203
Price: 4.46 USD
Availability: InStock



Category IDC Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	TE Connectivity
Orientation	Right Angle
Current	1A
Mount Type	Cable
Housing Material	Thermoplastic
Contact Material	Beryllium Copper
Series	AMP-LATCH 622
Termination Type	IDC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	10
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded
TE Connectivity 10-Way IDC Connector Female for Cable, 2 RowBrand	TE Connectivity
RS PRO 10-Way IDC Connector Female for Cable, 2 RowBrand	RS PRO

Key Features

Features 10 contacts arranged in 2 rows for multi-connection capability.
Operates at a voltage of 250V and current rating of 1A.
Right-angle cable mount with gold over nickel contact plating ensures durable connectivity.
Constructed from thermoplastic housing and beryllium copper contacts with tin over nickel plating.
Operates reliably within temperature ranges from -55°C to 125°C.
Designed as part of the AMP-LATCH 622 Series for ribbon cable applications.
Suitable for use with 26-28 AWG stranded PVC insulated ribbon cables.
Contact pitch is 2.54mm, providing precise spacing for PCB integration.

Product Description

TE Connectivity 1658527-4 10-Way IDC Connector Female for Cable 2 Row is engineered for precise and reliable electronic connections in industrial and electronic applications. This shrouded IDC connector features 10 contacts arranged in 2 rows, designed to interface seamlessly with compatible flat ribbon cables.

The connector operates at a rated voltage of 250V and current of 1A, suitable for various electronic and electrical assemblies requiring dependable signal transmissions. Constructed with a thermoplastic housing material and beryllium copper contacts plated with gold over nickel, it ensures long-term durability and corrosion resistance essential for demanding environments.

Operating temperature ranges from -55°C to 125°C enable this connector to function efficiently under harsh thermal conditions encountered in industrial, laboratory, and manufacturing settings. The right-angle cable mount configuration facilitates streamlined cable routing in confined spaces.

This connector is part of the AMP-LATCH 622 Series and offers a contact pitch of 2.54mm, making it compatible with industry-standard PCBs and flat ribbon cables rated for 26-28 AWG stranded PVC insulation. Its shrouded female design protects contacts and enhances secure connection integrity.

Features 10 contacts in 2 rows for comprehensive connectivity. Gold over nickel contact plating resists oxidation and supports reliable signals. Thermoplastic housing provides robust mechanical stability and UL 94V-0 flammability rating.

Supports operating temperatures from -55°C to 125°C for diverse applications. Right-angle cable mount orientation optimizes space usage in assemblies. Designed for 26-28 AWG stranded PVC ribbon cable compatibility. Contact spacing of 2.54mm matches standard PCB layouts.

Durable beryllium copper contacts for flexible and secure engagements.

This 10-Way IDC Connector is ideal for applications in electronic components assembly, industrial equipment wiring, laboratory instrumentation, and commercial electrical setups. Its robust design and precise manufacturing standards adhere to IDC and DIN-41651 guidelines, providing reliable performance and easy integration within existing systems.

Explore EnvMart’s extensive catalog of connectors and electronic components for all your industrial and commercial wiring needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This IDC connector operates at a voltage of 250V and has a current rating of 1A.

The connector features a thermoplastic housing and beryllium copper contacts, with the contacts plated in gold over nickel.

It operates reliably within a temperature range from -55°C to 125°C.

This connector has 10 contacts arranged in 2 rows, allowing for multi-connection capability.

It is designed for use with 26-28 AWG stranded PVC insulated ribbon cables.

The contact pitch is 2.54mm, which provides precise spacing for PCB integration.

This model features a right-angle cable mount orientation, which optimizes space usage in assemblies.

This connector is shrouded, which helps protect the contacts and enhances connection integrity.

It is part of the AMP-LATCH 622 Series, designed for ribbon cable applications.

The country of origin for this connector is India.

The termination type for this model is IDC (Insulation Displacement Connector).

It is suitable for applications in electronic components assembly, industrial equipment wiring, laboratory instrumentation, and commercial electrical setups.
