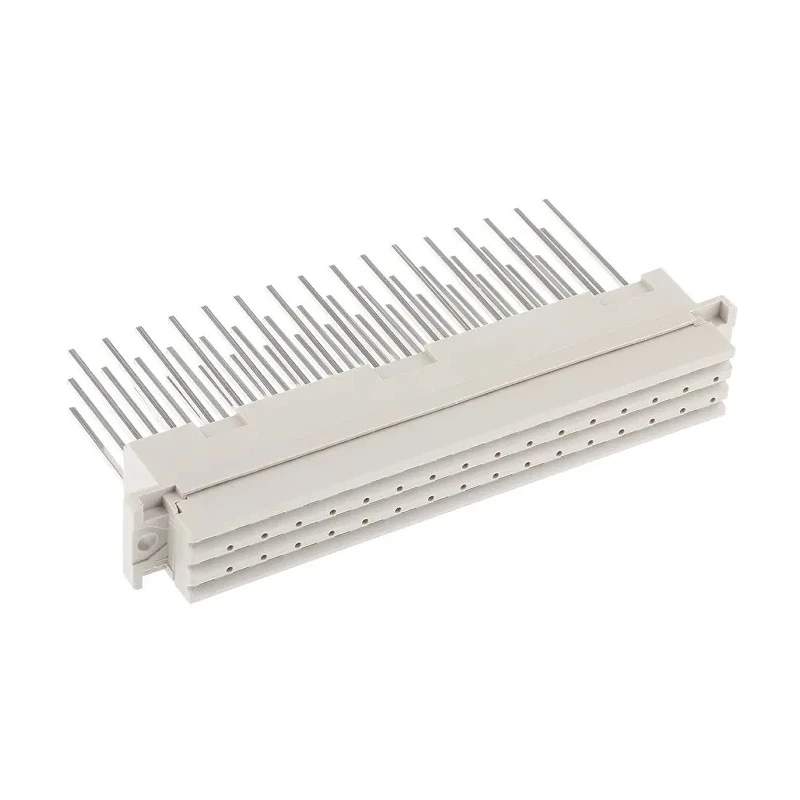

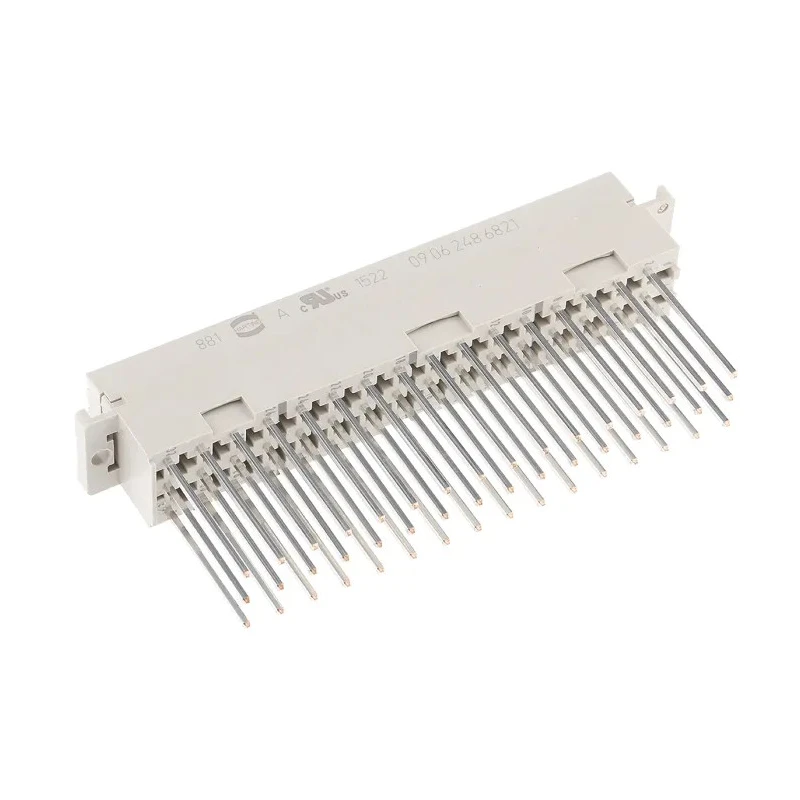

HARTING DIN 41612 48 Way 5.08 mm Pitch, Type C/2, Wire Wrap Termination, Class C2, 3 Row Female, Straight 09062486821
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 6A |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Wire Wrap |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 5.08mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 48 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | Z, D, B |
Key Features
- Features 48 contacts arranged in 3 rows for high-density connections.
- Wire wrap termination ensures secure electrical connections.
- Constructed using copper alloy contacts plated with gold over nickel for corrosion resistance.
- Can operate from -55°C up to 125°C, ideal for harsh environments.
- Rated for a maximum current of 6A per contact.
- Body made from robust polybutylene terephthalate housing for durability.
- Connector is female, straight orientation with row loading Z, D, B.
- Compatible with DIN 41612 series and class C2 specifications.
Product Description
HARTING 09062486821 DIN 41612 48 Way Female Connector, Type C/2, provides a reliable solution for wire wrap applications with a 5.08 mm pitch. This Class C2 connector features 48 copper alloy contacts arranged in 3 rows, plated with gold over nickel to ensure excellent conductivity and corrosion resistance.
Designed for demanding environments, it operates reliably in temperatures ranging from -55°C to 125°C, making it ideal for industrial control systems, railway transportation, and power supply units. The straight, female connector with row loading Z, D, B offers versatile assembly options compliant with the DIN 41612 standard.
The housing is made of durable polybutylene terephthalate (PBT), providing mechanical strength and stability. Each contact is rated for a maximum of 6A, supporting robust power transmission. This connector does not carry specific standards or approvals but adheres to industry-recognized design and material quality.
Applications include use in industrial electronics, control cards, power supplies, and other electronic device interconnections requiring high reliability and performance. It enables board-to-board and cable-to-board connections, ensuring efficient electrical interfaces.
High-density 48-contact design for efficient connectivity. Gold over nickel plating for reliable electrical contact. Wide operating temperature range suited for harsh environments. Robust PBT housing for enhanced mechanical durability.
Suitable for industrial, railway, and power supply applications. Wire wrap termination for secure electrical connections. Complies with DIN 41612 series and class C2 specifications. Manufactured in Germany to exacting quality standards.
Explore EnvMart’s extensive catalog of connectors and electronic components for industrial and commercial applications.
Explore more products in our DIN 41612 Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
Each contact in this model is rated for a maximum current of 6A, allowing for robust power transmission.
It can operate reliably in temperatures ranging from -55°C to 125°C, making it suitable for harsh environments.
This model features 48 contacts arranged in 3 rows, providing high-density connections.
It utilizes a wire wrap termination type, ensuring secure electrical connections.
The contacts are made from copper alloy plated with gold over nickel, while the housing is constructed from polybutylene terephthalate (PBT).
The connector has a pitch of 5.08 mm, which is standard for high-density applications.
This model features a straight orientation with row loading options Z, D, and B.
It is manufactured in Germany, adhering to exacting quality standards.
It is suitable for use in industrial electronics, control cards, power supplies, and other electronic device interconnections.
The maximum contact resistance is specified at 15mΩ, ensuring reliable electrical contact.
It complies with the DIN 41612 series and class C2 specifications, ensuring compatibility in various applications.
The contacts are plated with gold over nickel, which provides excellent conductivity and corrosion resistance.
