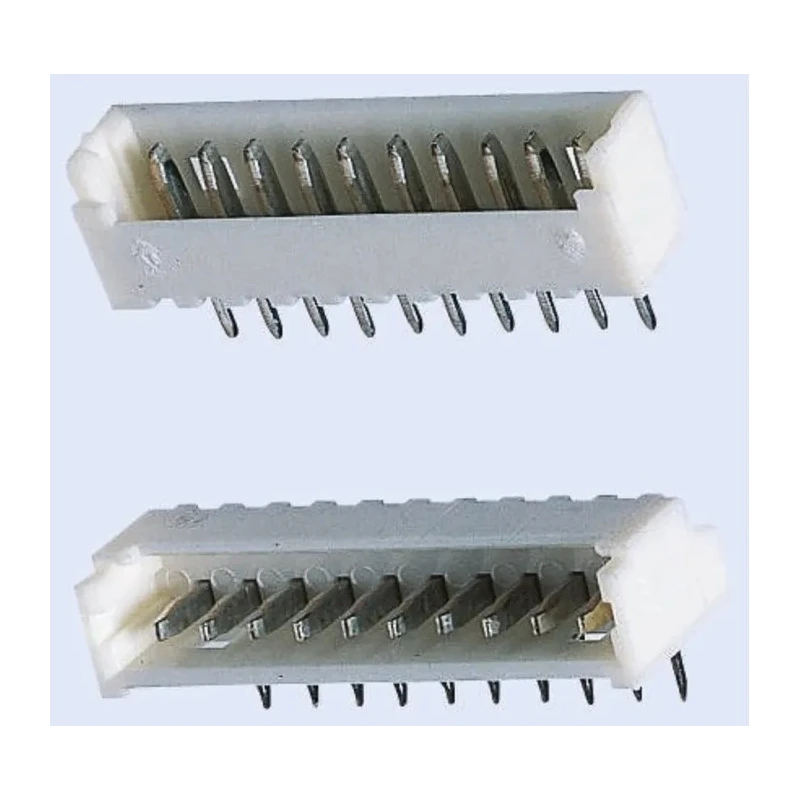

Molex PicoBlade Series Right Angle Through Hole PCB Header, 12 Contact, 1.25 mm Pitch, Shrouded 53048-1210

Molex 53048-1210 PicoBlade Series right angle through hole PCB header features 12 male contacts with a 1.25 mm pitch and a single row, designed for compact and efficient wire-to-board interconnections. The nylon housing is shrouded with locking windows that engage with crimp housing latching ramps to provide a secure friction lock, ensuring stable mating connections and durable performance in demanding environments.

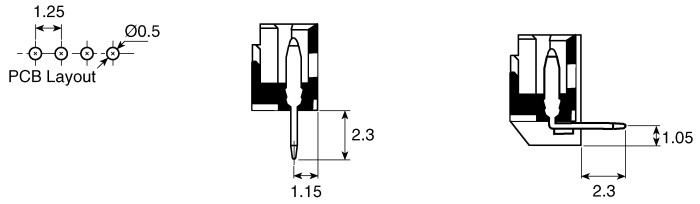

This PCB header supports currents up to 1 ampere, matching the performance of larger 2.00 mm pitch systems while saving up to 45 percent of PCB space, making it highly suitable for high-density applications. Its right angle orientation and 2.3 mm tail pin length facilitate ease of mounting and reliable solder termination through the hole mount style.

The tin-plated phosphor bronze contacts ensure conductivity and corrosion resistance, ideal for automotive alarms, car audio, DVD players, industrial process controls, and medical patient monitors. Operating temperature ranges from -40°C to 85°C allow dependable performance across diverse environments.

Compact 1.25 mm pitch achieves significant PCB space savings. Durable nylon housing with friction locking for secure connections. Supports 1 A current in a compact footprint. Right angle, shrouded, through hole mount for versatility.

Wide temperature range suitable for industrial and automotive uses. Tin-plated phosphor bronze contacts for excellent conductivity. Ideal for high density wire-to-board interconnections in harsh environments.

This PicoBlade PCB header is an excellent choice for engineers and designers looking to maximize PCB utilization without sacrificing electrical performance and connection security. Explore more Molex connectors from EnvMart for high-quality industrial electronics components and PCB hardware.
