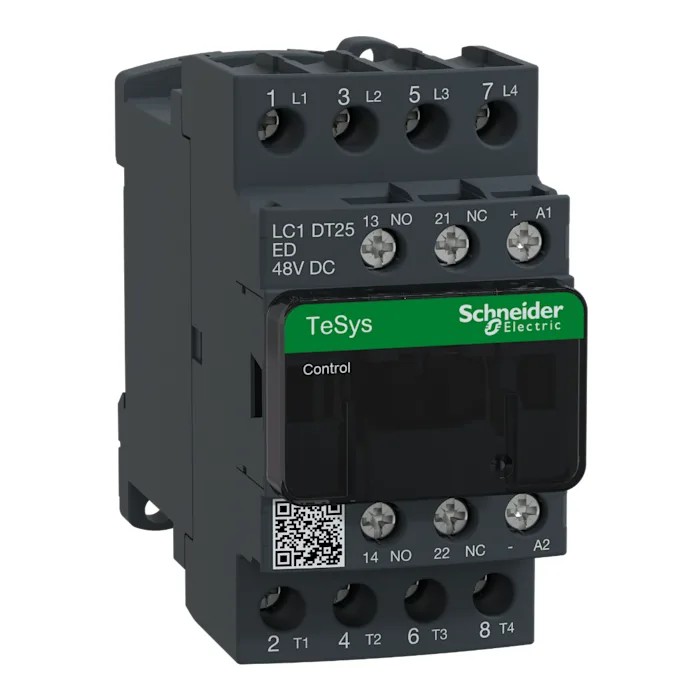

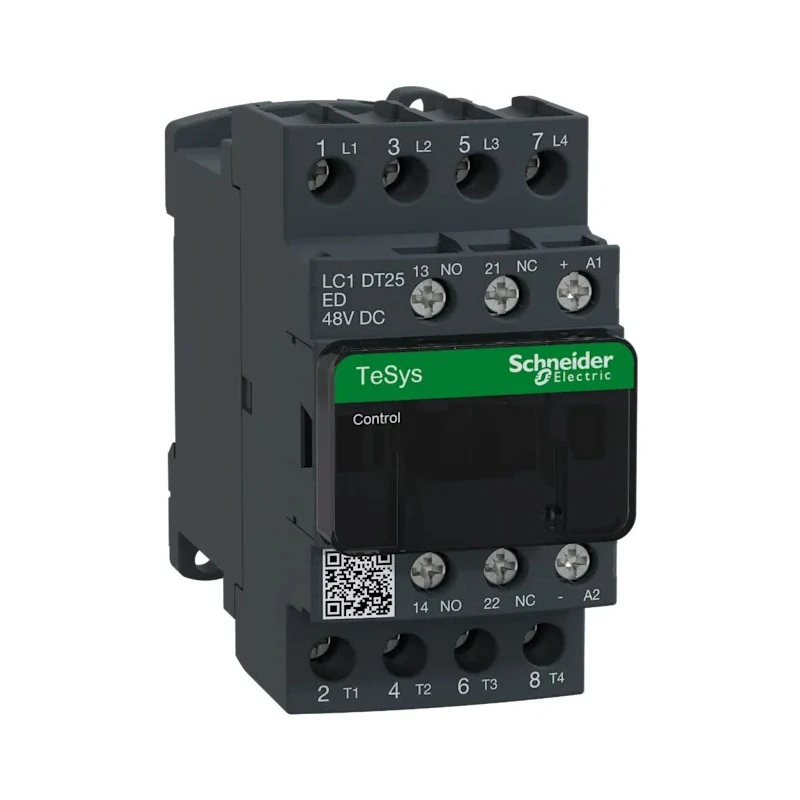

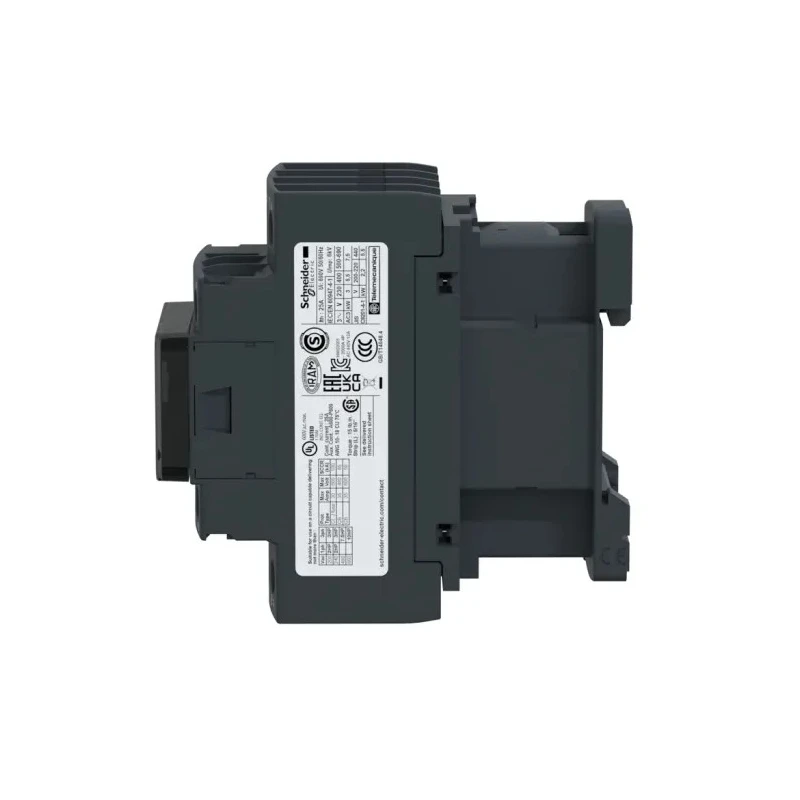

Schneider Electric LC1D Contactor, 48V DC Coil, 4-Pole, 25A Resistive Load, 690V AC/DC LC1DT25ED
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1DT25ED |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 48V dc |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 48V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 48V DC coil and designed for 4-pole switching applications.
- Rated for 25A contact current at 690V AC/DC voltage.
- Compact design with 45mm width and DIN rail mounting for easy installation.
- Includes 2 auxiliary contacts with 1 NO built-in for enhanced control functions.
- Suitable for motor control and resistive load applications up to 3600 cycles/hour.
- Operational temperature range from -40°C to 60°C for versatile environments.
- Constructed with screw clamp terminals for secure electrical connections.
- Complies with multiple standards including UL, CSA, IEC, CCC, EAC, and Marine certifications.
Product Description
Schneider Electric LC1DT25ED contactor is a high-quality, reliable device designed for motor starters and resistive load applications. Featuring a 48V DC coil, this 4-pole contactor supports a 25A contact current and can operate at 690V AC/DC voltage. The compact 45mm width and DIN rail mount design facilitate quick integration into control panels.
This contactor includes 2 auxiliary contacts, comprising 1 normally open (NO) and 1 normally closed (NC) mirror-certified contacts, providing flexible operational control for a variety of industrial applications. The robust screw clamp terminals ensure secure and safe electrical connections.
Engineered to withstand operating temperatures from -40°C to 60°C, the LC1DT25ED is suitable for demanding environments and high switching rates up to 3600 cycles per hour. It meets numerous international standards such as UL, CSA, IEC, CCC, EAC, and Marine standards, and is RoHS and REACh compliant, positioning it as a Green Premium product.
Its primary use cases include motor control and resistive load management in industrial automation, manufacturing processes, HVAC systems, and general electrical control gear applications. The contactor's design emphasizes durability, safety, and ease of use, making it a trusted choice in industrial settings.
Equipped with 48V DC coil and designed for 4-pole switching applications. Rated for 25A contact current at 690V AC/DC voltage. Compact design with 45mm width and DIN rail mounting for easy installation. Includes 2 auxiliary contacts with 1 NO built-in for enhanced control functions.
Suitable for motor control and resistive load applications up to 3600 cycles/hour. Operational temperature range from -40°C to 60°C for versatile environments. Constructed with screw clamp terminals for secure electrical connections.
Complies with multiple standards including UL, CSA, IEC, CCC, EAC, and Marine certifications. Choose Schneider Electric Contactors at EnvMart for reliable, efficient industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1DT25ED contactor is rated for a contact current of 25A.
This model operates with a 48V DC coil voltage.
It can handle a maximum voltage of 690V AC/DC.
The contactor has a width of 45mm, a length of 85mm, and a depth of 99mm.
The LC1DT25ED is a 4-pole contactor.
It operates within a temperature range of -40°C to 60°C.
This model is designed for DIN rail mounting.
It includes 2 auxiliary contacts, with 1 normally open (NO) contact.
This contactor is suitable for motor control and resistive load applications.
It is constructed with screw clamp terminals for secure electrical connections.
It complies with multiple standards including UL, CSA, IEC, CCC, EAC, and Marine certifications.
The LC1DT25ED is suitable for switching applications up to 3600 cycles per hour.
