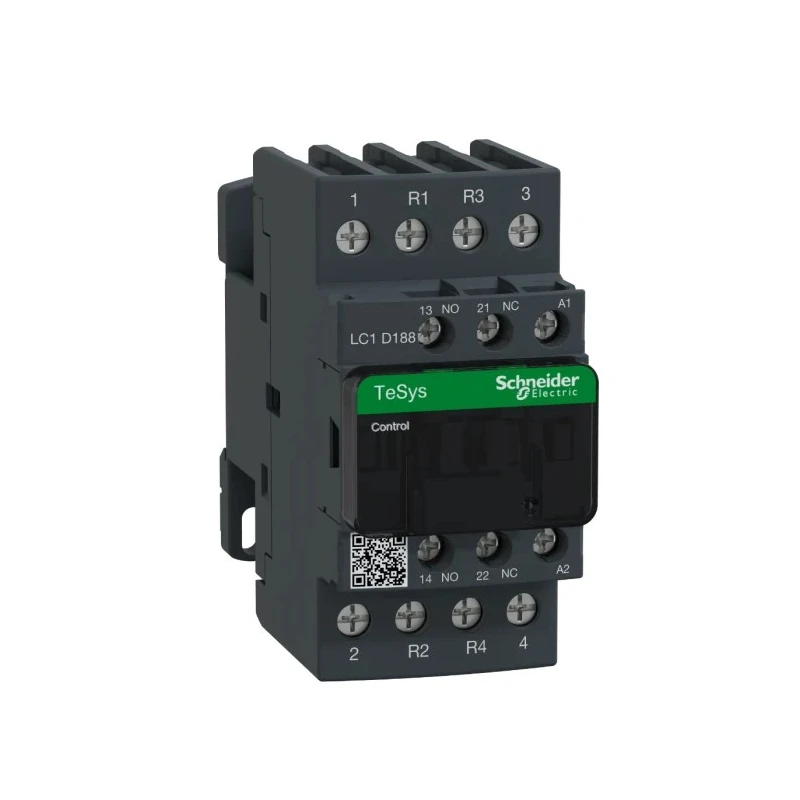

Schneider Electric TeSyS D 110V AC Coil 4-Pole Contactor 32 A 2.5 W LC1D188F7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Load Control, Resistive Load |
| Length | 91mm |
| Model | LC1D188F7 |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 2.5W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Rated for 32 A contact current ensuring handling of substantial electrical loads.
- 110V AC coil voltage providing reliable coil operation.
- 4-pole design enables effective control of multi-phase circuits.
- Contact voltage rating of 690V AC suitable for high-voltage environments.
- Configured with 2 normally open (NO) and 2 normally closed (NC) contacts for versatile control.
- Compact dimensions of 91mm length, 45mm width, and 99mm depth for space-efficient installation.
- DIN rail mounting type facilitates simple and secure fitting.
- Operating temperature range from -40°C to +60°C ensuring suitability for extreme conditions.
Product Description
Schneider Electric LC1D188F7 is a 4-pole TeSyS D Contactor featuring a 110V AC coil voltage and a contact current rating of 32 A with a power rating of 2.5 W. This compact, DIN rail mounted contactor measures 91mm in length, 45mm in width, and 99mm in depth, designed for robust and reliable industrial control applications.
Its contact configuration of 2 normally open (NO) and 2 normally closed (NC) contacts allows versatile switching functionality essential for load control with resistive loads. The contactor's 690V AC contact voltage rating ensures safe operation in demanding electrical environments commonly found in heavy industrial setups.
Operating efficiently within a temperature range of -40°C to +60°C, the LC1D188F7 is built to withstand extreme environmental conditions, making it suitable for use in control panels, automated machinery, HVAC systems, and backup power generators. The screw terminal design provides secure electrical connections, while auxiliary contacts (1 NO, 1 NC) enhance operational flexibility.
Compliant with multiple safety standards including CCC, CSA, EAC, IEC, RoHS, and UL, this contactor is engineered to deliver dependable performance in critical industrial control and automation scenarios.
The four-pole configuration is optimal for managing three-phase electrical loads, ensuring load balance and operational safety. Its DIN rail mounting facilitates easy installation and integration within electrical control cabinets.
Rated for 32 A electrical load current. 110V AC coil voltage for consistent control function. Robust temperature range from -40°C to +60°C. Compact and space-saving form factor (91 x 45 x 99 mm). Auxiliary contacts for expanded control options.
Designed for resistive load applications with high reliability.
This Schneider Electric contactor supports various industrial, manufacturing, HVAC, and electrical distribution applications. EnvMart offers a comprehensive range of Contactors from trusted brands like Schneider Electric for efficient load control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of the LC1D188F7 is 32 A, allowing it to handle substantial electrical loads effectively.
This contactor operates with a coil voltage of 110V AC, ensuring reliable coil operation.
The contact voltage rating for this model is 690V AC, suitable for high-voltage environments.
This model features a 4-pole design, enabling effective control of multi-phase circuits.
The operating temperature range for the LC1D188F7 is from -40°C to +60°C, making it suitable for extreme conditions.
The dimensions of this unit are 91mm in length, 45mm in width, and 99mm in depth, allowing for space-efficient installation.
It is designed for DIN rail mounting, facilitating simple and secure fitting in electrical control cabinets.
The LC1D188F7 is configured with 2 normally open (NO) and 2 normally closed (NC) contacts for versatile control.
This model includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC), enhancing operational flexibility.
This contactor complies with multiple safety standards including CCC, CSA, EAC, IEC, RoHS, and UL.
The LC1D188F7 is designed for resistive load applications and is suitable for use in control panels, automated machinery, HVAC systems, and backup power generators.
The power rating of the LC1D188F7 is 2.5 W, which supports its operational efficiency in controlling electrical loads.
