Eaton Contactor Star Delta 400V AC 22 kW 45A 3 Poles IP00 SDAINLM45(400V50HZ) 101384 SDAINLM45(400V50HZ)

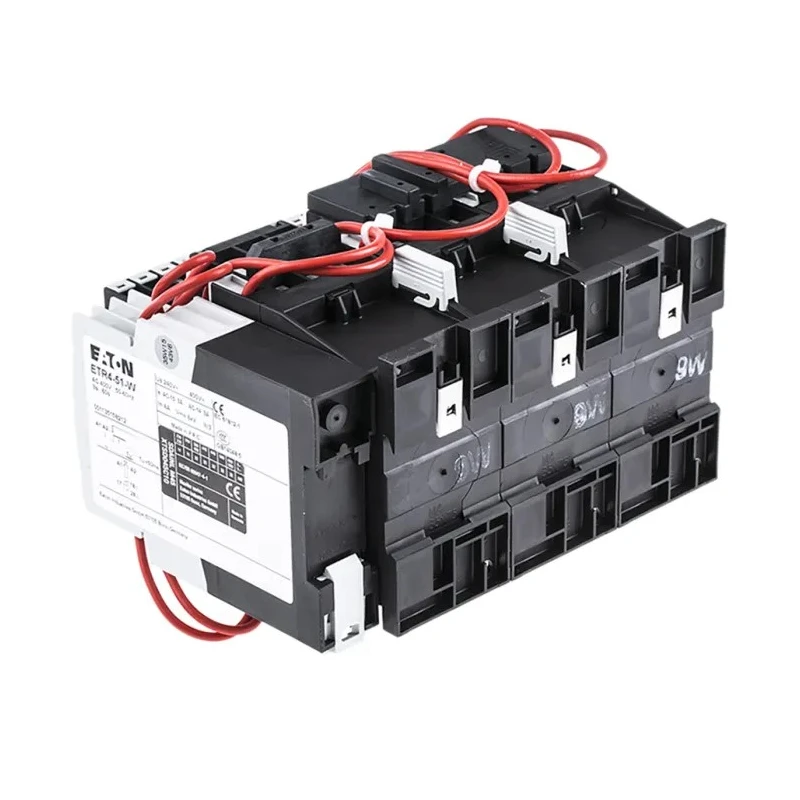

Eaton 101384 SDAINLM45(400V50HZ) Contactor is a star delta type motor starter designed for industrial applications operating at 400V AC with a power rating of 22 kW and 45A current capacity. It is part of Eaton's SDAINL series, known for reliable motor starting and energy-efficient operation compliant with IE3 standards.

This open chassis starter allows direct mounting onto a 35mm DIN rail inside customized enclosures facilitating quick installation. The compact device measures 85mm in length, 158mm in width, and 138mm in depth, providing an IP00 degree of protection against solid objects larger than 12mm, with no liquid ingress protection.

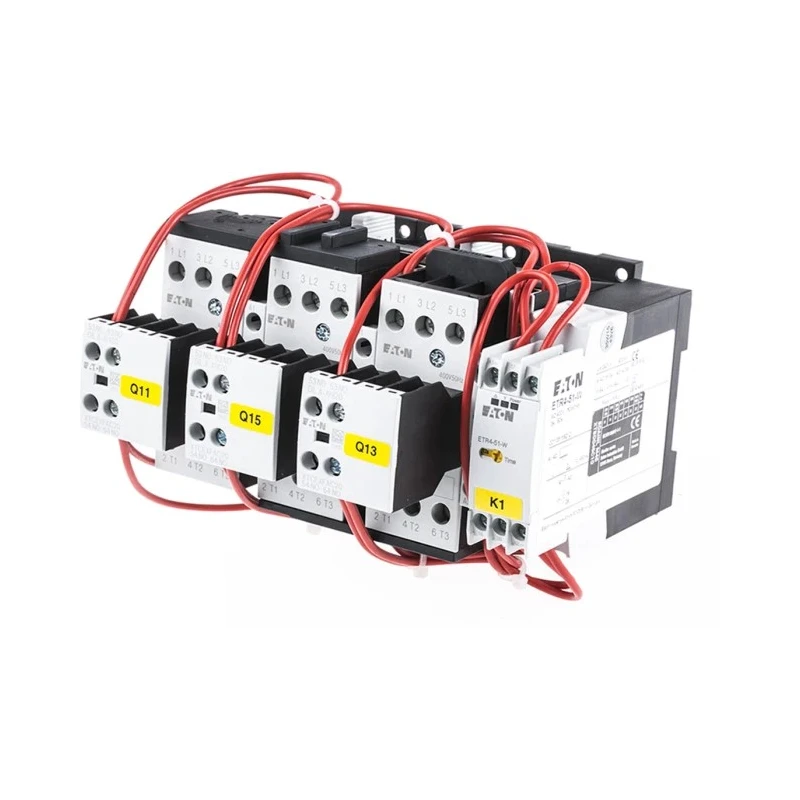

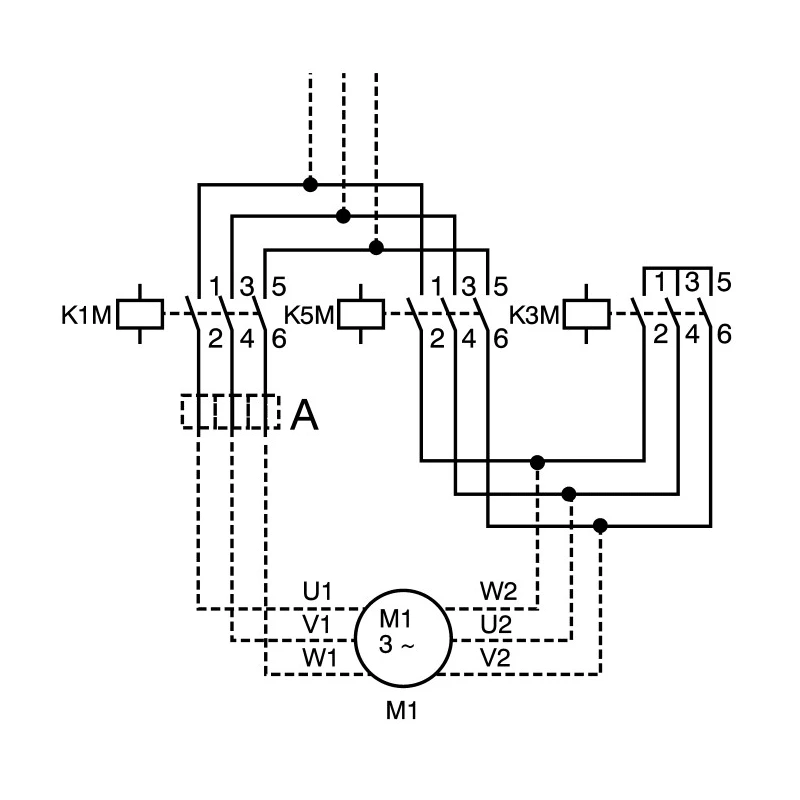

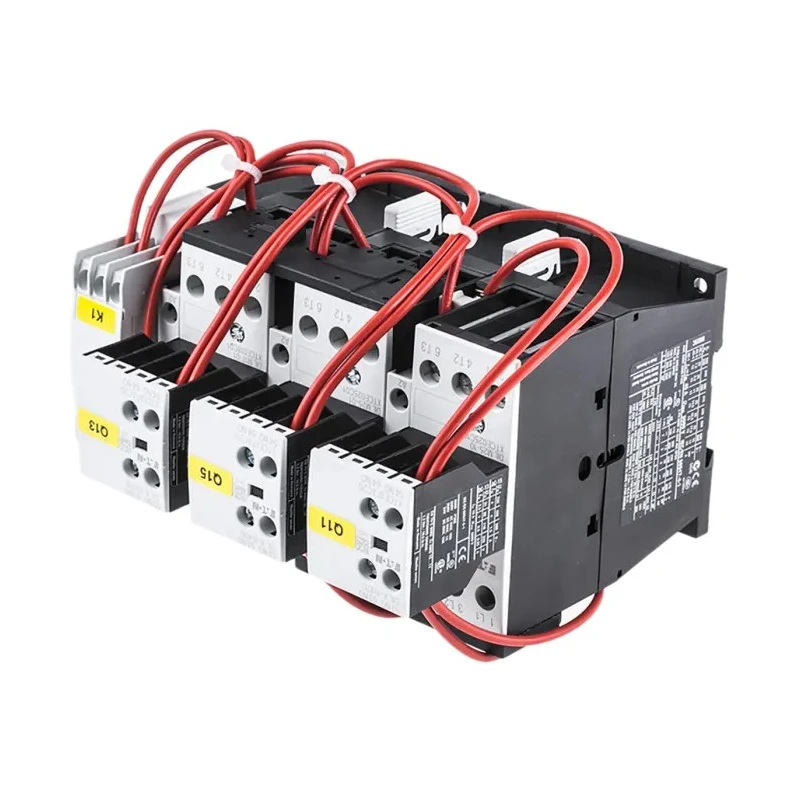

The starter consists of main, star, and delta contactors along with an adjustable star delta timer (0-30 seconds), essential for reducing the starting current by switching the motor windings from star to delta connection. It supports thermal overload relays Z00 or ZB from Eaton, which offer single phasing sensitivity compliant with IEC 947-4 standards. The product is engineered to operate within a temperature range of -25°C to +40°C, suitable for a variety of industrial environments.

The motor starter is ideal for industries requiring efficient motor control such as manufacturing, HVAC systems, water treatment facilities, and industrial automation. Overload relays are not included and should be selected based on specific motor load characteristics and ordered separately.

Technical specifications include a 3-pole design capable of handling 45A current at 400V AC voltage with a power rating of 22 kW. This product ensures reliable motor starting while minimizing electrical stress, extending motor lifespan, and reducing energy consumption.

Suitable for motors requiring star delta starting to reduce inrush current. Provides 3-pole contact switching with IP00 ingress protection. Compact dimensions: 85mm length, 158mm width, and 138mm depth. Complies with IE3 energy efficiency standards for motor starters.

Features adjustable star delta timer between 0 to 30 seconds for customized operation. Designed for mounting on 35mm DIN rail in customized enclosures for easy installation. Supports Eaton Z00 or ZB thermal overload relays enhancing motor protection.

Operates reliably within temperature range -25°C to +40°C. Overload relay must be ordered separately according to motor requirements. Explore more reliable Contactors and motor starters at EnvMart to meet your industrial automation and motor control needs.
