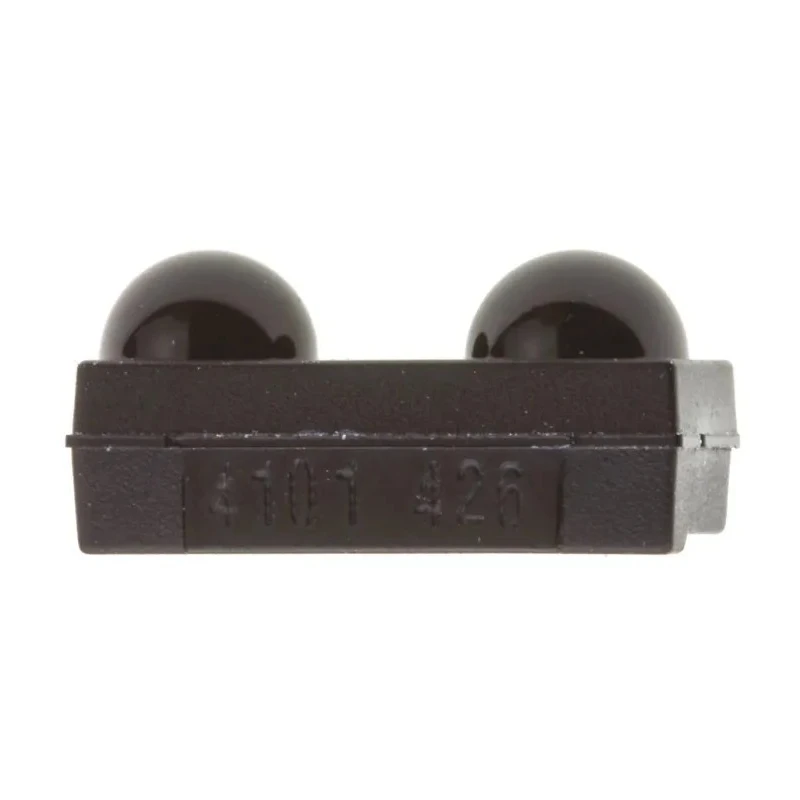

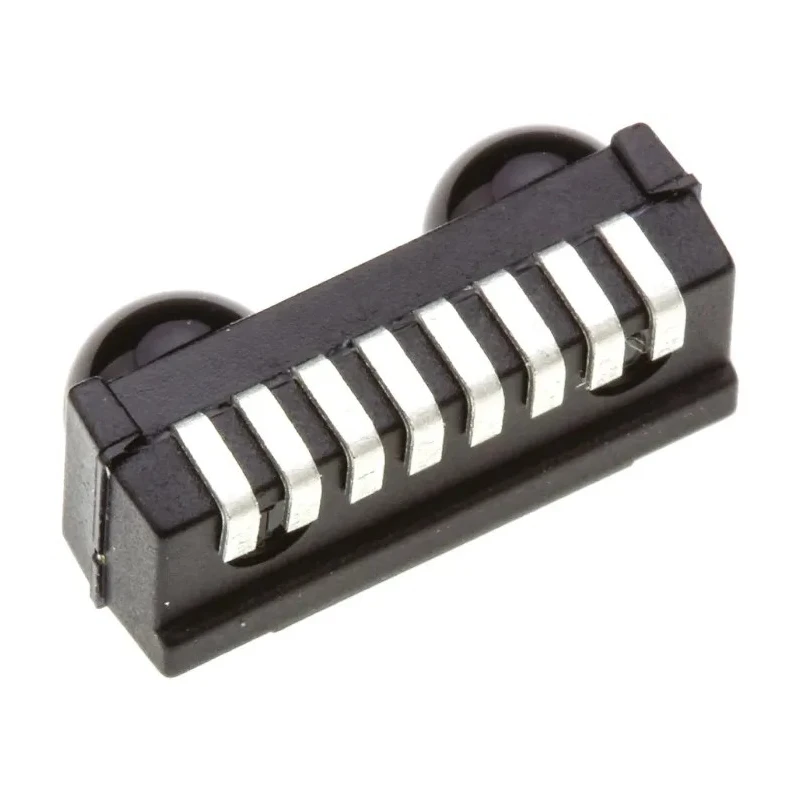

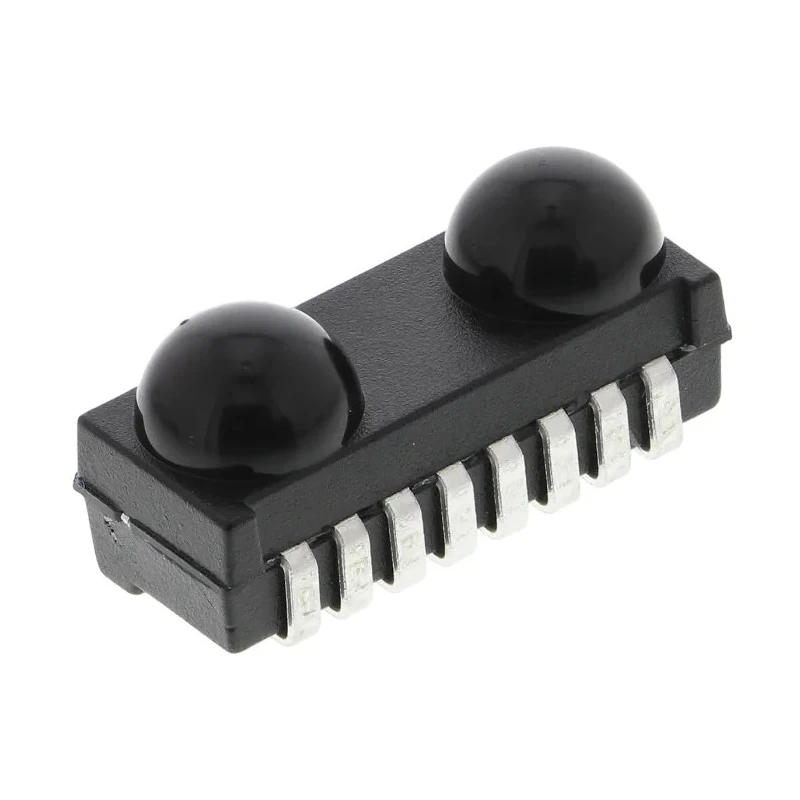

Vishay Infrared Transceiver Surface Mount Package 900 nm, 115.2 kbps, ±24 ° Emitter Angle TFDU4101-TT3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 4.7mm |
| Length | 9.9mm |
| Model | TFDU4101-TT3 |
| Packaging | Tape & Reel |
| Width | 4.2mm |
| Mount Type | Surface |
| Maximum transmission distance | 1m |
| Maximum Operating Temperature | 85°C |
| Package Type | Ultra Small Profile |
| Minimum Operating Temperature | -30°C |
| Number of Pins | 8 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | -0.5V |
| Supply Current | 70μA |
| Emitter Peak Wavelength | 900nm |
| Maximum Data Receiving Rate | 115.2kbps |
| Emitter Angle of Half Intensity | ±24 ° |
Key Features
- Supports data transmission distance up to 1 meter.
- Features ±24° emitter angle of half intensity for wide coverage.
- Operates with supply voltage from -0.5 V to 6 V.
- Compact ultra small profile package with dimensions 9.9 mm x 4.7 mm x 4.2 mm.
- Low supply current consumption of 70 μA ensures energy efficiency.
- Designed for surface mount applications with 8 pins.
- Compliance with IrDA protocol for reliable infrared communication.
- Operating temperature range from -30°C to 85°C for versatile environments.
Product Description
Vishay TFDU4101-TT3 infrared transceiver module delivers a complete front-end solution with integrated photo PIN diode, infrared emitter (IRED), and low-power control IC, packaged in a compact surface mount format measuring 9.9 mm length, 4.7 mm height, and 4.2 mm width. It supports infrared data association (IrDA) speeds up to 115.2 kbps with a maximum transmission distance of 1 meter, ideal for short-range wireless data communication.
The device operates on a split power supply with transmitter and receiver powered up to 6 V, featuring low power consumption including a power shutdown mode to conserve energy. Its ultra small profile and 8-pin configuration facilitate integration in compact electronic equipment such as remote controls, industrial sensors, and communication interfaces in office automation and consumer electronics.
With a ±24° half intensity emitter angle, it ensures a broad transmission beam coverage. The transceiver functions reliably across a wide temperature range of -30°C to 85°C, suitable for industrial, laboratory, and commercial applications. The tape and reel packaging supports high volume production requirements.
Supports data transmission distance up to 1 meter. Features ±24° emitter angle of half intensity for wide coverage. Operates with supply voltage from -0.5 V to 6 V. Compact ultra small profile package with dimensions 9.9 mm x 4.7 mm x 4.2 mm.
Low supply current consumption of 70 μA ensures energy efficiency. Designed for surface mount applications with 8 pins. Compliance with IrDA protocol for reliable infrared communication. Operating temperature range from -30°C to 85°C for versatile environments.
Includes integrated photo PIN diode, infrared emitter, and control IC within the module.
Recommended for use in electronics manufacturing, consumer electronics, industrial instrumentation, and automation systems requiring reliable infrared communication. For optimized assembly and high throughput, it is supplied in tape and reel packaging ready for pick-and-place surface mount technology lines.
Discover more electronic components in the IR Transceivers category at EnvMart for your specialized optoelectronics projects and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data receiving rate of this model is 115.2 kbps, supporting efficient infrared communication.
It supports a maximum transmission distance of up to 1 meter, making it suitable for short-range applications.
The dimensions of this infrared transceiver are 9.9 mm in length, 4.7 mm in height, and 4.2 mm in width.
It operates with a supply voltage ranging from -0.5 V to 6 V, accommodating various power supply configurations.
The emitter angle of half intensity is ±24°, providing a broad coverage for infrared transmission.
This infrared transceiver features an 8-pin configuration, designed for surface mount applications.
It is supplied in tape and reel packaging, which is suitable for high volume production and automated assembly processes.
The supply current consumption is 70 μA, ensuring energy efficiency during operation.
It is recommended for use in electronics manufacturing, consumer electronics, industrial instrumentation, and automation systems requiring reliable infrared communication.
This model complies with the IrDA protocol, ensuring reliable infrared communication across compatible devices.
The country of origin for this infrared transceiver is India.
