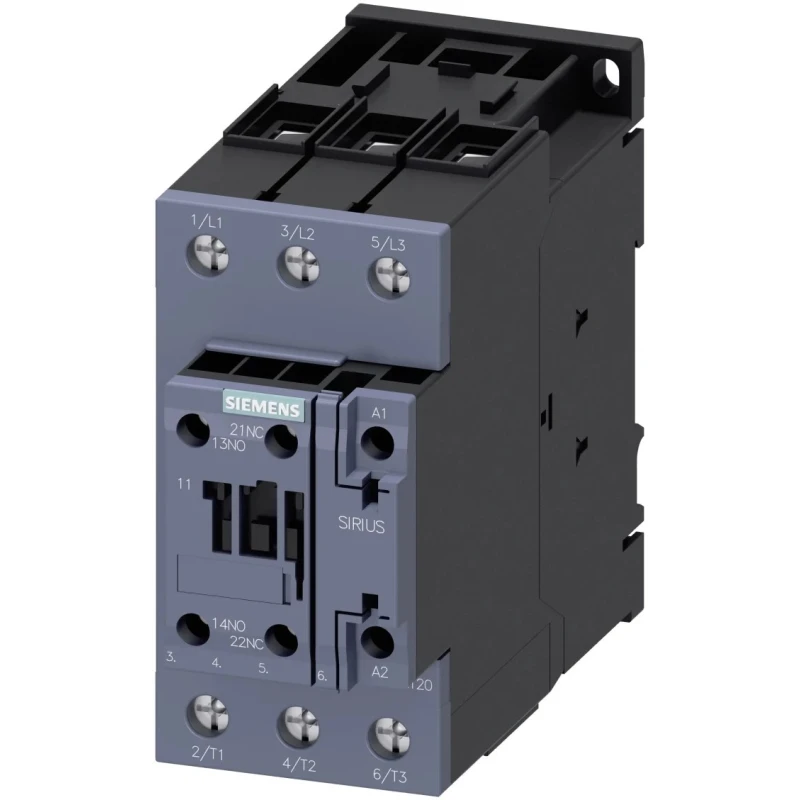

Siemens 3RT2038-1AF00 3RT2 Contactor, 110V AC Coil, 3-Pole, 90 A, 37 kW, 1 NO/1 NC, 690V AC
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Function | Motor Control |
| Length | 55mm |
| Model | 3RT2038-1AF00 |
| Depth | 130mm |
| Width | 114mm |
| Mount Type | DIN Rail |
| Series | 3RT2 |
| Power Rating | 37kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, RoHS, UKCA, UL, VDE |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 1 NO/1 NC |
| Better World Claim | Low Carbon Manufacture |
| Contact Current | 90A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 80A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3PST |
Key Features
- Designed for motor control with a DIN rail mount type for easy installation.
- Equipped with 1 normally open and 1 normally closed auxiliary contact for extended control.
- Supports contact voltage of up to 690V AC and operational current of 80A.
- Constructed to withstand mechanical shock and deliver a long service life with 10 million switching cycles.
- Compact dimensions (114 mm width × 55 mm length × 130 mm depth) save valuable panel space.
- Includes screw clamp terminal types for secure wiring connections.
- Operates reliably from -25°C to 60°C, suitable for varied industrial environments.
- Certified under multiple standards including CCC, CSA, EAC, RoHS, UKCA, UL, and VDE.
Product Description
Siemens 3RT2038-1AF00 3RT2 Contactor delivers reliable motor control performance with a 110V AC coil voltage and a 3-pole, 90 A contact current rating. This power contactor is engineered to handle a power rating of 37 kW at 110V AC and provides both normally open and normally closed auxiliary contacts (1 NO/1 NC configuration), enhancing its switching capabilities for complex applications.
Featuring a DIN rail mount design, it allows for straightforward installation and integration into industrial control panels. Its compact form factor of 114 mm (H) × 55 mm (L) × 130 mm (D) conserves space while maintaining robust mechanical endurance with a mechanical service life rated at 10 million switching cycles. Its screw clamp terminals ensure secure and firm connections essential in demanding electrical environments.
Designed to operate reliably across a broad temperature range from -25°C up to 60°C, the contactor is suitable for various industrial, manufacturing, HVAC, and automation applications. Siemens applied multiple international approvals to this device, including CCC, CSA, EAC, RoHS, UKCA, UL, and VDE certifications, underscoring its compliance and safety standards.
The auxiliary contacts provide essential functionality to monitor and expand the switching capacity, automatically changing state with the main contacts' operation. Siemens’ commitment to durable design and easy usability ensures this contactor meets the needs of demanding electrical control systems with low carbon manufacturing claims supporting sustainable industrial operations.
Motor control contactor with 110V AC coil voltage for industrial electrical circuits. 3 poles, 90 A contact current, and 37 kW power rating at 110V AC. Includes 1 normally open and 1 normally closed auxiliary contacts for extended control.
Compact DIN rail mounting with dimensions 114x55x130 mm for space-saving installations. Durable mechanical service life of 10 million switching cycles for long-term performance. Rated for operation from -25°C to 60°C, suitable for harsh environments.
Certified to global standards including CCC, CSA, EAC, RoHS, UKCA, UL and VDE. Manufactured in Germany ensuring high quality and reliability. Discover reliable Siemens Contactors for your industrial applications on EnvMart, the trusted platform for electrical automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 37 kW at 110V AC.
It supports a maximum contact voltage of 690V AC.
The operational current rating is 80A.
The dimensions are 114 mm in width, 55 mm in length, and 130 mm in depth.
It uses a DIN rail mount type for easy installation.
The mechanical service life is rated at 10 million switching cycles.
It operates reliably within a temperature range of -25°C to 60°C.
This contactor has 3 poles.
It includes 1 normally open and 1 normally closed auxiliary contact (1 NO/1 NC).
It is certified under CCC, CSA, EAC, RoHS, UKCA, UL, and VDE standards.
It uses screw clamp terminals for secure wiring connections.
It is designed for motor control applications in industrial environments.
