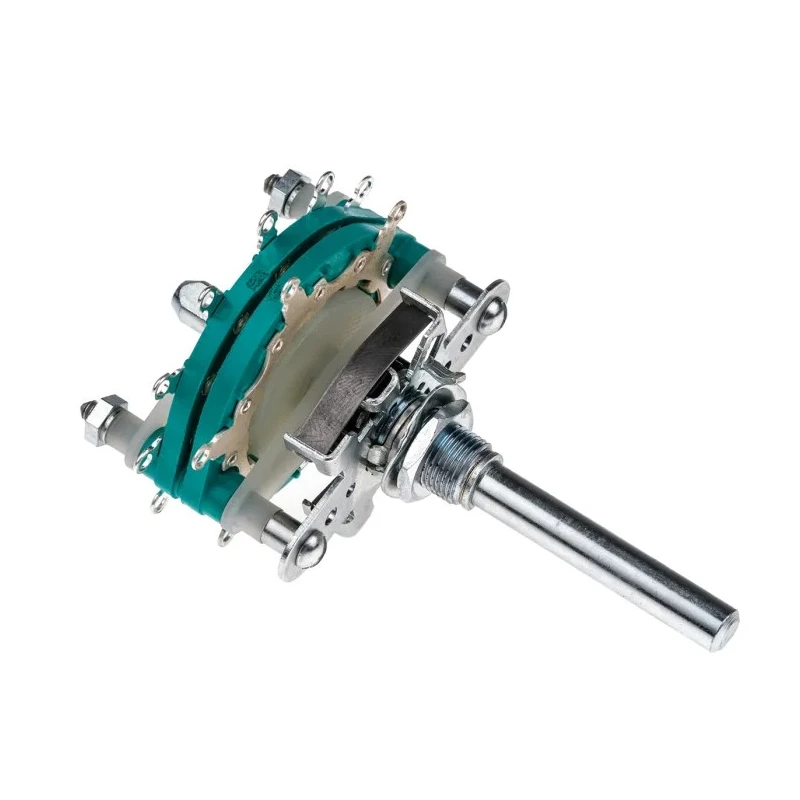

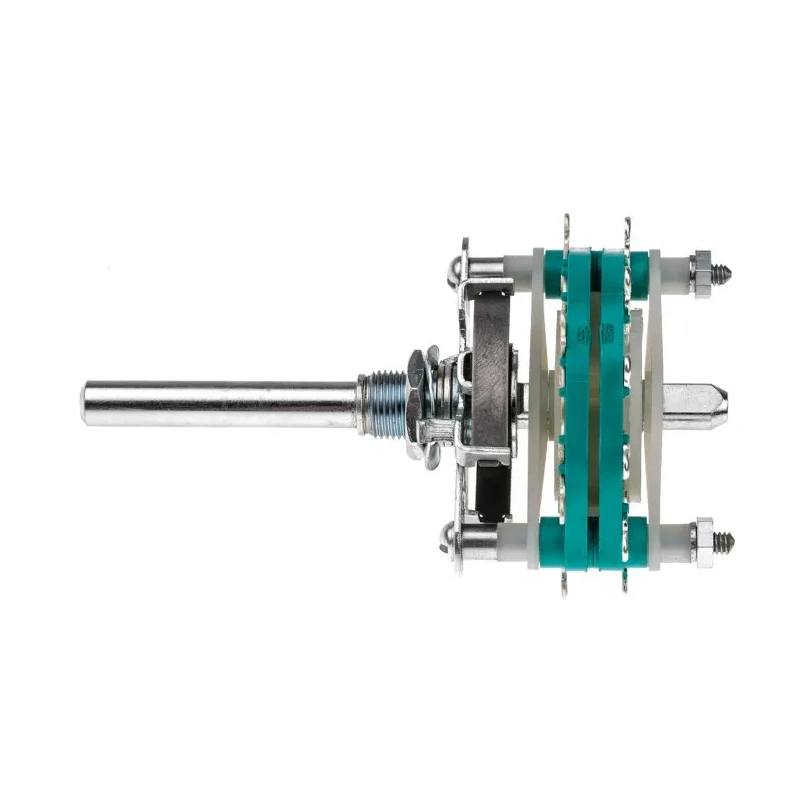

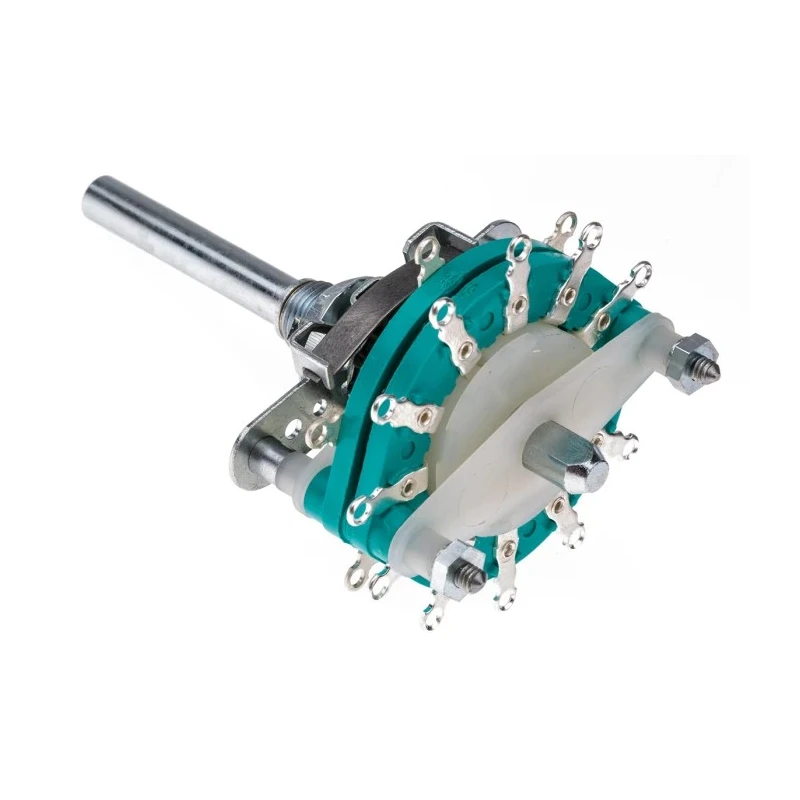

NSF Heavy Duty 12 Position SP12T Rotary Switch 6A, Zinc Plated Panel Mount SP12T
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 49.2mm |
| Brand | NSF |
| Height | 29.4mm |
| Model | SP12T |
| Depth | 39.7mm |
| Width | 47.6mm |
| Mount Type | Panel |
| Housing Material | Zinc Plated |
| Series | MSD |
| Contact Configuration | SP12T |
| Number of Positions | 12 |
| Switch Configuration | 2 to 12 Ways |
| Terminal type | Solder |
| Contact Resistance | 5mΩ |
| Maximum dc Voltage | 30V dc |
| Number of Poles | 1 |
| Standards/Approvals | RoHS |
| Switch Operation | Rotary |
| Switch Contact Current | 6A |
| Mechanical Life | 5000Cycles |
| Maximum AC Voltage | 250V ac |
| NSF MSD, 6 Position DP6T Rotary Switch, 6A, SolderBrand | NSF |
Key Features
- The switch is panel mount type with solder terminals for durable connections.
- It features zinc plated housing material for corrosion resistance.
- Mechanical life expectancy is rated at 5000 cycles ensuring operational durability.
- Suitable for AC voltage up to 250V and DC voltage up to 30V applications.
- The switch diameter is 49.2mm with a depth of 39.7mm and width of 47.6mm.
- It includes heavy duty spring loaded break-before-make wiping contacts for high reliability.
- Its contact resistance is low at 5 milliohms for efficient switching performance.
- The spindle diameter is 0.25 inches with a flat to facilitate mounting.
Product Description
NSF SP12T is a heavy duty rotary wafer switch designed for mains rated 6 amp high current operations. It is a rotary switch with a 12 position single pole twelve throw contact configuration, ideal for various industrial and commercial electrical control applications.
The switch is panel mounted and equipped with solder terminals to ensure secure electrical connections. Its zinc plated housing provides robust mechanical protection and corrosion resistance, suitable for demanding environments.
This rotary switch features heavy duty spring loaded break-before-make wiping contacts to minimize contact wear and ensure long service life rated at 5000 mechanical cycles. The low contact resistance of 5 milliohms enhances operational efficiency.
Operational voltages include a maximum of 250V AC and 30V DC, making it versatile for AC and DC circuit switching. Physical dimensions include a diameter of 49.2mm, depth of 39.7mm, width of 47.6mm, and height of 29.4mm, making it compact for panel integration.
The MSD series rotary switch supports 12 positions with adjustable rotation limit stops. The spindle diameter of 0.25 inches with a flat provides firm control during operation. RoHS compliant ensuring environmental safety standards compliance.
Manufactured in the United Kingdom. This NSF SP12T rotary switch is commonly used in industrial automation, electrical panels, control systems, and machinery requiring reliable multi-position selection switches. Explore more Rotary Switches and electrical components suitable for your industrial or commercial equipment needs with EnvMart’s extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NSF Heavy Duty 12 Position SP12T Rotary Switch can handle a maximum AC voltage of 250V and a maximum DC voltage of 30V.
This model has a mechanical life expectancy rated at 5000 cycles, ensuring operational durability.
The switch has a diameter of 49.2mm, a depth of 39.7mm, a width of 47.6mm, and a height of 29.4mm.
It features 12 positions in its single pole twelve throw contact configuration.
The switch is equipped with solder terminals for secure electrical connections.
The contact resistance of this rotary switch is low at 5 milliohms, enhancing operational efficiency.
It features a zinc plated housing material, providing corrosion resistance and mechanical protection.
The spindle diameter is 0.25 inches, with a flat design to facilitate mounting.
This model is commonly used in industrial automation, electrical panels, control systems, and machinery requiring reliable multi-position selection switches.
This rotary switch is RoHS compliant, ensuring it meets environmental safety standards.
The SP12T is operated as a rotary switch, allowing for multi-position selection.
This rotary switch is manufactured in the United Kingdom.
