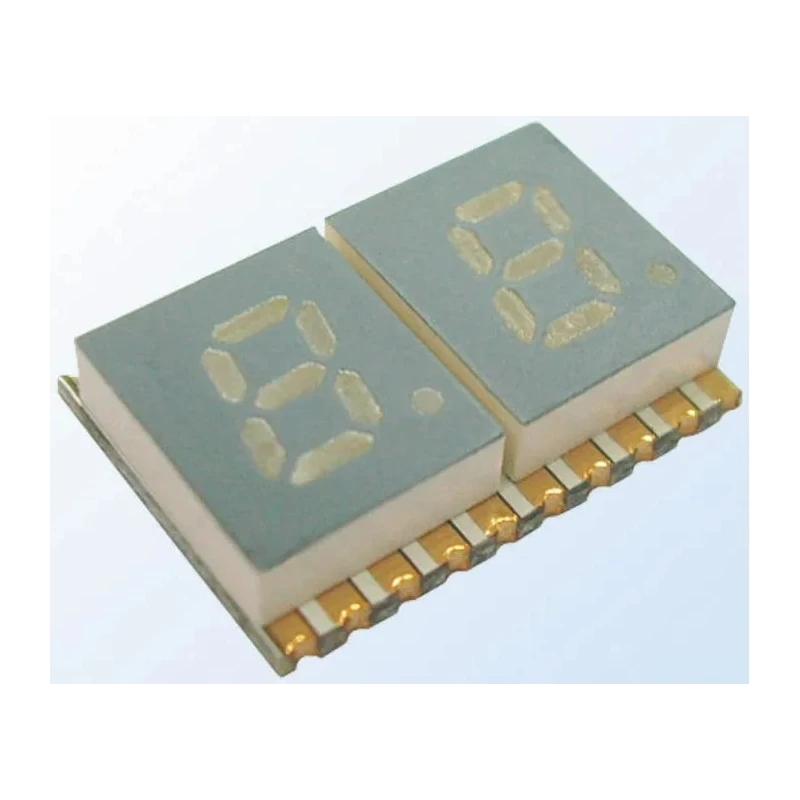

Kingbright Dual Digit 2-Digit 7 Segment LED Display Orange Cathode 5.1mm Character Height KCDC02-106
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCDC02-106 |
| Mount Type | Surface |
| Character height | 5.1mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 14.1mm |
| External Depth | 3mm |
| External Height | 10mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 37mcd |
| Standards/Approvals | RoHS |
| LED Colour | Orange |
| Dominant Wavelength | 601nm |
| Colour of Face | Grey |
| Forward Voltage | 2.1V |
| Forward Current | 30mA |
| Number of Characters | 2 |
| Character Width | 3.2mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- The display features dual characters with a 7 segment configuration.
- Each character is 5.1 mm high for clear readability.
- Operating temperature range from -40°C to 85°C ensures reliability in harsh conditions.
- Surface mount type with cathode common connection simplifies PCB integration.
- Rated luminous intensity of 37mcd provides excellent character visibility.
- Low forward voltage of 2.1V and power dissipation of 75mW maximizes energy efficiency.
- Decimal point orientation is on the right side for standard numeric representation.
- The grey face and orange LED colour offer high contrast and ease of reading.
Product Description
Kingbright KCDC02-106 is a dual digit 7 segment LED display featuring an orange LED colour and a character height of 5.1 mm, designed for reliable electronic display usage. This surface mount LED display offers a common cathode connection and a clear grey face that enhances contrast and visibility.
The display’s external dimensions measure 14.1 mm in width, 10 mm in height, and 3 mm in depth, making it compact for space-constrained electronic devices.
Operating in a wide temperature range from -40°C to 85°C, this LED display is suitable for industrial, laboratory, electronic, and manufacturing applications requiring durable numeric presentation.
The LED display consists of 2 characters with 7 segments each, providing accurate numeric representation. The forward voltage is 2.1V with a forward current of 30mA ensuring energy efficient operation. Luminous intensity of 37 millicandela ensures excellent visibility under various lighting conditions.
The decimal point is oriented on the right side for conventional number formatting. This product is RoHS compliant, affirming its adherence to environmental standards. Suitable for use in electronic components, industrial displays, instrumentation panels, and other electronic assembly applications.
The display is manufactured in China and supplied as new with high mechanical ruggedness and easy PCB mounting features. Explore more LED Display modules and industrial electronic components at EnvMart for comprehensive selection and quality assurance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this display is 5.1 mm, which ensures clear readability.
The luminous intensity of the KCDC02-106 is rated at 37 millicandela, providing excellent visibility.
It features a common cathode connection, simplifying the integration into PCBs.
The external dimensions are 14.1 mm in width, 10 mm in height, and 3 mm in depth.
The forward voltage is 2.1V with a forward current of 30mA, ensuring energy-efficient operation.
The decimal point is oriented on the right side, which is standard for numeric representation.
Yes, the KCDC02-106 is RoHS compliant, adhering to environmental standards.
This model is suitable for use in electronic components, industrial displays, instrumentation panels, and other electronic assembly applications.
The display features an orange LED color, which enhances visibility against its grey face.
The power dissipation for the KCDC02-106 is rated at 75mW, maximizing energy efficiency.
