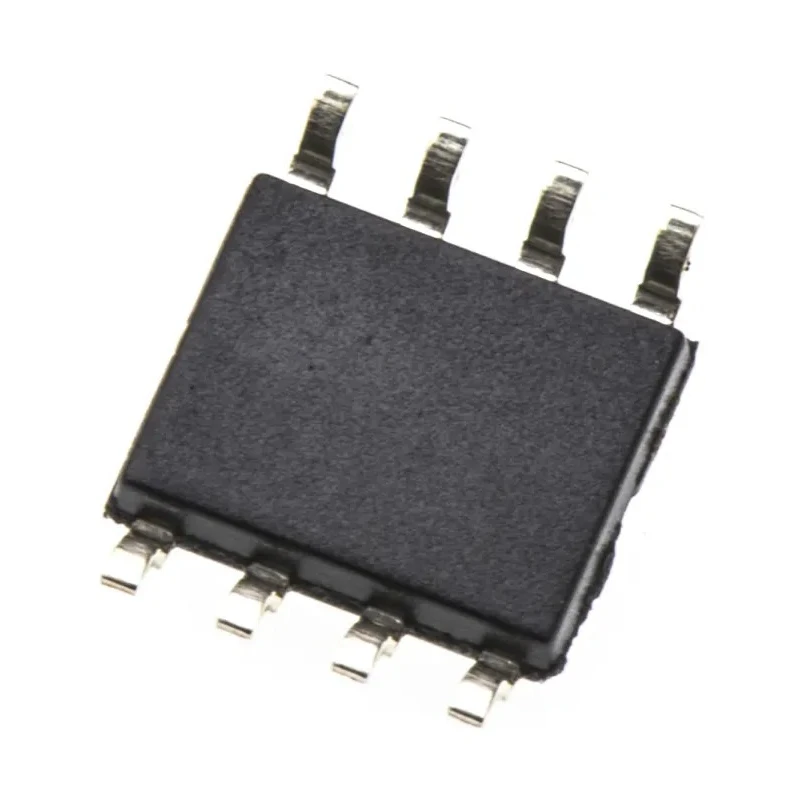

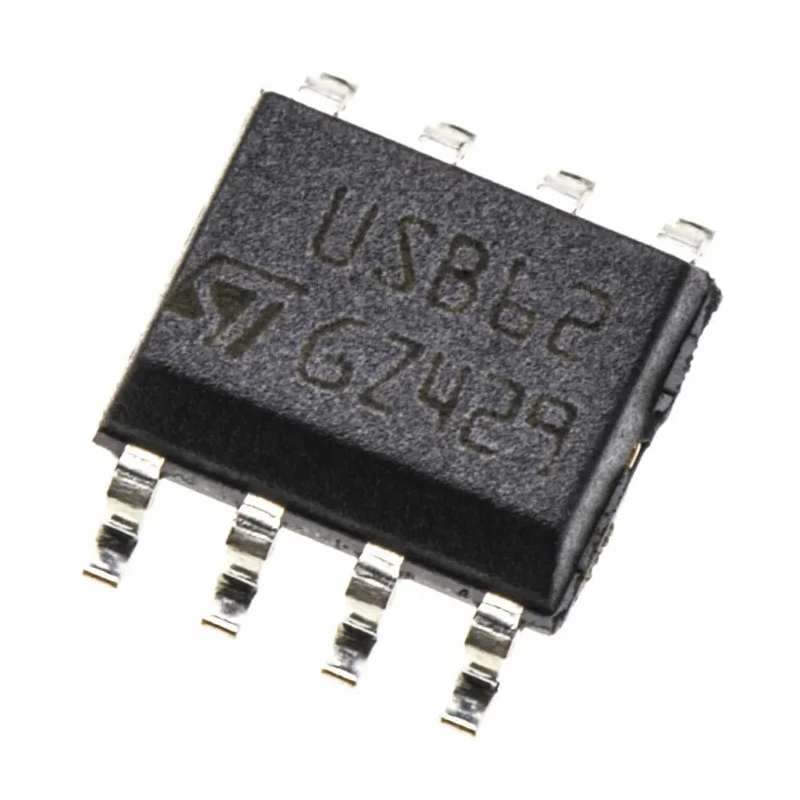

STMicroelectronics 2-Element Bi-Directional TVS Diode Array 500 W Peak Pulse Power 8-Pin SOIC USB6B1RL

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 2-Element Bi-Directional TVS Diode Array 500 W Peak Pulse Power 8-Pin SOIC USB6B1RL

Name: STMicroelectronics 2-Element Bi-Directional TVS Diode Array 500 W Peak Pulse Power 8-Pin SOIC USB6B1RL
Brand: STMicroelectronics
SKU: 116497



Category TVS Diode Array Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.25mm
Length	5mm
Model	USB6B1RL
Width	4mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Pin Count	8
Number of Elements per Chip	2
Diode Configuration	Complex Array
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	6V
Maximum Reverse Stand-off Voltage Vwm	5.2V
Peak Pulse Power Dissipation Pppm	500W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	40A
Maximum Reverse Leakage Current	10μA
Electrostatic Discharge (ESD) prtotection for	DVI, HDMI, IEEE1394, USB, Ethernet & video lines

Key Features

Designed for electrostatic discharge (ESD) protection on data lines including DVI, HDMI, IEEE1394, USB, Ethernet, and video.
Features complex diode configuration with bi-directional direction type for enhanced circuit safety.
Minimum breakdown voltage of 6 V and maximum reverse stand-off voltage of 5.2 V ensures reliable transient voltage suppression.
Offers peak pulse current of 40 A and peak pulse power dissipation of 500 W for robust protection capability.
Compact SOIC surface mount package with 8 pins, measuring 5 mm length, 4 mm width, and 1.25 mm height.
Wide operating temperature range from -40°C to 85°C suitable for harsh industrial environments.
Ultra-low capacitance device ideal for high-speed data line protection with minimal signal distortion.
Complies with IEC61000-4-2 level 4 standard for ESD protection performance.

Product Description

STMicroelectronics USB6B1RL is a high-performance 2-element bi-directional TVS (Transient Voltage Suppressor) diode array engineered for transient voltage and electrostatic discharge protection on complex electronic systems. This device is specifically designed for data lines used in DVI, HDMI, IEEE1394, USB, Ethernet, and video applications, providing robust safeguarding against voltage spikes.

Featuring a complex diode array configuration, the USB6B1RL offers bi-directional protection capable of handling transient voltages up to 6 V minimum breakdown voltage with a maximum reverse stand-off voltage of 5.2 V. It delivers a peak pulse power dissipation rating of 500 W and maximum peak pulse current of 40 A, enabling strong suppression of voltage surges and spikes to enhance circuit reliability.

Its compact 8-pin SOIC surface mount package measures 5 mm in length, 4 mm in width, and 1.25 mm in height, facilitating easy PCB mounting while maintaining minimal footprint. With operating temperature tolerance from -40°C to +85°C, this TVS diode array is suitable for demanding industrial, laboratory, telecommunications, and consumer electronics environments.

The ultra-low capacitance nature of this device ensures signal integrity in high-speed data lines by minimizing added noise and ensuring compliance with IEC61000-4-2 level 4 ESD protection standards. It is intended for use in transient voltage spike suppression applications on serial data buses and sensitive communication interfaces requiring reliable and fast-acting protection.

Electrostatic discharge protection designed for DVI, HDMI, IEEE1394, USB, Ethernet, and video data lines. Bi-directional transient voltage suppression with ultra-low capacitance suitable for high-speed digital interfaces.

8-pin SOIC surface mount package with compact dimensions to suit modern PCB layouts. High peak pulse power and current handling capabilities ensure robustness to power surges and spikes. Wide temperature range for stable operation in diverse environmental conditions.

Complies with IEC61000-4-2 level 4 for electrostatic discharge protection performance. Ideal protection solution for telecommunications, computing, industrial, and consumer electronics applications.

This STMicroelectronics USB6B1RL 2-element bi-directional TVS Diode Array is a high-quality, reliable industrial electronic component designed to protect sensitive data and power lines from damaging transient voltage events. It supports improved device longevity and system reliability in critical embedded systems.

Explore more electronic and semiconductor components with EnvMart to find the perfect industrial-grade solutions for your designs and manufacturing requirements.
