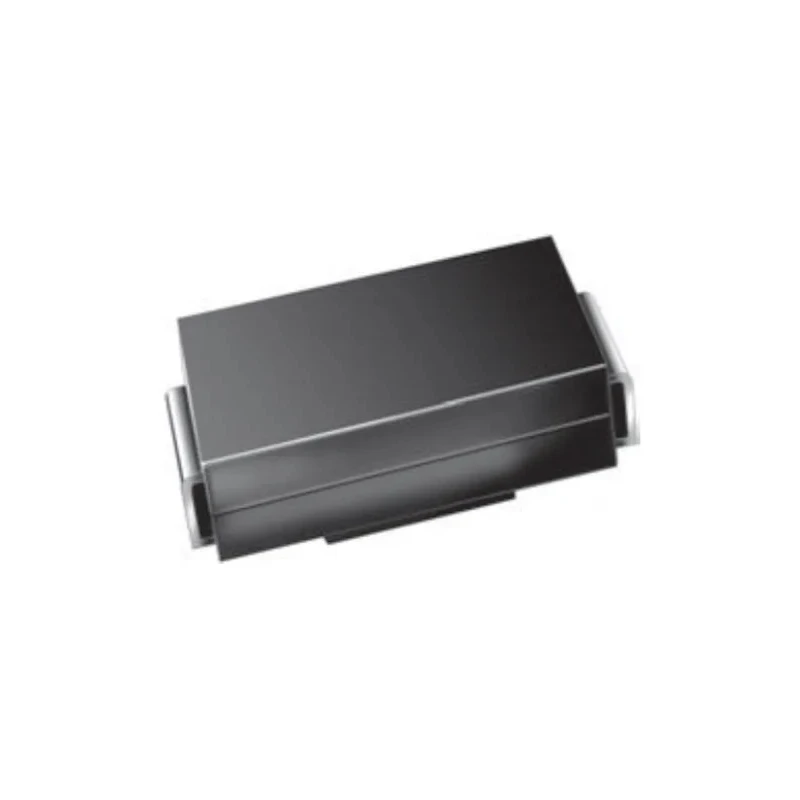

Vishay Bi-Directional TVS Diode 300 W Surface Mount DO-214AC SMAJ130CAHM3_A/H

The Vishay SMAJ130CAHM3_A/H is a Bi-Directional Transient Voltage Suppression (TVS) Diode designed to safeguard electronic components from transient voltage spikes and surges, commonly caused by inductive load switching and lightning events. Its surface mount DO-214AC (SMA) package combines a compact size with robust protection capabilities suitable for surface mount PCB assembly.

Operating efficiently with a peak pulse power dissipation of 300 W and peak pulse current of 209 A, it ensures reliable clamping with a clamping voltage of 209 V, protecting circuits from damaging voltage levels. The diode features a minimum breakdown voltage of 144 V and a maximum reverse stand-off voltage of 130 V, providing precise transient voltage clamping for sensitive electronics.

Its operating temperature range extends from -65°C to 150°C, allowing usage in diverse environmental conditions. Low maximum reverse leakage current of 1 μA minimizes power loss, and fast response time improves transient suppression. The device meets RoHS compliance and holds AEC-Q101 automotive standard certification, making it suitable for automotive as well as industrial-grade applications.

This diode is specifically suited for protecting integrated circuits (ICs), MOSFETs, signal lines in sensor units, and other sensitive electronic components in consumer electronics, computer hardware, industrial machinery, automotive electronics, and telecommunication devices.

Features such as glass passivation, very fast response time, and low incremental surge resistance enhance its reliability and durability in transient voltage protection roles. This product aligns with modern assembly processes due to its low-profile and surface mount design.

Provides 300 W pulse power dissipation and robust transient voltage protection. Surface mount DO-214AC (SMA) package for easy automated PCB placement. Bidirectional functionality safeguards circuits from positive and negative voltage spikes.

Wide operating temperature range from -65°C to 150°C. Low leakage current and fast transient response improve circuit reliability. AEC-Q101 automotive qualified and RoHS compliant for high-quality standards. Clamping voltage of 209 V and breakdown voltage of 144 V for accurate protection.

Suitable for industrial, automotive, consumer electronics, telecommunication, and computer applications. Glass passivated chip junction ensures device stability and reliability. Explore our catalogue for high-performance TVS Diodes and precise semiconductor devices for your industrial and electronic design needs at EnvMart.
