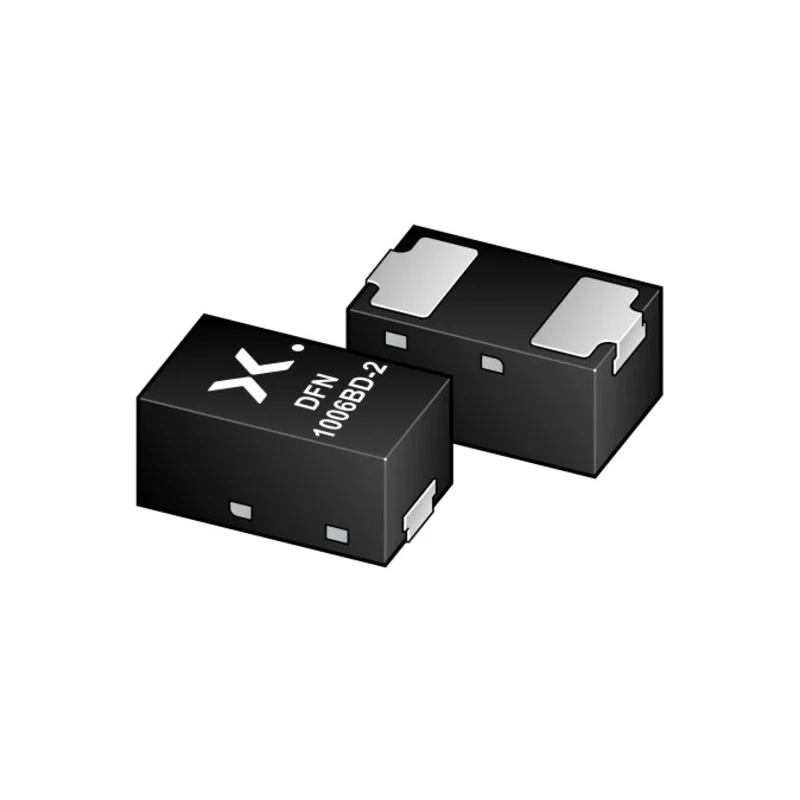

Nexperia 1.2 V Zener Diode Single 365 mW 5% Surface Mount 2-Pin DFN1006BD-2 BZX8850S-C2V0YL

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 1.2 V Zener Diode Single 365 mW 5% Surface Mount 2-Pin DFN1006BD-2 BZX8850S-C2V0YL

Name: Nexperia 1.2 V Zener Diode Single 365 mW 5% Surface Mount 2-Pin DFN1006BD-2 BZX8850S-C2V0YL
Brand: Nexperia
SKU: 115455
Price: 0.08 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.47mm
Length	1mm
Model	BZX8850S-C2V0YL
Mount Type	Surface
Series	BZX8850S
Maximum Operating Temperature	150°C
Working voltage range	nominal 1.8 V to 75 V
Package Type	DFN1006BD-2
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	365mW
Diode Configuration	Single
Test Current It	50μA
Maximum Reverse Leakage Current	7μA
Nominal Zener Voltage Vz	2V
Zener Type	Voltage Regulator
Maximum Zener Impedance	600Ω
Typical Voltage Temperature Coefficient	-3.5mV/K

Key Features

The diode features a nominal Zener voltage of 2 V with a tolerance of ±5%.
It supports a maximum power dissipation of 365 mW suitable for low current regulation.
Package type is compact DFN1006BD-2 with side-wettable flanks for reliable surface mounting.
Operating temperature ranges from -55°C to 150°C, ensuring robust performance under varied conditions.
Test current is 50 μA with maximum reverse leakage current of 7 μA.
The device complies with automotive standard AEC-Q101 for quality assurance.
Its small form factor makes it ideal for portable battery-powered circuits and low bias applications.
The typical voltage temperature coefficient is -3.5 mV/K, providing stable voltage across temperature changes.

Product Description

Nexperia BZX8850S-C2V0YL is a single Zener diode designed for voltage regulation with a nominal voltage of 2 V and maximum power dissipation of 365 mW. Packaged in an ultra-small DFN1006BD-2 surface mount device, it is suited for compact electronic designs and low power applications.

This diode features a robust temperature range from -55°C to 150°C, enabling reliable operation in harsh environments such as automotive, industrial, and portable electronics. It exhibits a stable voltage regulation with a typical temperature coefficient of -3.5 mV/K and has a tolerance of ±5% on the Zener voltage.

The compact 2-pin DFN1006BD-2 package with side-wettable flanks offers exceptional solderability for automated assembly processes. The maximum reverse leakage current of 7 μA and test current of 50 μA make it ideal for low bias circuits.

Its compliance with AEC-Q101 automotive standards ensures suitability for demanding automotive electronic systems requiring stringent quality and reliability. Nominal Zener voltage: 2 V with ±5% tolerance. Maximum power dissipation: 365 mW for low power applications.

Compact DFN1006BD-2 surface mount package. Wide operating temperature range: -55°C to 150°C. Low test current of 50 μA and maximum reverse leakage current of 7 μA. Automotive standard AEC-Q101 compliant. Typical voltage temperature coefficient -3.5 mV/K ensures voltage stability.

Ideal for voltage regulation in portable and battery-powered electronics.

This Zener diode is primarily used in industrial, automotive, laboratory, and manufacturing applications requiring precise voltage regulation in compact PCB layouts. Its surface mount design facilitates high-density circuit integration.
