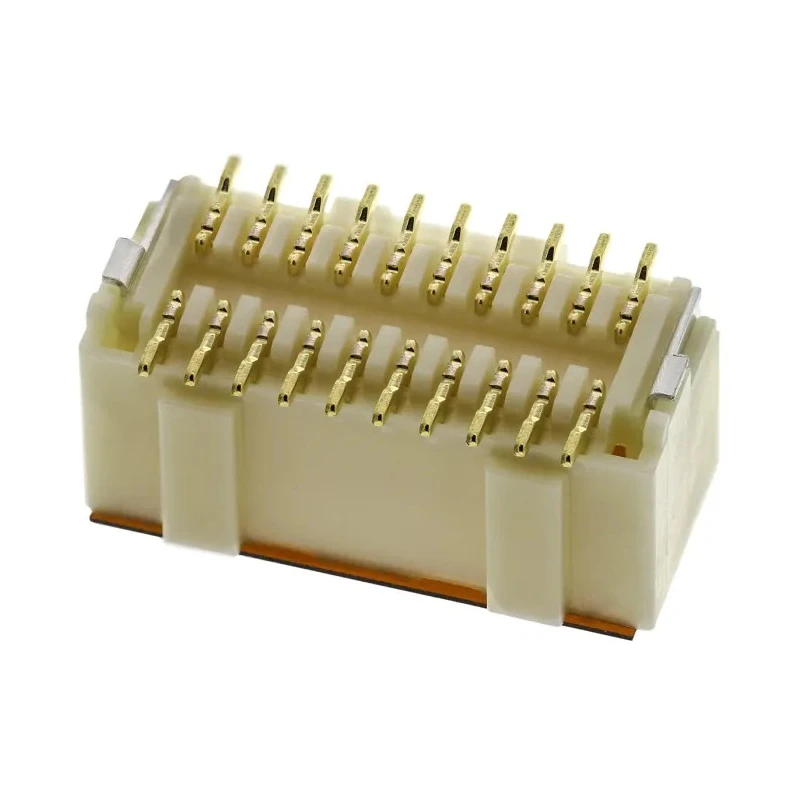

Molex Pico-Clasp Series Straight Surface PCB Header 20 Contacts 1 mm Pitch 2 Row Shrouded 501190-2017

The Molex 501190-2017 PCB Header belongs to the Pico-Clasp series of straight surface mount dual row wire-to-board connectors with a 1.00 mm pitch. This connector incorporates 20 male contacts made from gold-plated phosphor bronze, ensuring enhanced conductivity and corrosion resistance for reliable signal transmission in electronic assemblies.

Constructed with a thermoplastic housing made from UL 94V-0 nylon, this shrouded header offers mechanical protection and alignment features including molded guides and an inner positive lock. It is specifically designed for applications requiring compact, high-density interconnections such as flat panel displays, notebook PCs, and other compact electronic devices.

The connector can withstand operating temperatures from -40°C to 105°C and supports a nominal voltage of 50V and current of 1A, making it suitable for low power PCB applications. Its surface mount design with solder termination ensures secure, stable placement on PCB substrates.

This product complies with key international standards including EU RoHS, Low-Halogen, REACH SVHC, and UL E29179, ensuring environmental and safety compliance for industrial and commercial electronics manufacturing.

The dual row 1mm pitch configuration and shrouded style provide easy integration with compatible wire-to-board housings such as the Molex 501189 series, facilitating versatile mating options for system designers.

The Pico-Clasp series offers compact, reliable wire-to-board connectivity. Features a thermoplastic housing with UL 94V-0 nylon construction for durability. Gold-plated phosphor bronze contacts ensure excellent electrical performance.

Designed for use in flat panel displays, notebook PCs, and compact device assemblies. Supports a current rating of 1 Amp at 50 Volts for low power applications. Includes a positive inner lock mechanism and molded guides for polarized mating.

Rated for operation from -40°C up to a maximum of 105°C. Mount type is surface mount with solder termination and male contact gender. Compliant with EU RoHS, Low-Halogen, REACH SVHC, and UL E29179 standards. Pitch between rows and contacts is 1 mm, with a dual row format.

This product is ideal for industrial, commercial, electronics manufacturing, and laboratory applications requiring miniature, reliable PCB interconnect solutions. Explore more high-quality PCB Headers and connectors from Molex in the EnvMart electronics components category for diverse industrial needs.
