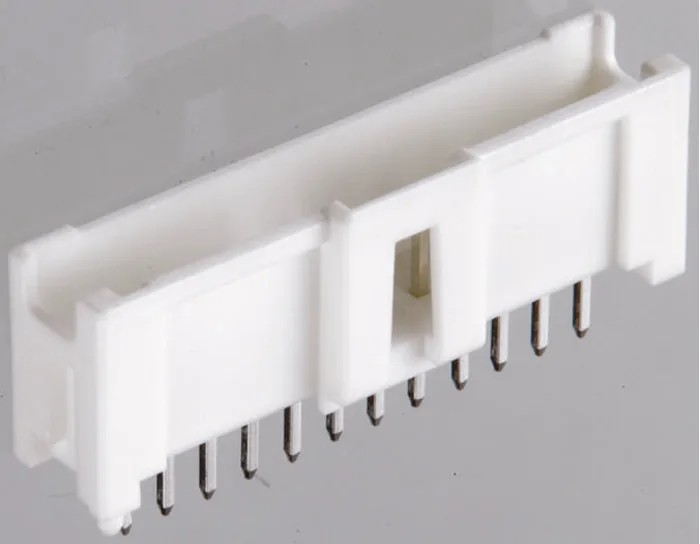

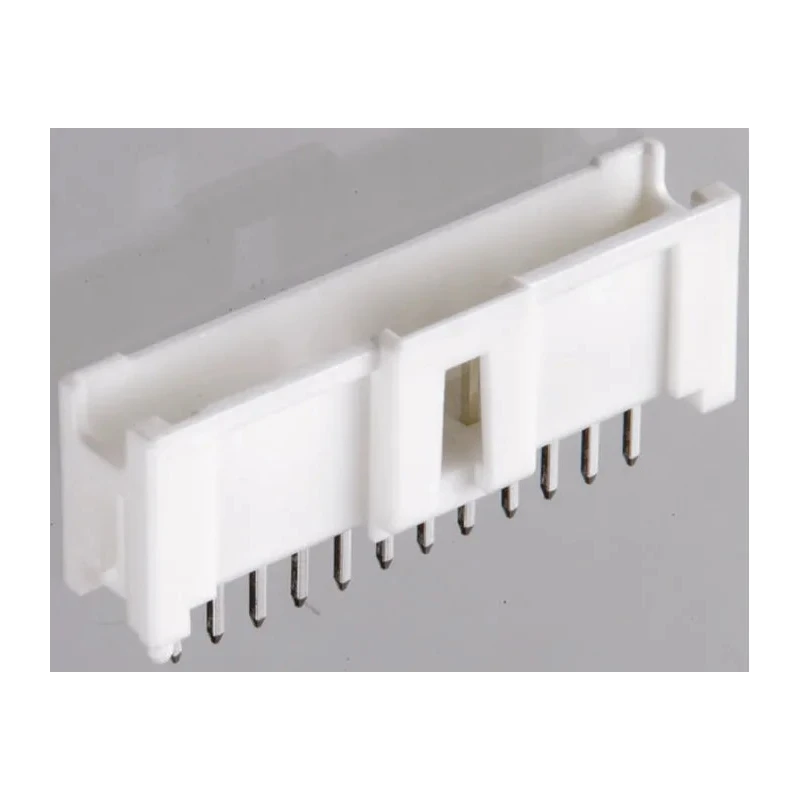

Molex MicroClasp Series Straight Through Hole PCB Header 8 Contact 2 mm Pitch 1 Row Shrouded 55932-0810
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Tin |
| Series | MicroClasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance system |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 2mm |
Key Features
- The 2.00 mm pitch provides space savings over typical wire-to-board systems.
- Each header carries a maximum current of 3 amperes.
- Housing material is durable polyester, ensuring long-term stability.
- Features a unique inner positive lock for secure retention and audible mating click.
- Contact and plating materials are tin for reliable electrical connectivity.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Designed for through-hole mounting with solder termination for strong PCB attachment.
- Male contact gender with tail pin length of 3.2 mm and mating pin length of 2 mm.
Product Description
Molex 55932-0810 MicroClasp Series Straight Through Hole PCB Header offers a compact and reliable solution for wire-to-board connections with an 8-contact configuration arranged in a single row at a 2 mm pitch.
The product features a shrouded housing made from polyester, enhancing mechanical protection and board stability in electronic components. Its tin-plated male contacts provide low insertion force and secure electrical continuity.
Designed to handle up to 3 amperes of current and operate over a wide temperature range (-40°C to 105°C), this header is suitable for various industrial electronics applications including manufacturing and assembly of printed circuit boards.
The unique inner positive lock mechanism delivers secure retention with an audible click to confirm proper mating, reducing assembly errors and improving production efficiency.
This PCB header utilizes a through-hole mount type with solder termination, ensuring a robust mechanical and electrical connection ideal for industrial, commercial, and laboratory electronic equipment.
The 2.00 mm pitch reduces board space requirements compared to typical wire-to-board connectors. Housing polyester material provides excellent mechanical strength and thermal stability. Contact and plating are tin to ensure good conductivity and prevent corrosion.
Temperature ratings support reliable operation in harsh environments. Male contact with 3.2 mm tail pin and 2 mm mating pin lengths support precise and secure fitment. Single-row configuration simplifies layout and minimizes footprint.
Manufactured in Japan, this product conforms to high-quality standards but does not carry specific certification approvals. Find more PCB Headers and connectors in the Electronics Components category on EnvMart for advanced industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header can carry a maximum current of 3 amperes.
The contact pitch for this model is 2 mm.
It operates reliably in temperatures ranging from -40°C to 105°C.
This header is designed for through-hole mounting with solder termination.
The housing is made of durable polyester, and the contacts are tin-plated for reliable electrical connectivity.
This model features 8 contacts arranged in a single row.
The tail pin length for the male contacts is 3.2 mm.
Yes, it features a unique inner positive lock for secure retention and an audible mating click.
The voltage rating for this PCB header is 250V.
This PCB header is shrouded, providing enhanced mechanical protection.
This product is manufactured in Japan.
It utilizes a wire-to-board connector system.
