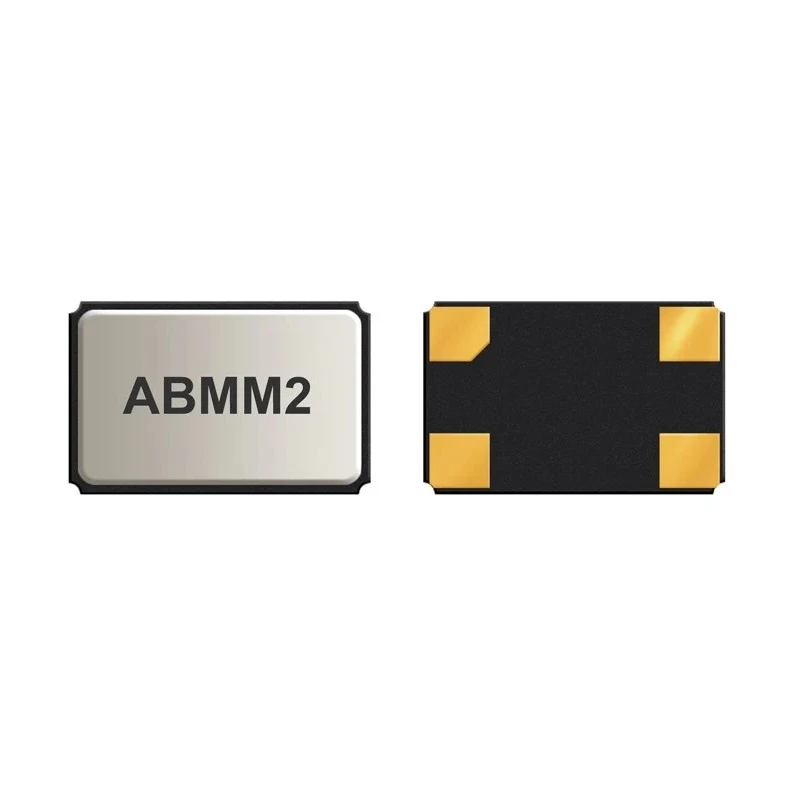

Abracon 8 MHz Crystal Unit ±20 ppm Frequency Tolerance Surface Mount 4-Pin 1.2 mm Height 6 mm Length 3.5 ABMM2-8.000MHZ-D1-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.2mm |
| Length | 6mm |
| Model | ABMM2-8.000MHZ-D1-T |
| Packaging | Tape & Reel |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | ABmm² |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 8MHz |
| Load Capacitance | 18pF |
| Series Resistance | 72Ω |
Key Features
- The crystal unit features a surface mount package with 4 pins for efficient PCB integration.
- Equipped with 18 pF load capacitance ensuring stable oscillation frequency.
- Operating temperature ranges from -10°C up to 60°C, suitable for a range of environments.
- Equivalent Series Resistance (ESR) is rated at 72 ohms, ensuring minimal signal loss.
- Compliant with RoHS standards, suitable for electronics industry requirements.
- Package type is tape and reel, optimized for automated pick-and-place assembly.
- Reliable for use in computers, modems, microprocessors, communication devices, and test equipment.
Product Description
The Abracon ABMM2-8.000MHZ-D1-T is an 8 MHz crystal unit designed for surface mount applications, featuring a low profile ceramic package with 4 pins. This crystal offers ±20 ppm frequency tolerance and ±20 ppm frequency stability, making it highly reliable for precise timing applications within electronic circuits.
It operates across a temperature range of -10°C to 60°C, ensuring consistent performance in various operating environments. The device has a load capacitance of 18 pF and an equivalent series resistance (ESR) of 72 ohms, which facilitates stable and efficient oscillation.
This crystal unit comes housed in a compact 6 mm by 3.5 mm package with a maximum height of 1.2 mm. The tape and reel packaging format enhances suitability for automated assembly lines and mass production.
Ideal uses include incorporation into computers, modems, microprocessors, communication systems, and various types of test and measurement equipment. The surface mount nature, combined with the ceramic construction and seam sealed package, assures high reliability and longevity.
The crystal supports a broad operating temperature range ensuring versatility in multiple industrial settings. RoHS compliance guarantees environmentally safe manufacturing and disposal standards. Its tight frequency tolerances enable use in applications demanding precise frequency control.
Suitable for automated PCB assembly due to tape and reel packaging. Compact dimensions allow integration into miniature and space-constrained electronic devices. Sturdy ceramic package minimizes susceptibility to mechanical stress and environmental contaminants.
This product represents a reliable choice for engineers and designers requiring precise frequency control in industrial, telecommunications, and computing applications. Browse more Crystal Units at EnvMart for complementary components and expand your electronic design possibilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The frequency tolerance of this crystal unit is ±20 ppm, ensuring reliable performance in timing applications.
It features a load capacitance of 18 pF, which helps maintain stable oscillation frequency.
This crystal unit has dimensions of 6 mm in length, 3.5 mm in width, and a height of 1.2 mm.
The equivalent series resistance (ESR) is rated at 72 ohms, which minimizes signal loss during operation.
It operates within a temperature range of -10°C to 60°C, making it suitable for various environments.
The crystal unit is packaged in a tape and reel format, optimized for automated pick-and-place assembly.
This model supports surface mount installation, allowing for efficient integration onto PCBs.
It is ideal for use in computers, modems, microprocessors, communication devices, and test equipment.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety requirements.
The crystal unit has a pin count of 4, facilitating its connection to electronic circuits.
This model belongs to the ABmm² series, which is designed for surface mount applications.
The country of origin for this crystal unit is India.
