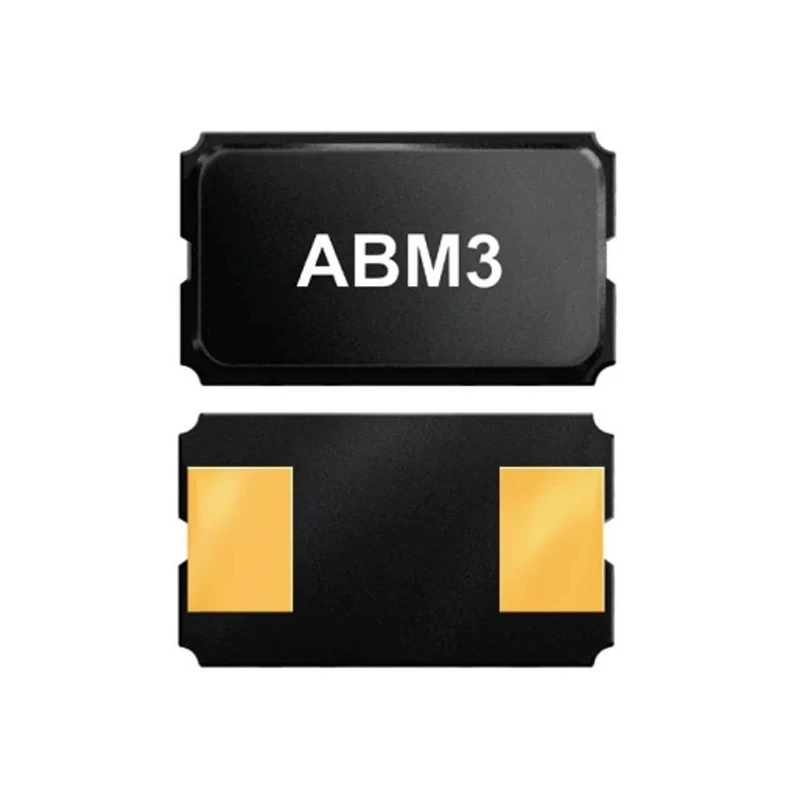

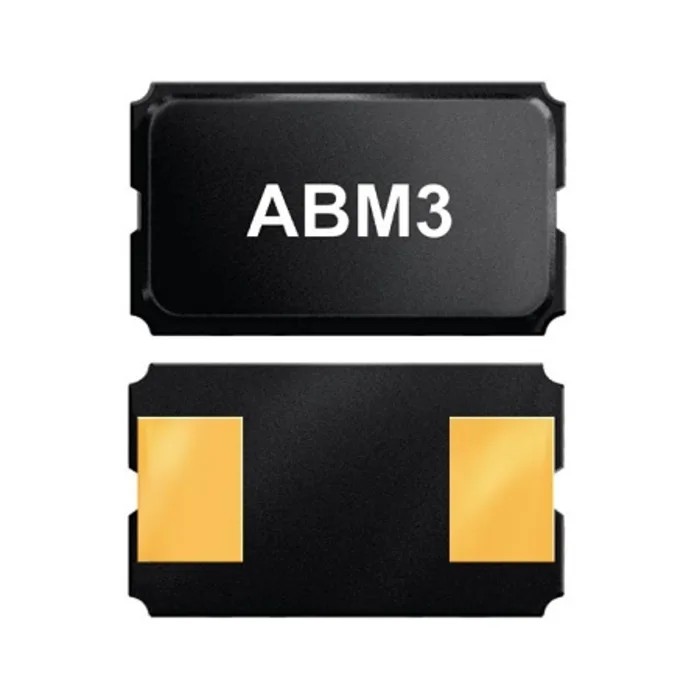

Abracon 16 MHz Crystal Unit ±50 ppm Surface Mount 2-Pin 1.3 mm Height 5 mm Length 3.2 mm Width ABM3-16.000MHZ-B2-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ABM3-16.000MHZ-B2-T |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3 |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 16MHz |
| Load Capacitance | 18pF |
| Series Resistance | 40Ω |
Key Features
- Standard frequency of 16 MHz ensures stable oscillation for communication devices.
- ±50 ppm frequency tolerance offers reliable accuracy in varying operating conditions.
- Surface mount package with dimensions 5 mm length, 3.2 mm width, and 1.3 mm height enables compact PCB assembly.
- Load capacitance rated at 18 pF, meeting standard circuit requirements.
- Equipped with 2 pins for straightforward surface mount installation.
- Hermetically sealed ceramic package resists moisture and environmental effects for enhanced reliability.
- Operating temperature range from -10°C to 60°C suits various industrial and communication environments.
- Equivalent series resistance (ESR) of 40 Ω helps maintain signal quality and performance.
Product Description
Abracon ABM3-16.000MHZ-B2-T is a 16 MHz crystal unit designed for surface mount applications requiring precise frequency stability and durability. This crystal unit features a hermetically sealed ceramic package that resists moisture ingress, ensuring long-term reliability in demanding industrial and communication settings.
The crystal has a frequency tolerance of ±50 ppm and an equivalent series resistance of 40 Ω, facilitating stable oscillation and minimal signal loss. Its compact dimensions of 5 mm length, 3.2 mm width, and 1.3 mm height, combined with a 2-pin surface mount configuration, allow for efficient PCB layout and installation.
Operating within a temperature range of -10°C to 60°C, this component maintains performance across a wide range of environmental conditions. It supports a load capacitance of 18 pF, suitable for many oscillator circuits.
Certified RoHS compliant, the ABM3-16.000MHZ-B2-T is ideal for use in industrial electronics, laboratory test equipment, electronic manufacturing, mobile communication devices including cellular phones and pagers, and wireless applications requiring high precision frequency control.
Standard frequency of 16 MHz ensures stable oscillation for communication devices. ±50 ppm frequency tolerance offers reliable accuracy in varying operating conditions. Surface mount package with compact dimensions enables space-efficient PCB design.
Load capacitance of 18 pF meets oscillator circuitry requirements. Hermetically sealed ceramic package provides moisture resistance and stability. Operating temperature range from -10°C to 60°C supports multiple environments.
Equivalent series resistance of 40 Ω enhances signal quality. Two-pin surface mount configuration for efficient assembly. RoHS compliant for environmentally responsible manufacturing. Ideal for industrial, laboratory, commercial, and telecommunications applications.
Explore more advanced crystal units and related components in the Electronics Components category at EnvMart, your trusted source for precise and reliable electronic components.
Explore more products in our Crystals, Oscillators & Resonators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 16 MHz, ensuring stable oscillation for communication devices.
This model has a frequency tolerance of ±50 ppm, providing reliable accuracy in varying operating conditions.
The dimensions of this crystal unit are 5 mm in length, 3.2 mm in width, and 1.3 mm in height.
The load capacitance for the ABM3-16.000MHZ-B2-T is rated at 18 pF, meeting standard circuit requirements.
The equivalent series resistance (ESR) of this model is 40 Ω, which helps maintain signal quality and performance.
This crystal unit operates within a temperature range of -10°C to 60°C, suitable for various industrial and communication environments.
The ABM3-16.000MHZ-B2-T features a 2-pin configuration for straightforward surface mount installation.
This model is packaged in tape and reel format, facilitating efficient handling and assembly.
Yes, the ABM3-16.000MHZ-B2-T is certified RoHS compliant, indicating it meets environmental standards.
This crystal unit is ideal for use in industrial electronics, laboratory test equipment, mobile communication devices, and wireless applications requiring high precision frequency control.
The mount type for the ABM3-16.000MHZ-B2-T is surface mount, allowing for compact PCB assembly.
The country of origin for this crystal unit is India.
