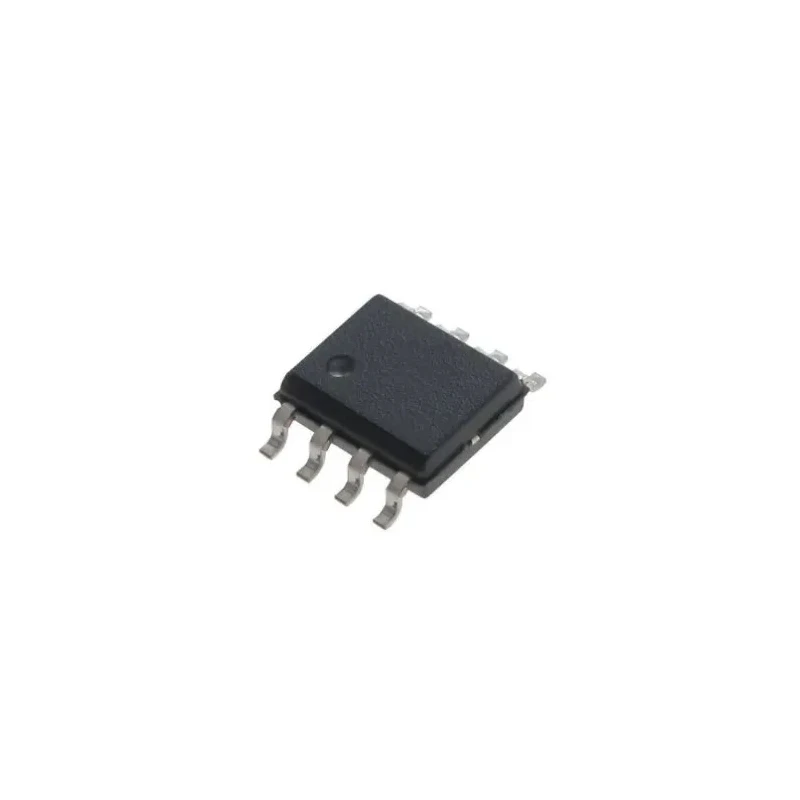

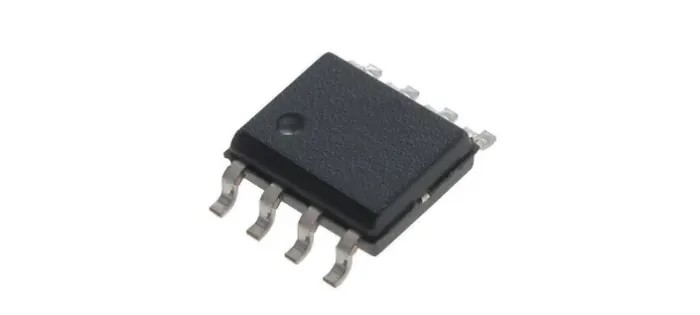

Nisshinbo Micro Devices Operational Amplifier Dual Channel Surface Mount 15 MHz 8-Pin 18V DMP NJM4580V-TE1

The Nisshinbo Micro Devices NJM4580V-TE1 is a dual operational amplifier designed primarily for audio and industrial applications where precise tone control and low distortion are essential. This surface mount device in an 8-pin DMP package offers a gain bandwidth product of 15 MHz, making it suitable for pre-amplifiers, active filters, and a variety of industrial measurement tools. It supports a wide supply voltage range from -18V to 18V, delivering versatile operation.

The operational amplifier features a low input offset voltage of 3 mV and a slew rate of 5 V/μs, which enables efficient signal amplification with minimal noise and distortion. The typical input bias current is 500 nA, ensuring accuracy in sensitive electronic circuits. It is engineered to operate reliably within temperatures ranging from -40°C to 85°C, providing robustness in harsh environments.

Incorporating bipolar technology, the NJM4580V-TE1 ensures noiseless operation and low distortion characteristics, which are crucial for high-fidelity audio applications and precise industrial controls. This product complies with RoHS directives, supporting environmentally responsible manufacturing and usage.

Applications for this operational amplifier include audio pre-amplifiers, active filter circuits, and industrial measurement tools where accurate low-noise amplification is required. The compact 8-pin surface mount configuration facilitates easy integration into modern electronic assemblies.

This dual operational amplifier features a gain bandwidth product of 15 MHz. It comes in an 8-pin DMP surface mount package for efficient PCB assembly. The device operates with a supply voltage range from -18V to 18V. Low input offset voltage of 3 mV enhances signal accuracy.

Designed to operate between -40°C to 85°C for reliability in diverse environments. The amplifier has a slew rate of 5 V/μs allowing moderate speed signal processing. Input bias current is low at 500 nA, reducing signal distortion.

Equipped with bipolar technology for low distortion and noise performance. Complies with RoHS standards ensuring environmental safety. Ideal for audio pre-amplifiers, active filters, and industrial measurement tools.
