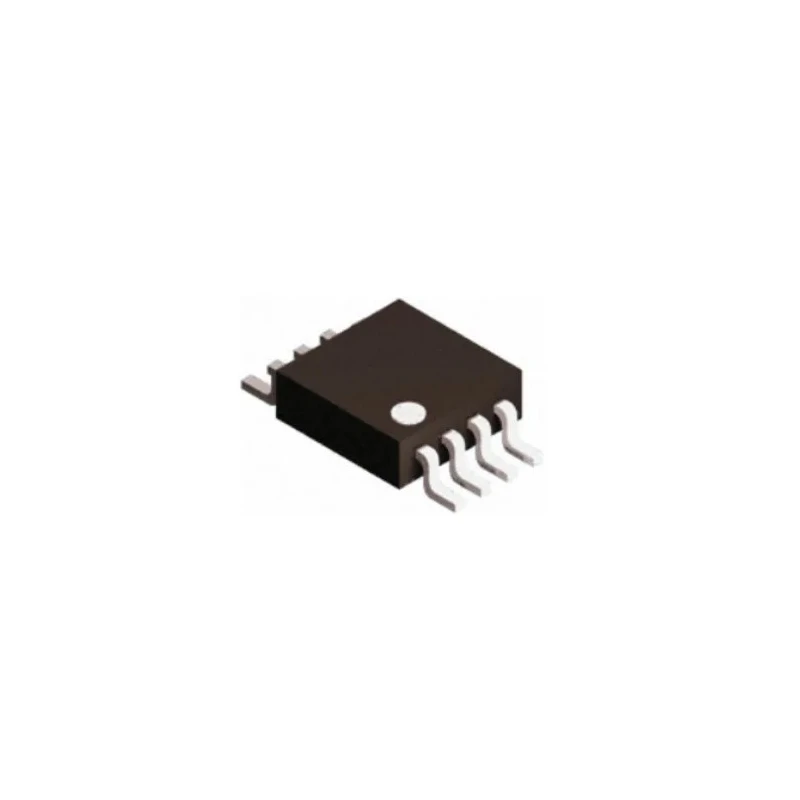

Nisshinbo Micro Devices Operational Amplifier 1 MHz Gain Bandwidth, Surface Mount TVSP 8-Pin NJM2732RB1-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM2732RB1-TE1 |
| Mount Type | Surface |
| Series | NJM2732 |
| Maximum Operating Temperature | 85°C |
| Package Type | TVSP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 250 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 100 pA |
Key Features
- The device operates at a fixed 6V supply voltage for stable performance.
- Utilizes low power bipolar technology, ensuring low noise operation.
- Offers rail-to-rail input/output capability allowing wide dynamic range sensing from ground to supply voltage.
- Input offset voltage is typical at 5 mV with very low input bias current of 250 nA.
- Operating temperature range spans from -40°C to 85°C, suitable for diverse environments.
- Slew rate is 0.4 V/μs, ensuring adequate response speed for control applications.
- Single channel with 8-pin configuration supports compact PCB designs.
- Meets RoHS compliance standards for environmental safety.
Product Description
Nisshinbo Micro Devices NJM2732RB1-TE1 Operational Amplifier is designed for precision electronic amplification with a 1 MHz gain bandwidth product and a surface mount 8-pin TVSP package. It provides both ground and high-side sensing capabilities through its rail-to-rail input/output features, making it suitable for industrial and consumer electronic circuit applications.
This amplifier employs low power bipolar technology to reduce noise and ensure energy efficiency. It operates reliably at a minimum and maximum supply voltage of 6V, with an input offset voltage of 5 mV and an input bias current of 250 nA, which contribute to precision signal amplification.
The device supports a temperature range from -40°C to 85°C, making it competent for use in environments demanding wide thermal tolerance including industrial, instrumentation, and automotive electronics (non-certified for automotive standard).
The slew rate of 0.4 V/μs allows for smooth signal transitions in audio and sensor signal applications. The single-channel design with 8 pins ensures compactness and ease of integration on modern PCBs.
The device operates at a fixed 6V supply voltage for stable performance. Utilizes low power bipolar technology, ensuring low noise operation. Offers rail-to-rail input/output capability allowing wide dynamic range sensing from ground to supply voltage.
Input offset voltage is typical at 5 mV with very low input bias current of 250 nA. Operating temperature range spans from -40°C to 85°C, suitable for diverse environments. Slew rate is 0.4 V/μs, ensuring adequate response speed for control applications.
Single channel with 8-pin configuration supports compact PCB designs. Meets RoHS compliance standards for environmental safety. No automotive standard certification applicable for this model.
This product suits use cases in industrial electronics, power supplies, instrumentation, and general electronic circuit designs requiring precise operational amplification. The small form-factor TVSP package supports modern electronics assembly and manufacturing efficiency.
Explore more advanced semiconductor and amplifier components in EnvMart’s comprehensive Electronics & Electricals catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz, allowing for effective signal amplification in various applications.
The operating temperature range for the NJM2732RB1-TE1 spans from -40°C to 85°C, making it suitable for diverse environments.
The input offset voltage is typically 5 mV, which contributes to the precision of the signal amplification.
This operational amplifier features a single channel configuration, which is optimized for compact PCB designs.
The slew rate of the NJM2732RB1-TE1 is 0.4 V/μs, ensuring adequate response speed for control applications.
It comes in a TVSP package type, which supports surface mount technology for efficient assembly.
The input bias current for the NJM2732RB1-TE1 is 250 nA, which helps in reducing noise during operation.
The minimum supply voltage required for this operational amplifier is 6V, ensuring stable performance.
Yes, this operational amplifier meets RoHS compliance standards for environmental safety.
The input offset current for the NJM2732RB1-TE1 is 100 pA, contributing to its precision in signal amplification.
It utilizes low power bipolar technology, which ensures low noise operation and energy efficiency.
This operational amplifier is suitable for use in industrial electronics, power supplies, instrumentation, and general electronic circuit designs requiring precise amplification.
