Hi-Force Portable General Purpose Hydraulic Cylinder Single Acting 10t 150mm Stroke Length 700 bar Maximum Operating HSS106

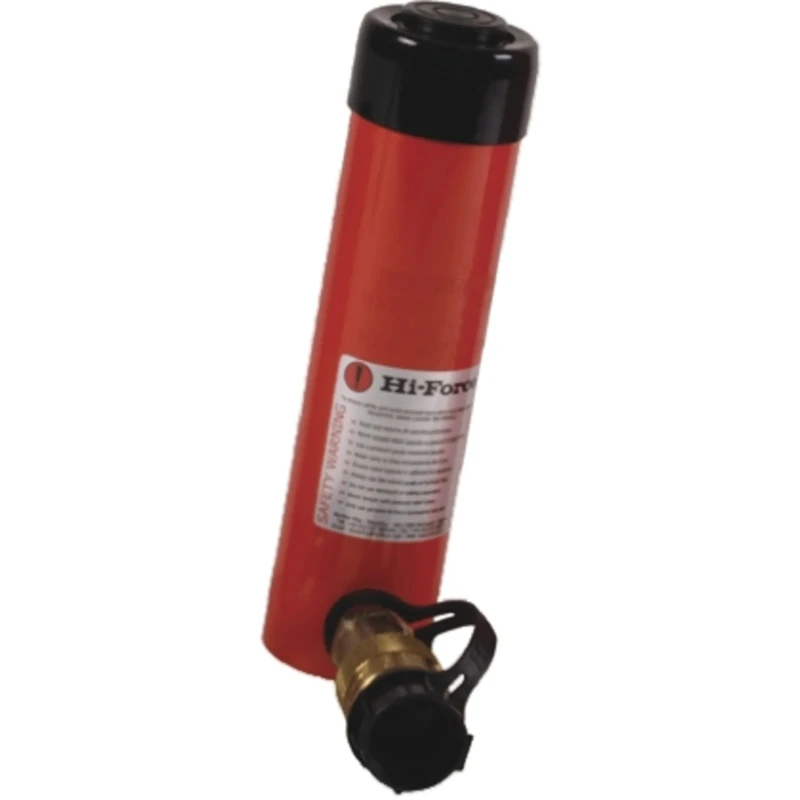

Hi-Force HSS106 Portable General Purpose Hydraulic Cylinder is a high-quality single acting hydraulic cylinder engineered from high strength alloy steels, designed to provide a minimum safety factor of 3:1. With a 10-ton capacity and 150mm stroke length, this cylinder offers reliable performance for lifting and pushing applications requiring flexibility and high cycle rates.

The cylinder features a maximum operating pressure of 700 bar, ensuring robust hydraulic force for industrial tasks. Chrome plated piston rods help prevent corrosion and pressure-activated anti-extrusion seals enhance reliability and performance over prolonged use. Heavy duty return springs assist in complete piston retraction, while steel stop rings strengthen the cylinder's ability to withstand side loads and restraint at full extension.

Non-metallic bearings on the piston rod and stop ring provide excellent wear resistance with low friction, contributing to the cylinder's long service life. The cylinder is suitable across diverse industries such as mining, power stations, railways, shipyards, and steelworks. All port connections are 3/8 inch NPT and fitted with a high flow, quick release female half coupler for efficient hydraulic connections.

Seal kits (part numbers 808-185, 808-179) are available for maintenance and repair, supporting extended operational life.

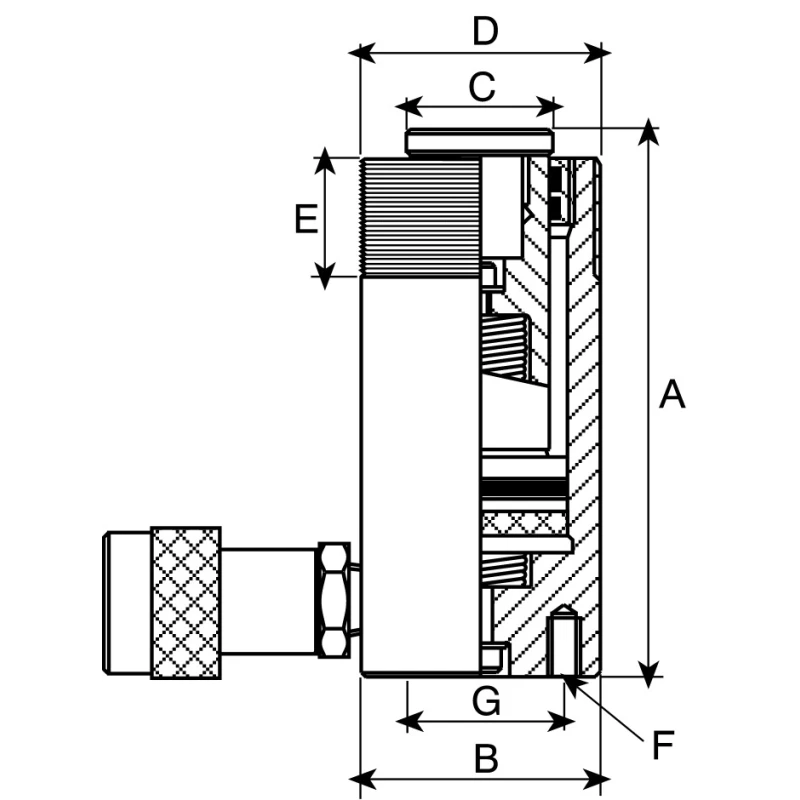

The HSS106 offers compact dimensions with a closed height of 225mm, extended height of 375mm, outside diameter of 57mm, and an oil capacity of 217cm³. Its lightweight design at 4.2kg enhances portability without compromising durability or strength.

This hydraulic cylinder is ideal for industrial, construction, mining, and manufacturing sectors requiring safe and efficient heavy lifting and pushing capabilities. For optimal operation, consult suitable hydraulic hand pumps specified in technical documents.

Explore the comprehensive range of Hydraulic Cylinders and tools available at EnvMart, designed to meet stringent industrial requirements. Constructed from high strength alloy steels for robust industrial use. Single acting, spring return mechanism with a heavy duty return spring for full retraction.

Maximum operating pressure of 700 bar ensuring efficient hydraulic force. Chrome plated piston rods provide corrosion resistance and durability. Equipped with non-metallic bearings offering low friction and high wear resistance.

Suitable for mining, power stations, railways, shipyards, steelworks and other heavy industries. Service and repair seal kits are available to maintain optimal performance. Compact dimensions with 225mm closed height, 375mm extended height, and 57mm outside diameter.

Lightweight design at 4.2kg for portability without sacrificing strength.
