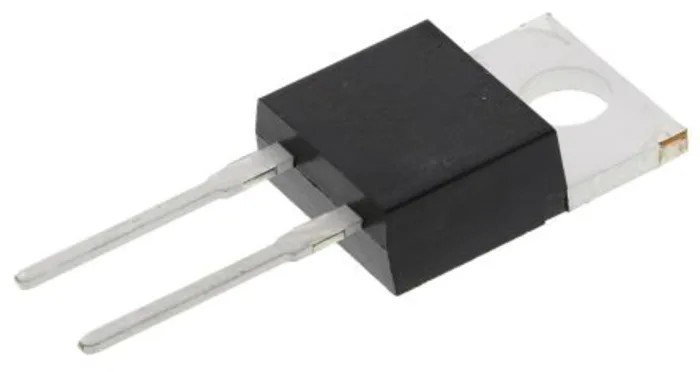

Microchip 1200 V 10 A Schottky Barrier Diode TO-220 MSC010SDA120K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC010SDA120K |
| Mount Type | Through Hole |
| Series | MSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- The diode has a maximum continuous forward current of 10 A.
- It offers a peak reverse repetitive voltage of 1200 V.
- Maximum forward voltage is 1.8 V, providing efficient power handling.
- Operates reliably across a temperature range from -55°C to 175°C.
- Capable of handling a peak non-repetitive forward surge current of 75 A.
- Schottky barrier design results in zero reverse recovery current.
- RoHS compliant and suitable for high voltage applications.
- Package type TO-220 ensures easy through-hole mounting for robust assemblies.
Product Description
Microchip MSC010SDA120K Schottky Barrier Diode is a high-performance discrete semiconductor designed for power applications requiring efficient switching and low power losses. This device features a maximum continuous forward current of 10 A and can withstand a peak reverse repetitive voltage of up to 1200 V. Packaged in a TO-220 form factor, it allows for through-hole mounting suitable for rugged industrial assemblies.
The silicon carbide (SiC) Schottky barrier technology ensures very low forward voltage (1.8 V maximum) and negligible leakage current, leading to improved efficiency and reduced thermal dissipation. This diode exhibits no reverse recovery current, enhancing switching speeds and overall circuit performance.
Operating reliably in harsh thermal conditions, the MSC010SDA120K supports temperatures from -55°C up to 175°C, allowing use in demanding industrial and automotive environments. It can also tolerate a peak non-repetitive forward surge current of 75 A, ensuring robustness in transient conditions.
This RoHS-compliant component is ideal for applications in power rectification, voltage clamping, and freewheeling circuits commonly found in power supplies, motor drives, renewable energy systems, and various industrial electronic equipment.
Key applications include high voltage power conversion, power supply rectification, and automotive electronics where high efficiency and reliability are critical. The TO-220 mounting package facilitates heat dissipation and integration into power modules.
The diode has a maximum continuous forward current of 10 A. It offers a peak reverse repetitive voltage of 1200 V. Maximum forward voltage is 1.8 V, providing efficient power handling. Operates reliably across a temperature range from -55°C to 175°C.
Capable of handling a peak non-repetitive forward surge current of 75 A. Schottky barrier design results in zero reverse recovery current. RoHS compliant and suitable for high voltage applications. Package type TO-220 ensures easy through-hole mounting for robust assemblies.
Ideal for industrial, power electronics, and automotive applications. Explore more high-quality semiconductor components and Schottky Diodes on EnvMart for industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Microchip MSC010SDA120K Schottky Barrier Diode is 10 A.
This model can withstand a peak reverse repetitive voltage of up to 1200 V.
The maximum forward voltage for this diode is 1.8 V, which contributes to its efficient power handling capabilities.
It operates reliably across a temperature range from -55°C to 175°C.
This model is capable of handling a peak non-repetitive forward surge current of 75 A.
The diode is packaged in a TO-220 form factor, allowing for through-hole mounting.
Yes, the Microchip MSC010SDA120K is RoHS compliant, making it suitable for environmentally conscious applications.
It is ideal for applications in power rectification, voltage clamping, and freewheeling circuits, commonly used in power supplies and motor drives.
This diode belongs to the MSC0 series from Microchip.
The specific dimensions of the TO-220 package are not provided, but it is designed for easy integration into power modules.
The diode is a Schottky type, which results in zero reverse recovery current, enhancing switching speeds.
The Microchip MSC010SDA120K is manufactured in India.
