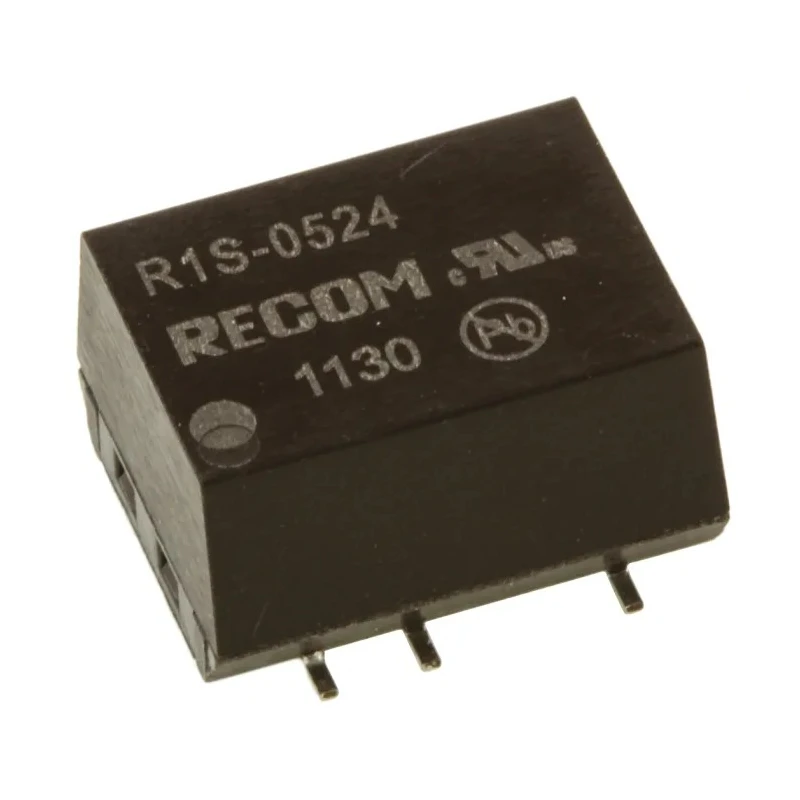

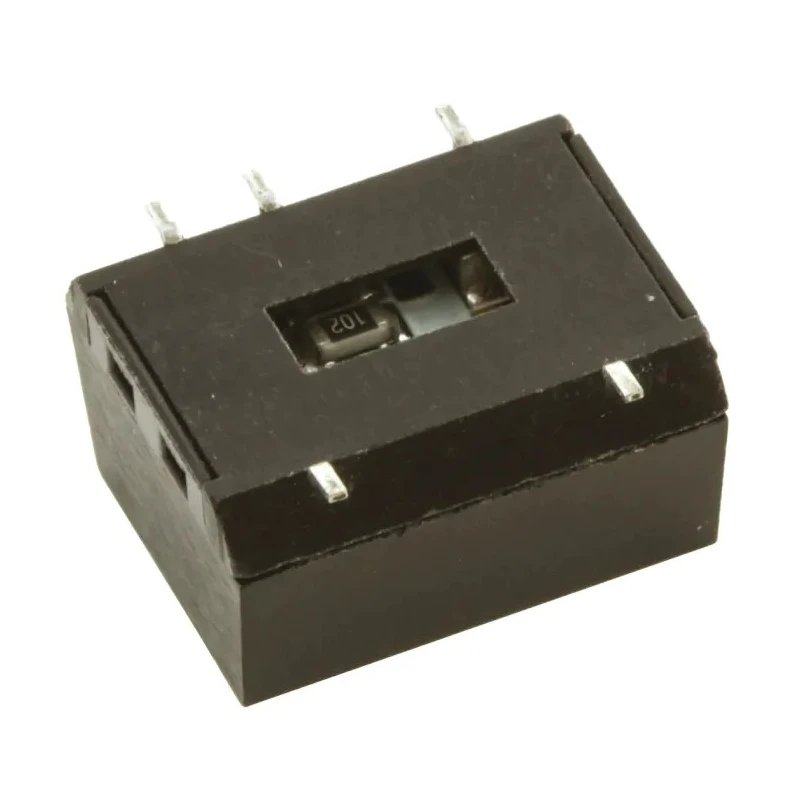

Recom DC/DC Converter 24V DC Output 42mA 5V DC Input 4.5V Minimum Input 1W Surface Mount 8-Pin R1S-0524
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom R1S DC/DC Converter, 24V dc/ 42 mA, 5V dc In |
| Brand | Recom |
| Efficiency | 84% |
| Length | 12.75mm |
| Model | R1S-0524 |
| Depth | 6.7mm |
| Mount Type | Surface |
| Series | R1S |
| Maximum Operating Temperature | 100°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 4275000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 42mA |
| Isolation Voltage | 1kV dc |
Key Features
- Supports input voltages from 4.5V minimum to 5V maximum.
- Surface mount device suitable for PCB integration.
- Operating temperature range from -40°C up to 100°C without derating.
- Isolation voltage rated at 1kV DC for safety and noise immunity.
- High efficiency of up to 84% ensures optimized power usage.
- Mean time between failures (MTBF) of approximately 4,275,000 hours.
- Compact dimensions of 12.75mm length and 6.7mm depth.
- Single output configuration with 8-pin package.
Product Description
Recom R1S-0524 DC/DC Converter is a high-efficiency isolated converter providing 24V DC output at 42mA with a maximum output power of 1 watt. This surface mount device features an 8-pin package and supports input voltages ranging from 4.5V to 5V DC. Designed for use across a broad temperature range of -40°C to 100°C, it is suitable for demanding industrial, electronic, and power supply applications.
Featuring a 1kV DC isolation voltage, the R1S series converter supports robust electrical isolation, enhancing safety and noise immunity for sensitive electronics. The device operates with an efficiency of up to 84%, minimizing power loss and heat generation. With an MTBF of over 4 million hours, this converter offers long-term reliability as part of critical systems.
The compact surface mount form factor enables easy integration into PCBs, saving space in electronic assemblies. Typical applications include power supply modules, industrial control systems, instrumentation, communication equipment, and embedded electronics requiring stable isolated DC voltages.
The converter is compliant with UL60950-1 safety standards and is recognized by CB, CSA, and UL as a certified component. Its un-potted, open-frame design achieves full power delivery at maximum temperature without derating.
Efficient power conversion with up to 84% efficiency. Wide operating temperature range from -40°C to +100°C. High isolation voltage of 1kV DC for secure operation. Compact 8-pin surface mount package for easy PCB integration.
Robust MTBF rated at approximately 4.27 million hours. Supports input voltage from 4.5V to 5V DC. Ideal for industrial, laboratory, electronic components, and power management applications.
Explore more DC/DC Converters by Recom and other high-quality power supply components in the EnvMart Electronics & Electricals category. Upgrade your system design today with reliable and efficient DC/DC conversion technology.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The R1S-0524 DC/DC converter provides an output voltage of 24V DC at a current of 42mA.
It supports an input voltage range from a minimum of 4.5V to a maximum of 5V DC.
The maximum output power of this converter is 1 watt.
This model operates within a temperature range of -40°C to 100°C.
The isolation voltage is rated at 1kV DC, providing safety and noise immunity.
It has an efficiency rating of up to 84%, which optimizes power usage.
The dimensions of the R1S-0524 are 12.75mm in length and 6.7mm in depth.
This converter has a single output configuration.
The MTBF for the R1S-0524 is approximately 4,275,000 hours.
It is designed as a surface mount device suitable for PCB integration.
This model complies with UL60950-1 safety standards and is recognized by CB, CSA, and UL.
It is suitable for power supply modules, industrial control systems, instrumentation, and communication equipment.
