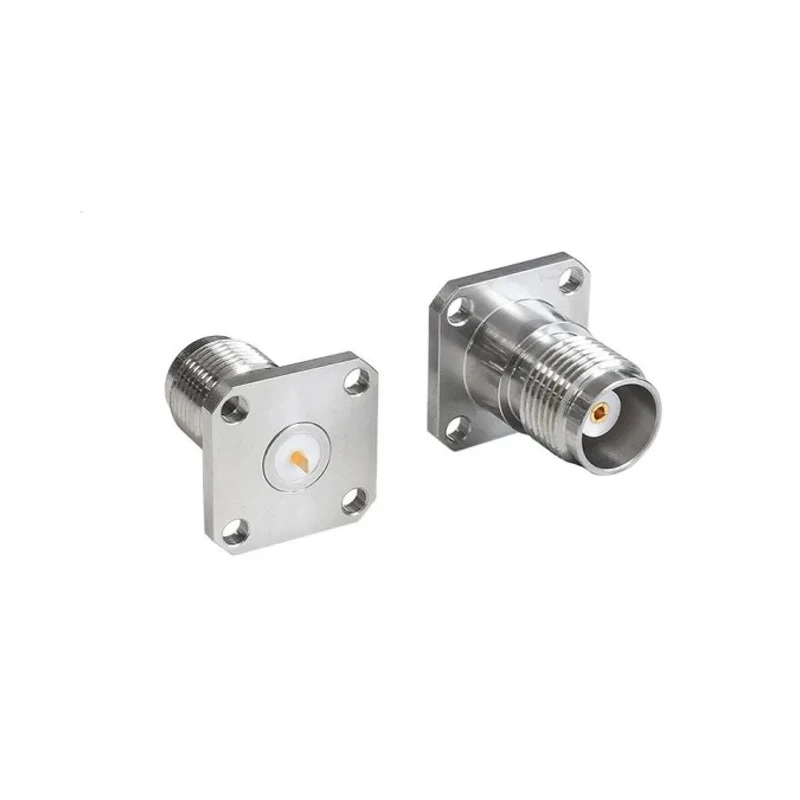

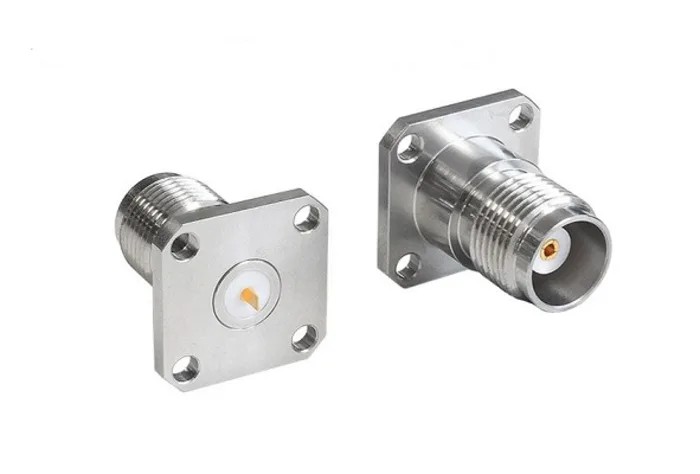

Bulgin TNCA Series Coaxial Connector Flange Female Circular Coaxial 50 Ω Straight Body Plug-In RFTNCAA4PFHMF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bulgin |
| Orientation | Straight |
| Model | RFTNCAA4PFHMF |
| Mount Type | Flange |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | TNCA |
| Termination Type | Plug-In |
| Maximum Operating Temperature | 165°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Polarity | Reverse |
| Impedance | 50Ω |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | Circular Coaxial |
| Body Plating | Stainless Steel |
Key Features
- Designed for use in radio frequency applications up to 18 GHz.
- Features a flange mount type for secure panel installation.
- Constructed with stainless steel body plating for durability.
- Contact made of beryllium copper alloy with gold plating ensuring low resistance and corrosion protection.
- Operates reliably between -65 °C and 165 °C temperatures.
- Terminated with a plug-in type and reverse polarity configuration.
- Complies with RoHS standards for environmental compliance.
- Compatible with TNCA series and mechanically compatible with TNC connectors.
Product Description
Bulgin RFTNCAA4PFHMF TNCA Series Coaxial Connector is a precision 50-ohm circular coaxial female connector designed for high-frequency radio frequency applications with an operating range up to 18 GHz. It features a flange mount type that allows stable and secure panel attachment in industrial and electronic assemblies.
The connector has a straight body orientation with plug-in termination, which enables easy and reliable connection and disconnection in coaxial cable systems. Its stainless steel plated body ensures robust mechanical strength and resistance to environmental factors, enhancing durability during extended use.
The contact is made from beryllium copper alloy with gold plating to provide excellent conductive properties and resistance to corrosion, optimal for maintaining signal integrity. It supports a reverse polarity with female contact configuration ensuring secure mating and safe interconnection.
This connector operates effectively within a wide temperature range from -65°C to 165°C, suitable for demanding environmental conditions in telecommunications, broadcasting, aerospace, and instrumentation industries.
The Bulgin TNCA series connectors are RoHS compliant, meeting regulatory standards for hazardous substances, ensuring environmentally friendly manufacturing. The high insulation resistance of 5000 MOhm and mechanical durability of 500 cycles guarantee reliable long-term performance in both laboratory and industrial applications.
Designed for RF applications up to 18 GHz frequency. Flange mounting and straight body for panel installations. Stainless steel body plating for protection and strength. Beryllium copper alloy contacts with gold plating for conductivity.
Wide operating temperature range from -65°C to 165°C. Reverse polarity and female connector gender. RoHS compliant for safe environmental standards. Insulation resistance of 5000 MOhm ensures electrical safety. Durability rated for 500 mating cycles.
This product is ideal for use in industrial electronics, telecommunications equipment, aerospace instrumentation, and other professional RF applications. Explore more Coaxial Connector solutions and related electronic components in the EnvMart catalog to find compatible parts and accessories for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this model is 18 GHz, making it suitable for high-frequency radio frequency applications.
This connector operates effectively within a temperature range from -65°C to 165°C, suitable for various demanding environments.
The body is constructed with stainless steel plating, while the contact is made from beryllium copper alloy with gold plating for enhanced conductivity and corrosion resistance.
It features a plug-in termination type, allowing for easy and reliable connection in coaxial cable systems.
This model supports flange mounting, which provides stable and secure panel attachment for various applications.
The impedance rating of this connector is 50 Ω, making it compatible with standard coaxial systems.
The connector features a female contact configuration, ensuring secure mating with compatible connectors.
Yes, it is RoHS compliant, meeting regulatory standards for hazardous substances and ensuring environmentally friendly manufacturing.
This model is rated for 500 mating cycles, ensuring reliable long-term performance in various applications.
The insulation resistance of this connector is 5000 MΩ, which ensures electrical safety during operation.
This connector is ideal for use in telecommunications, broadcasting, aerospace instrumentation, and other professional RF applications.
This model is classified as a circular coaxial connector, specifically designed for high-frequency applications.
