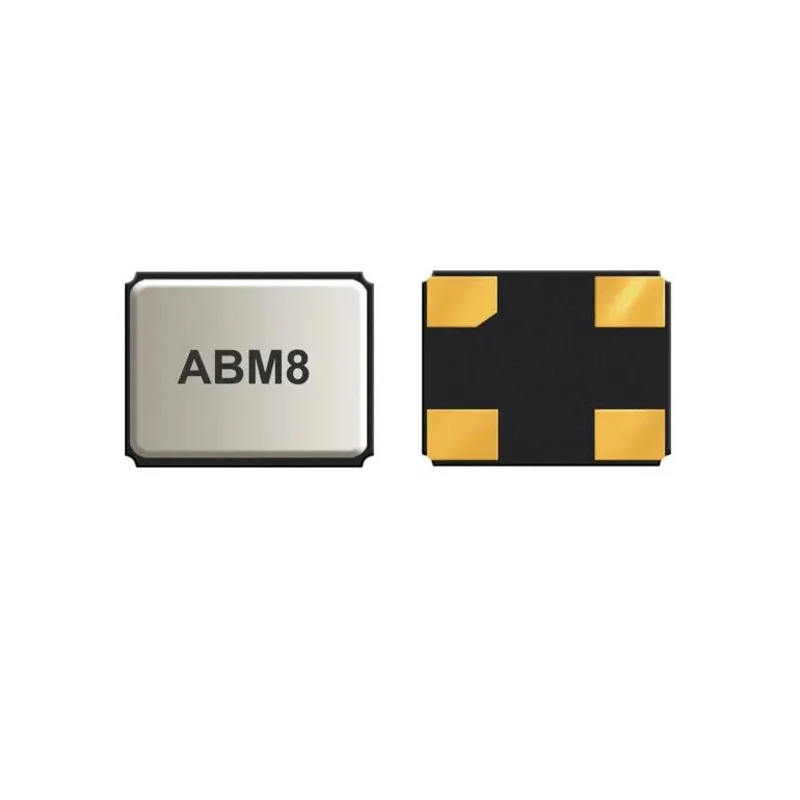

Abracon 25 MHz Crystal ±50 ppm Surface Mount 4-Pin 0.8 mm Height 3.2 mm Length 2.5 mm Width ABM8-25.000MHZ-D2X-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 3.2mm |
| Model | ABM8-25.000MHZ-D2X-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8 |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 25MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- Operates at a standard frequency of 25 MHz with ±50 ppm tolerance for precise timing applications.
- Surface mount package ensures ease of integration on high-density PCBs.
- Compact footprint with length 3.2 mm, width 2.5 mm, and height 0.8 mm.
- Load capacitance set at 18 pF, optimized for stable frequency response.
- Rated series resistance of 50 Ω ensuring minimal signal attenuation.
- Operating temperature range from -10°C to 60°C suitable for various environments.
- Compliant with RoHS standards, making it environmentally friendly.
- Tape & reel packaging supports automated placement in manufacturing processes.
Product Description
Abracon ABM8-25.000MHZ-D2X-T is a 25 MHz crystal unit designed for precise frequency generation with a frequency tolerance of ±50 ppm. It features a surface mount, 4-pin ceramic package with compact dimensions of 3.2 mm length, 2.5 mm width, and 0.8 mm height, suitable for high-density PCB layouts.
This crystal is optimized with an 18 pF load capacitance and has a series resistance of 50 Ω, supporting stable oscillation and signal performance in modem, communication equipment, and wireless applications. The device operates reliably within a temperature range of -10°C to 60°C, ensuring stable performance under various conditions.
The ABM8 series uses seam-sealed ceramic packaging to guarantee high reliability and durability. It complies with RoHS standards and is suitable for automated assembly thanks to its tape and reel packaging format.
Common industrial applications include communication modems, PMCIA devices, and other wireless equipment requiring accurate frequency control. This component is engineered for environments demanding compact size, consistent stability, and high reliability.
Operates at standard 25 MHz frequency with tight ±50 ppm tolerance. Surface Mount Device (SMD) ceramic package, 4-pin configuration. Dimensions: 3.2 mm length, 2.5 mm width, 0.8 mm height for compact design. Load capacitance at 18 pF and series resistance of 50 Ω for performance stability.
Operating temperature from -10°C to 60°C suitable for various industrial conditions. RoHS compliant ensuring environmental safety and manufacturing compatibility. Seam sealed packaging enhances reliability in demanding applications.
Tape and reel packaging facilitates manufacturing automation. Explore more electronic components by Abracon and advanced crystal oscillators on EnvMart for efficient industrial and communication solutions.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 25 MHz.
This model has a length of 3.2 mm, a width of 2.5 mm, and a height of 0.8 mm.
The load capacitance is set at 18 pF, which is optimized for stable frequency response.
It has a rated series resistance of 50 Ω, ensuring minimal signal attenuation.
The operating temperature range is from -10°C to 60°C, suitable for various environments.
It is packaged in tape and reel format, which supports automated placement in manufacturing processes.
Yes, it complies with RoHS standards, making it environmentally friendly.
This model features a 4-pin configuration.
It utilizes a surface mount type, suitable for high-density PCB layouts.
Common applications include communication modems, PMCIA devices, and other wireless equipment requiring accurate frequency control.
This unit belongs to the ABM8 series, which is known for its high reliability and performance.
The ±50 ppm tolerance indicates the precision of the frequency generation, ensuring accurate timing applications.
