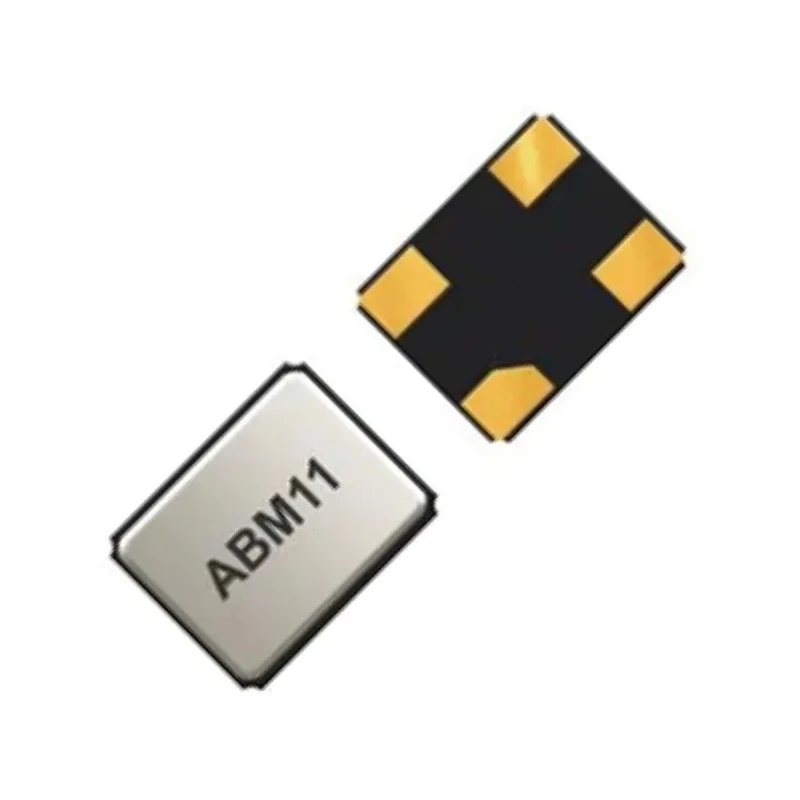

Abracon 26 MHz Surface Mount Crystal 4-Pin Tape & Reel 2 mm x 1.6 mm x 0.59 mm ABM11-140-26.000MHz-T3

Abracon ABM11-140-26.000MHz-T3 Surface Mount Crystal is a precision 26 MHz frequency crystal encoder housed in a compact 2.0 x 1.6 x 0.59 mm ceramic SMD package. This component offers high frequency stability with ±30 ppm tolerance and ±50 ppm stability, ideal for industrial and electronic applications requiring accurate timing signals.

The device features a 4-pin surface mount configuration with a load capacitance rating of 8 pF and a series resistance of 100 Ω, supporting stable oscillation at the specified frequency. Its operating temperature range from -10°C to 60°C allows deployment in varied environmental conditions.

Packaged on tape and reel, the ABM11 crystal is designed for automated SMT assembly lines, enhancing manufacturing efficiency. The ceramic package is robust with a metal lid seal that guarantees long term precision and reliability. This crystal is RoHS compliant, meeting environmental and safety standards.

Applications include use in cellular telephones, pagers, PCMCIA cards, and other high density electronic devices where compact size and precise frequency control are critical. Its ultra miniature size enables integration into space-constrained PCB layouts.

Compact 2 mm x 1.6 mm x 0.59 mm ceramic SMD package. Accurate 26 MHz frequency with ±30 ppm tolerance. Surface mount 4-pin configuration suitable for SMT assembly. Supports operating temperature from -10°C to 60°C. Load capacitance of 8 pF and series resistance of 100 Ω.

Sealed ceramic package ensures stability and reliability. RoHS compliant and supplied in tape & reel format.

This component is ideal for industrial, communications, and consumer electronics applications requiring dependable timing components. For additional high-quality electronic components, browse Environment Mart’s Electronics Components categories.
