| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BAS70LS-QYL |
| Mount Type | Surface |
| Series | BAS70LS-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 70mA |
| Peak Reverse Repetitive Voltage Vrrm | 70V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA |
| Maximum Forward Voltage Vf | 380mV |

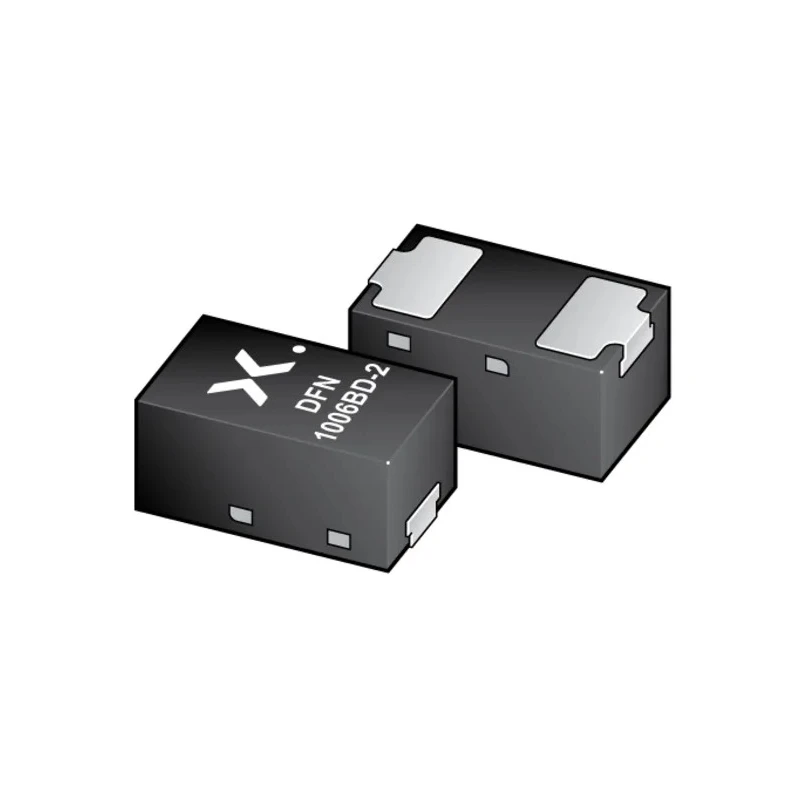

Nexperia BAS70LS-QYL is a Schottky Barrier Diode designed for reliable surface mount applications, housed in the compact DFN1006BD-2 (SOD882BD) package with side-wettable flanks.
This diode supports a maximum continuous forward current of 70 mA and withstands a peak reverse repetitive voltage of 70 V, providing high efficiency and fast switching in power electronic circuits.
Its low forward voltage drop of 380 mV contributes to reduced power loss, and the device maintains stable operation across a wide temperature range from -55°C to 150°C, making it suitable for industrial, automotive, and consumer electronics environments.
Qualification to AEC-Q101 standard certifies this device for automotive applications, enhancing reliability under rigorous conditions.
With a peak non-repetitive forward surge current of 200 mA, the diode can tolerate occasional high current pulses without damage. Its low leakage current and capacitance improve circuit efficiency and signal integrity.
Compact DFN1006BD-2 leadless plastic package with side-wettable flanks. High switching speed designed for efficient power rectification. Compliance with RoHS directives ensures environmental safety. Supports automatic optical inspection due to side-wettable flank design.
Ideal for use in automotive, industrial control, and power management circuits. This diode is widely applicable in power supplies, voltage clamping, protection circuits, and general rectification tasks for electronic device protection and efficiency.
