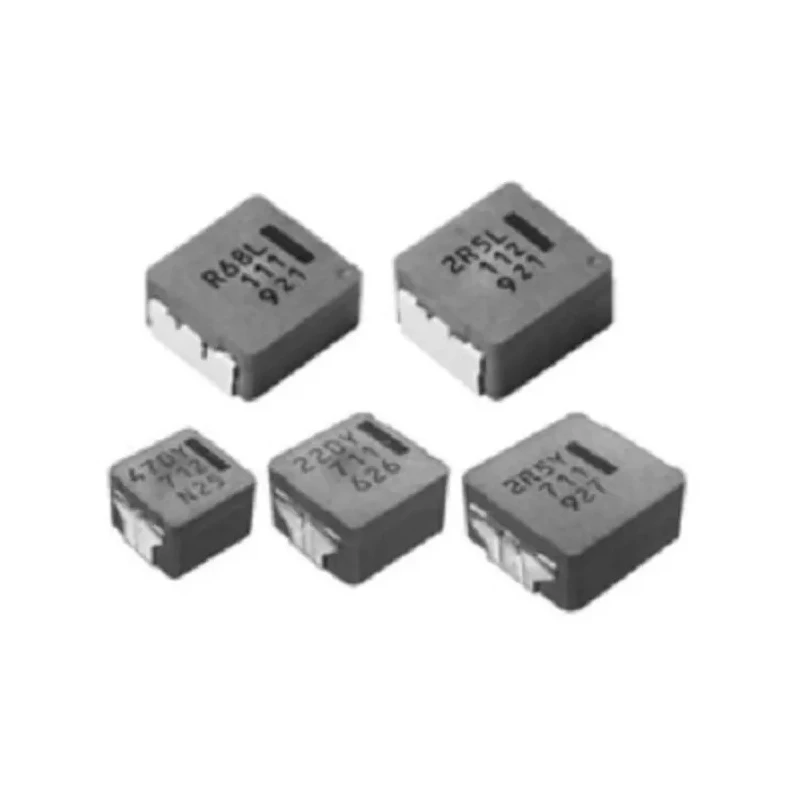

Panasonic Wirewound Shielded Surface Mount Inductor Metal Composite Core 2.5μH ±20% 18.1A Idc ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5.4mm |
| Length | 10.7mm |
| Model | ETQP5M |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 2.5μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 18.1A |
| Pin Count | 2 |
| Maximum DC Resistance | 5.9mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor has a surface mount package style with tape & reel packaging for efficient assembly.
- Features shielded construction to minimize electromagnetic interference.
- Constructed with a metal composite core for high heat resistance and reliability.
- Rated for operation between -40°C and 150°C with high vibration resistance.
- Maximum DC resistance is low at 5.9mΩ ensuring efficient power handling.
- Meets automotive standard AEC-Q200 for robust performance in automotive environments.
- Wirewound construction ensures excellent inductance stability and low audible noise.
- Designed for noise filtering in high temperature and peak current applications.
Product Description
Panasonic ETQP5M is a shielded wirewound surface mount inductor featuring a metal composite core, providing high heat resistance and superior reliability. It delivers an inductance of 2.5μH with a tolerance of ±20% and supports a maximum DC current of 18.1A. The inductor exhibits low DC resistance of 5.9mΩ, enhancing power efficiency and thermal management under high load conditions.
Housed in a compact surface mount package, this component is supplied on tape and reel, facilitating automated PCB assembly. With a length of 10.7mm, height of 5.4mm, and depth of 10mm, it is suitable for space-constrained applications.
Qualified to the automotive standard AEC-Q200, the ETQP5M operates reliably in harsh automotive environments, with a wide temperature range from -40°C to 150°C. Its shielded design minimizes electromagnetic interference, making it ideal for sensitive electronic circuits.
Constructed using a ferrous alloy magnetic material, the wirewound inductor offers excellent inductance stability and low audible noise, which is critical in noise filter applications. The robust integral construction ensures high vibration resistance, supporting long-term durability in industrial, automotive, manufacturing, and power electronics use cases.
The inductor provides stable operation up to 150°C including self-heating effects. It achieves noise filtering for drive circuitry demanding high temperature endurance and peak current handling. Its shielded construction reduces electromagnetic interference in compact electronic assemblies.
Wirewound design ensures consistent electrical performance and longevity. Packaged for ease of use in automated assembly via tape and reel format. Compact size facilitates integration in space-conscious industrial and automotive electronic designs.
This Panasonic ETQP5M Surface Mount Inductor is suitable for industrial, automotive, electronics manufacturing, and power management applications requiring durable, high performance magnetic components. EnvMart offers this component as part of its extensive electronics components category, supporting your device design and production needs with high-quality reliable parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ETQP5M inductor has an inductance value of 2.5μH with a tolerance of ±20%.
This model supports a maximum DC current of 18.1A, ensuring efficient power handling under load conditions.
The dimensions of the ETQP5M are 10.7mm in length, 5.4mm in height, and 10mm in depth.
The maximum operating temperature for the ETQP5M is 150°C, allowing it to function in high-temperature environments.
It is supplied in tape and reel packaging, facilitating efficient automated PCB assembly.
This inductor features a wirewound construction, which ensures excellent inductance stability and low audible noise.
The ETQP5M is qualified to the automotive standard AEC-Q200, making it suitable for automotive applications.
The core material of the ETQP5M is a metal composite, providing high heat resistance and reliability.
The maximum DC resistance of this inductor is 5.9mΩ, which enhances power efficiency.
The minimum operating temperature for the ETQP5M is -40°C, allowing it to operate in extreme conditions.
The maximum self-resonant frequency for this inductor is 100kHz, which is relevant for its performance in high-frequency applications.
This inductor is suitable for industrial, automotive, electronics manufacturing, and power management applications requiring high-performance magnetic components.
