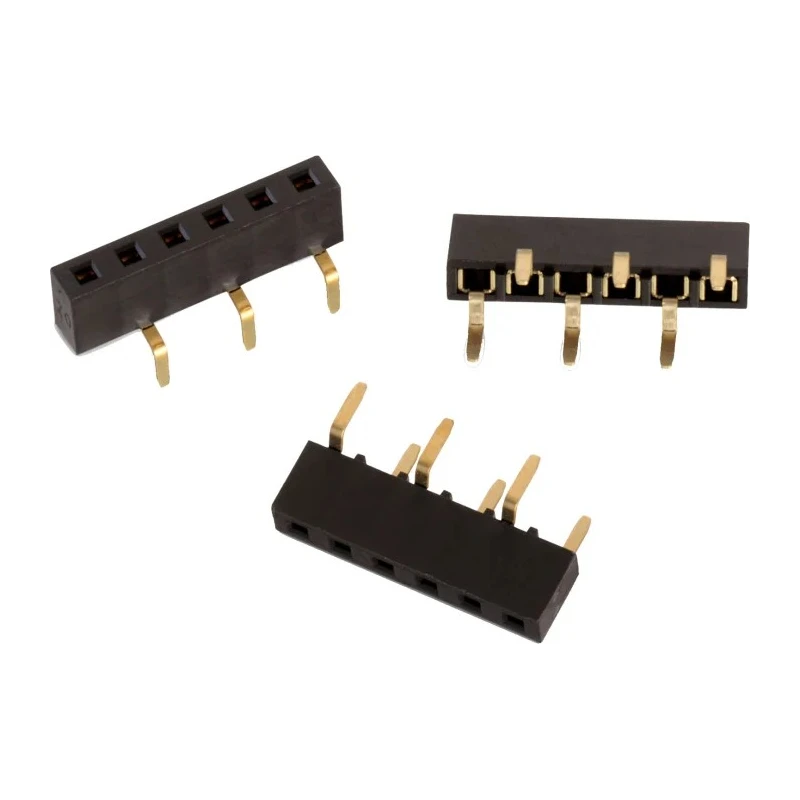

Wurth Elektronik WR-PHD Series Bottom Entry Through Hole PCB Socket, 6-Contact, 1 Row, 2.54 mm Pitch, 3A, 500V 61300615721
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Bottom Entry |
| Current | 3A |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Socket |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Connector System | Board-to-Board |
Key Features
- Operates at a current rating of 3A and voltage rating of 500V.
- Constructed with copper alloy contacts and gold plating for reliable conductivity.
- Mounting type is through hole with bottom entry orientation.
- Durable for up to 25 mating cycles with UL94 V-0 flammability rated PA9T insulator.
- Suitable for board-to-board connection systems in electronic components.
- Wide operating temperature range from -40°C to 105°C.
- Complies with RoHS standards ensuring lead-free and environmentally friendly design.
- Manufactured in Taiwan, Province Of China.
Product Description
Wurth Elektronik model 61300615721 is a bottom entry through hole PCB socket designed for precise and durable board-to-board connections. It features a single row of 6 contacts spaced at a 2.54 mm pitch, making it ideal for compact electronic assemblies requiring reliable solder termination.
The socket's contact material is copper alloy with gold plating, providing excellent conductivity and corrosion resistance. It supports a current rating of 3A and a voltage rating of 500V, suitable for a variety of electronic circuit applications.
The insulator is made of PA9T material with a UL94 V-0 flammability rating, ensuring safety and longevity under demanding conditions. This component is rated for a durability of 25 mating cycles, maintaining electrical continuity through repeated connections and disconnections.
Operating temperatures range from -40°C to +105°C, allowing application across industrial, laboratory, manufacturing, and electronic repair environments. The bottom entry design facilitates convenient assembly in through hole mounting setups.
Operates at 3A current and 500V voltage rating. Provides 6-contact configuration with 2.54 mm pitch. Features PA9T insulator with UL94 V-0 rating for safety. Gold plated copper alloy contacts ensure reliability. Durability of 25 mating cycles for extended use.
Complies with RoHS for environmental compliance. Suitable for board-to-board electronic connections. Manufactured in Taiwan, Province Of China.
This PCB socket is ideal for integration in electronics manufacturing, testing laboratories, and repair operations, offering a robust and standardized connector solution. Explore additional components and accessories within the PCB Sockets category at EnvMart to complement your assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a current rating of 3A and a voltage rating of 500V, making it suitable for various electronic circuit applications.
The contacts are made of copper alloy and feature gold plating, which provides excellent conductivity and corrosion resistance.
It has a bottom entry orientation and is designed for through hole mounting, facilitating convenient assembly in electronic applications.
This socket features a configuration of 6 contacts arranged in a single row, spaced at a 2.54 mm pitch.
This unit is rated for up to 25 mating cycles, ensuring reliable electrical continuity through repeated connections and disconnections.
It operates within a temperature range of -40°C to +105°C, allowing for use in various environments, including industrial and laboratory settings.
Yes, it complies with RoHS standards, ensuring that it is lead-free and environmentally friendly.
The termination type for this PCB socket is solder, making it suitable for secure connections on printed circuit boards.
This product is manufactured in Taiwan, Province Of China.
It supports a board-to-board connector system, making it ideal for electronic assembly applications.
The insulator is made of PA9T material with a UL94 V-0 flammability rating, ensuring safety under demanding conditions.
This socket is part of the WR-PHD series, designed for precise and durable board-to-board connections in electronic components.
