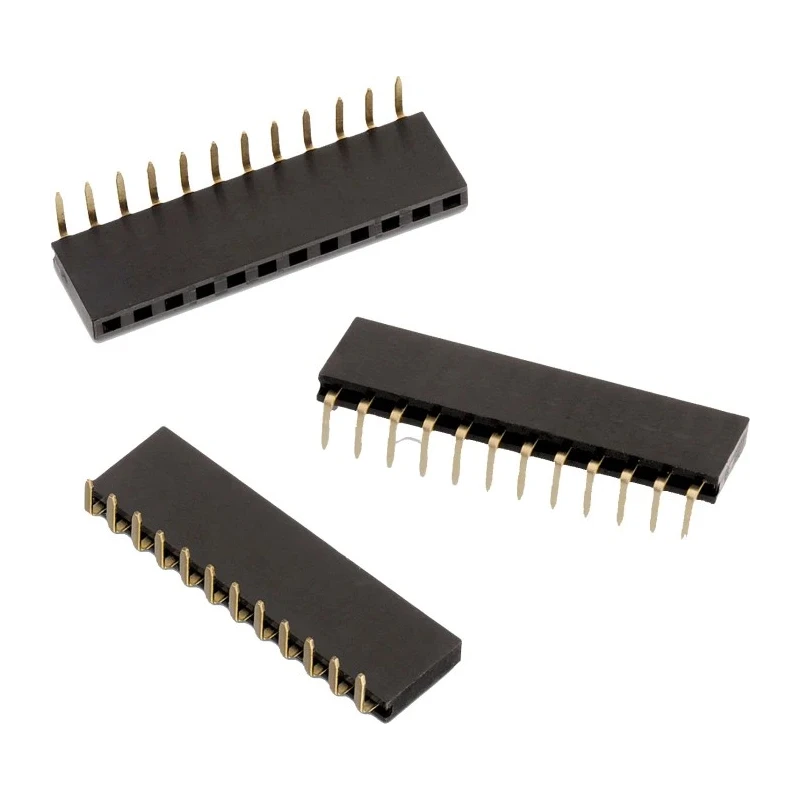

Wurth Elektronik Angled Through Hole PCB Socket 24-Contact 1 Row 2.54 mm Pitch WR-PHD Series 613024143121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Angled |
| Current | 3A |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Socket |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Connector System | Board-to-Board |
Key Features
- Constructed with copper alloy contact material for durability.
- Contacts are plated with gold to ensure reliable connectivity.
- Supports current rating of 3A suitable for typical electronic board applications.
- Rated for 500V voltage withstand providing robust insulation.
- Designed with an angled orientation and through hole mount type.
- Operating temperature ranges from -40°C to 105°C for varied environments.
- Compatible with board-to-board connector system applications.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Wurth Elektronik 613024143121 is a high-quality WR-PHD series angled through hole PCB socket designed for reliable board-to-board connections. This single row socket consists of 24 gold-plated copper alloy contacts spaced at a 2.54 mm pitch, ideal for solder mounting on printed circuit boards. With a current rating of 3A and voltage withstand of 500V, it offers robust performance for industrial and electronic applications.
The socket operates effectively within a temperature range of -40°C to 105°C, making it suitable for a variety of environments including industrial electronics manufacturing and prototyping labs. The angled orientation facilitates easier mounting and cable routing in compact assemblies.
Manufactured in Taiwan, the WR-PHD series meets RoHS environmental standards and UL approval (E323964), ensuring safety and compliance. It supports up to 25 mating cycles, providing reliable repeated engagement during maintenance or testing.
Commonly used in electronic devices, power connectors, and PCB interconnection systems, this socket enhances connector durability while maintaining electrical integrity. Its solder termination and through hole design enable secure solder joints for long-lasting use.
Constructed with copper alloy contacts with gold plating for dependable connections. Single row with 24 contacts at 2.54 mm pitch meets standard PCB socket requirements. Rated for currents up to 3A and voltages up to 500V AC.
Operating temperature span of -40°C to +105°C fits industrial and consumer electronics environments. Durability tested with 25 mating cycles for long-term reliability. RoHS compliant and UL approved for quality assurance.
Explore the Electronics Components category at EnvMart for a wide range of PCB Sockets, connectors, and related items to support your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 3A, suitable for typical electronic board applications.
This socket is rated for a voltage withstand of 500V, providing robust insulation.
The operating temperature range is from -40°C to 105°C, making it suitable for various environments.
It features 24 contacts arranged in a single row with a pitch of 2.54 mm.
This model uses a solder termination type for secure connections on printed circuit boards.
The contacts are constructed from copper alloy and are plated with gold to ensure reliable connectivity.
Yes, it complies with RoHS standards, ensuring environmental safety.
It is designed for through hole mounting, allowing for secure solder joints.
This socket is rated for up to 25 mating cycles, providing reliable repeated engagement.
It supports board-to-board connector system applications, enhancing interconnection capabilities.
This PCB socket is manufactured in Taiwan.
The socket features an angled orientation, facilitating easier mounting and cable routing in compact assemblies.
