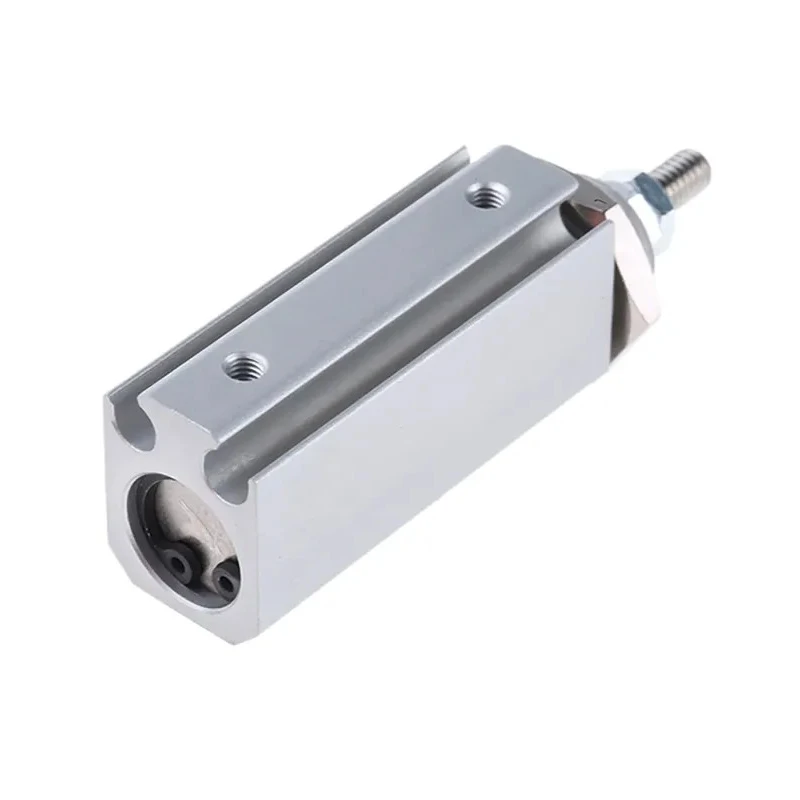

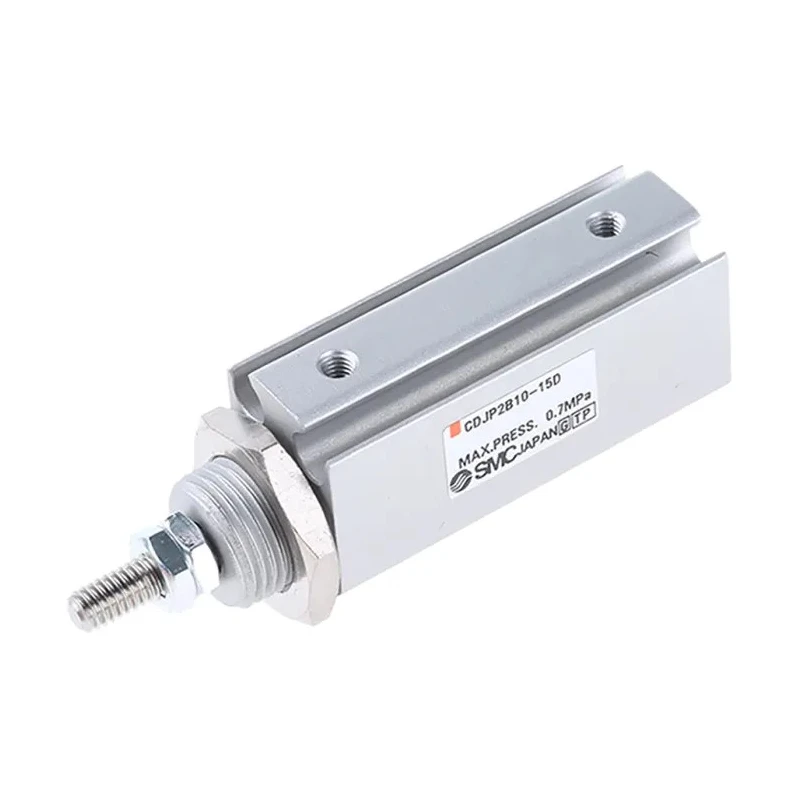

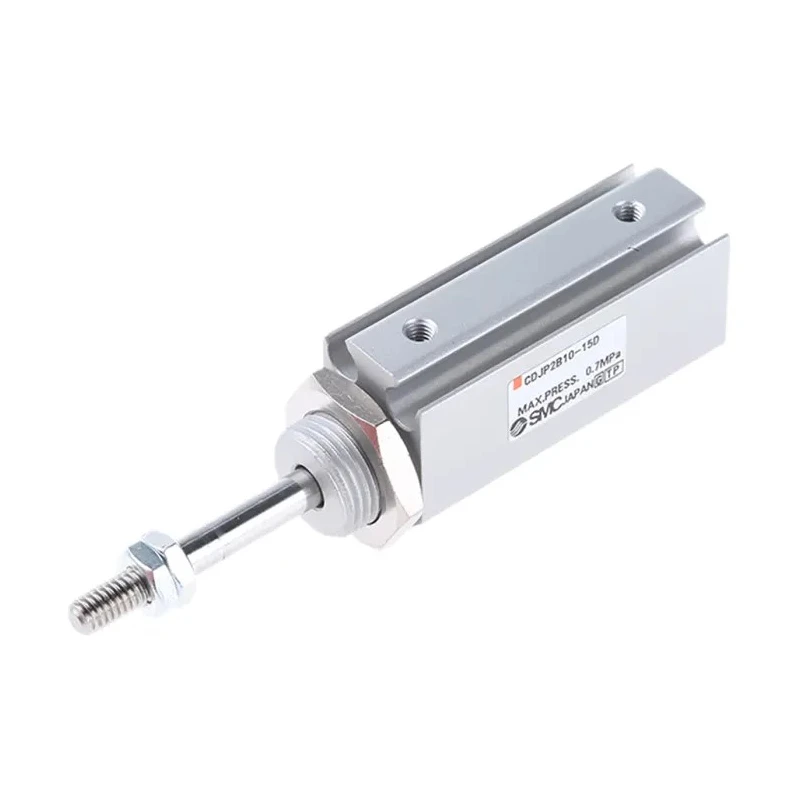

SMC 15 mm Pneumatic Piston Rod Cylinder, CJP2 Series, Double Acting, Panel Mount, Rubber Cushion, Aluminium CDJP2B10-15D

SMC CDJP2B10-15D Pneumatic Piston Rod Cylinder from the CJP2 Series is a precision-engineered, double acting pneumatic actuator with a 15 mm stroke and 54.5 mm overall length, designed for reliable performance in industrial automation applications.

The cylinder features a durable aluminium body with panel mounting configuration for secure installation, along with a single male-threaded rod adhering to metric thread standards for versatile equipment integration. Rubber cushioning at both cylinder ends absorbs impact forces to extend component life, making it suitable for continuous operation within a temperature range up to 70°C.

The compact design incorporates a magnetic piston as standard and requires no lubrication, ensuring smoother operation and reduced maintenance. The maximum piston speed is rated at 500 mm/s, permitting rapid yet precise actuation in pneumatic systems.

This pneumatic piston rod cylinder is ideal for use in manufacturing, packaging, machinery automation, and fluid power control systems where compact size and high reliability are essential. It offers an IP67 rating, ensuring protection against dust and water ingress for demanding environments.

Compact aluminium body construction ensures durability and lightweight handling. Double acting piston rod cylinder design allows bidirectional control for efficient pneumatic actuation. Panel mount type facilitates easy integration into machinery and equipment.

Rubber cushioning at both ends protects against impact and vibration during operation. Single male-threaded piston rod made to metric thread standards for versatile attachment options. Maximum operating temperature is 70°C suitable for typical industrial pneumatic environments.

Stroke length of 15 mm with a total cylinder length of 54.5 mm offers precise movement control. Compact design with magnetic piston standard and lubrication-free operation reduces maintenance needs. Maximum piston speed rated at 500 mm/s for responsive pneumatic performance.

Suitable for applications requiring IP67 rating and proven resistance to dust and water ingress.

Distributed commonly in pneumatic automation assemblies, this cylinder from SMC is engineered for enhancing industrial efficiency in sectors such as manufacturing, packaging lines, and fluid power applications. It provides reliable, repeatable performance with minimized downtime.
