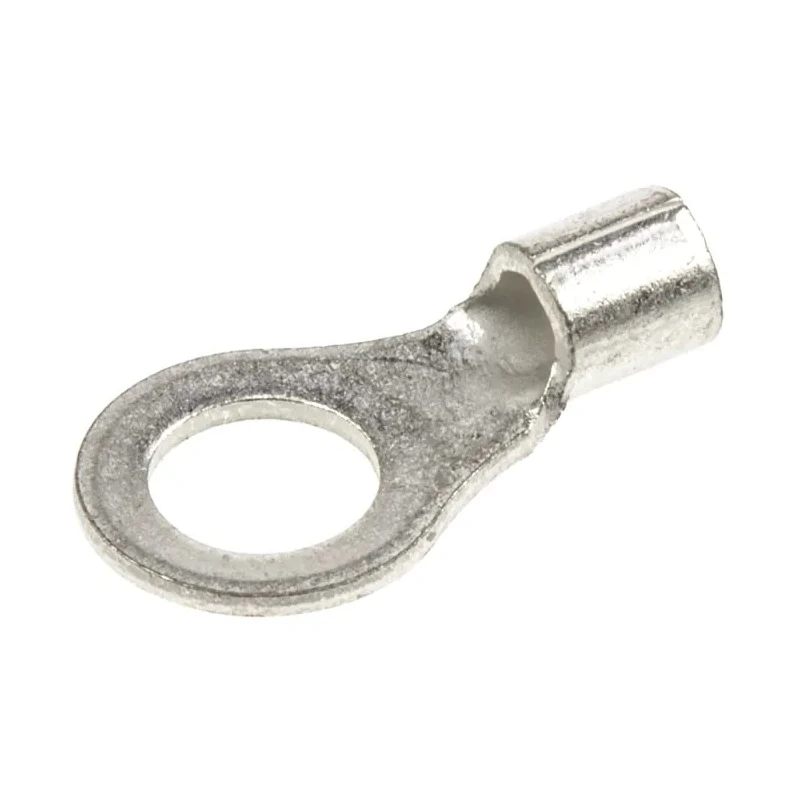

TE Connectivity Solistrand Uninsulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size 130106
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | 130106 |
| Insulation | Uninsulated |
| Overall Length | 16.3mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 8.74mm |
| Inner Ring Diameter | 5.26mm |
| Stud Size | M5 |
| Standards/Approvals RoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |
| TE Connectivity, SOLISTRAND Uninsulated Crimp Ring Terminal, M5 Stud SizeBrand | TE Connectivity |
| RS PRO Uninsulated Ring Terminal, M5 Stud Size 16 AWG 14 AWG Wire SizeBrand | RS PRO |
Key Features
- Constructed of fine grade high conductivity copper for optimal electrical performance.
- Electro tin plating improves resistance to corrosion.
- Robust design withstands harsh environments.
- Brazed seams enhance barrel strength and durability.
- Dimpled and serrated barrel increases tensile strength and contact area.
- Bell shaped barrel mouth allows fast and easy wire insertion.
- Rated for maximum operating temperature of 170°C.
- Compatible with SOLISTRAND crimping tools for secure conductor application.
Product Description
TE Connectivity 130106 Solistrand uninsulated ring terminal is engineered for terminating solid and stranded wires with M5 stud size, supporting wire gauges from 16 AWG to 14 AWG (1mm² to 2.6mm²). Made from fine grade high conductivity copper and electro tin plated, the terminal ensures superior electrical performance and corrosion resistance in challenging industrial environments.
The SOLISTRAND ring terminal features a robust design, with brazed seams for enhanced barrel strength, and a bell-shaped barrel entrance that facilitates quick wire insertion, reducing installation time. The inner barrel surface is serrated and dimpled to maximize tensile strength and electrical contact after crimping, offering durable and efficient connections.
These terminals are rated for maximum operating temperatures up to 170°C, making them suitable for demanding applications requiring high reliability. They are ideal for use in materials handling equipment, motors, heavy machinery, transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, and control instruments.
To achieve optimal mechanical strength and electrical conductivity, these SOLISTRAND ring terminals should be applied using compatible SOLISTRAND crimping tools, sold separately. Made from high conductivity copper for electrical efficiency.
Electro tin plating ensures corrosion resistance. Brazed seam barrels provide mechanical strength. Serrated and dimpled inner barrel enhances wire grip and contact. Bell-shaped barrel enables fast wire insertion. Supports wire sizes 16 AWG to 14 AWG (1mm² to 2.6mm²).
Maximum operating temperature of 170°C for demanding environments. Designed for industrial and commercial electrical applications. Compatible with SOLISTRAND crimping tools for secure connections. Explore our extensive range of electrical connectors and Ring Terminals in the Electronics Components category on EnvMart for reliable and efficient power and signal connections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this ring terminal is 170°C, making it suitable for demanding applications.
This model supports wire sizes from 16 AWG to 14 AWG, which corresponds to 1mm² to 2.6mm².
The stud size for this uninsulated ring terminal is M5.
It is constructed from fine grade high conductivity copper and features electro tin plating for improved corrosion resistance.
The barrel features brazed seams for enhanced strength, and a dimpled and serrated inner surface increases tensile strength and contact area after crimping.
This product complies with RoHS and ANSI/ESD S20.20:2021 Electrostatic Control Standard.
The overall length of this ring terminal is 16.3mm.
Yes, it is designed for industrial and commercial electrical applications, including use in motors, heavy machinery, and telecommunications.
This terminal is compatible with SOLISTRAND crimping tools for secure conductor application.
The outer ring diameter is 8.74mm and the inner ring diameter is 5.26mm.
The bell-shaped barrel allows for fast and easy wire insertion, reducing installation time.
This product is manufactured in India.
