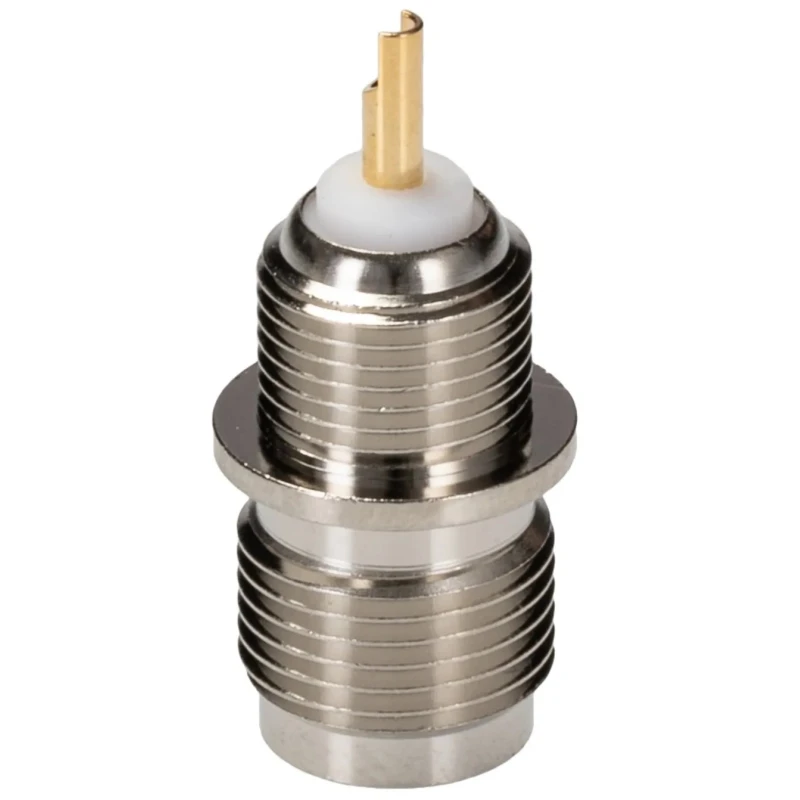

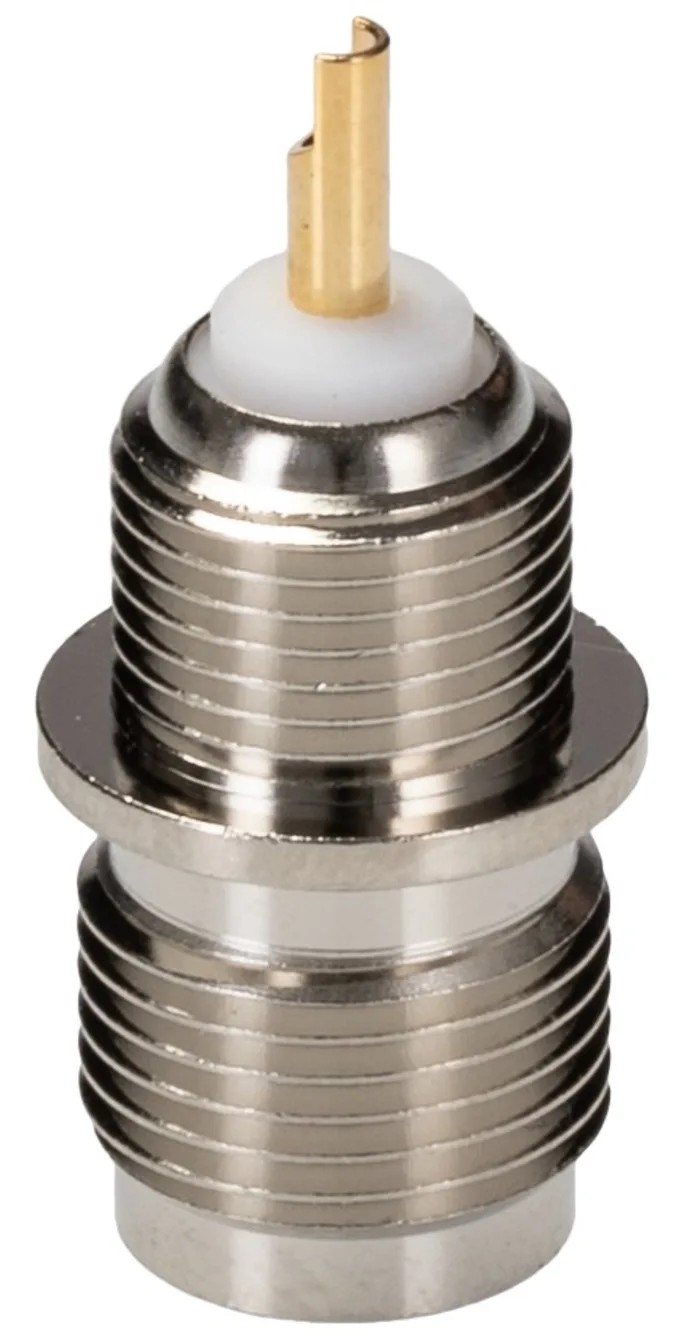

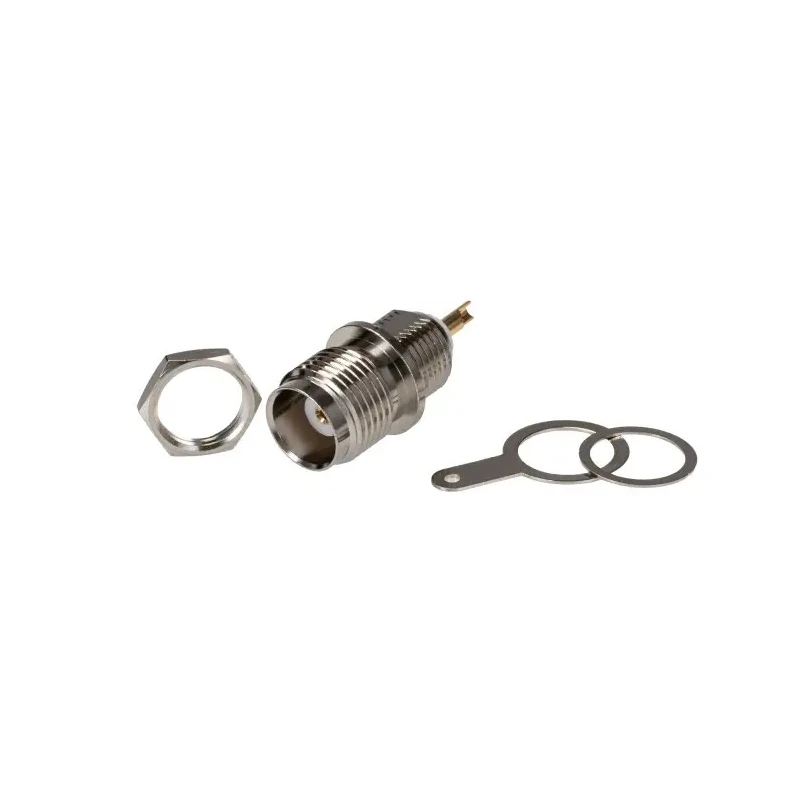

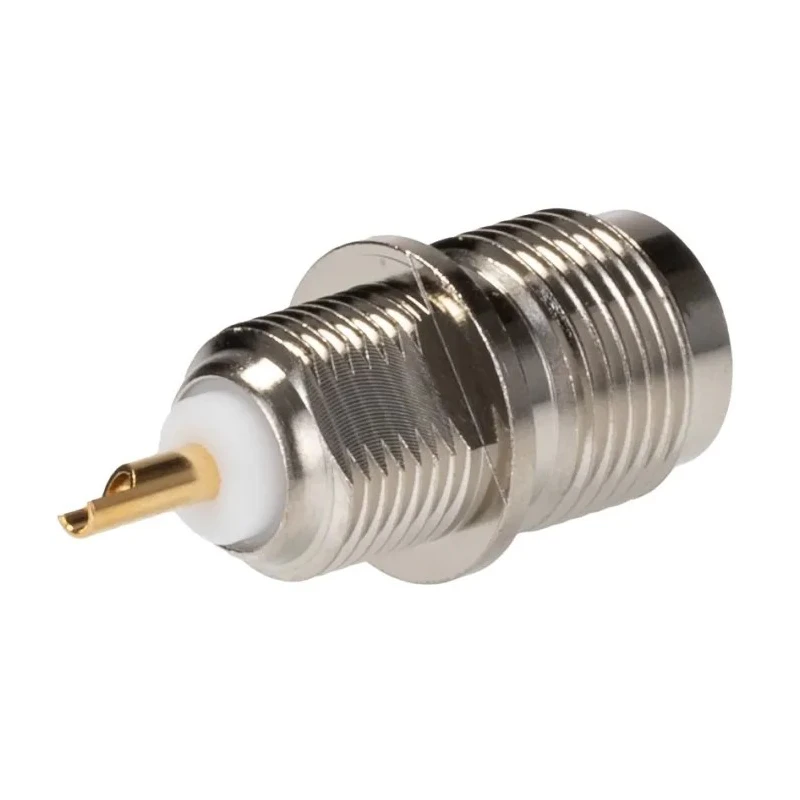

Telegartner TNC Series Coaxial Connector Bulkhead Mount Female, 50 Ω, Straight Body Solder Termination 136-875
Specifications
| Country of Origin | India |
|---|---|
| Frequency range | Up to 4 GHz, suitable for high-frequency applications |
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Temperature range | -65°C to +165°C, suitable for extreme environmental conditions |
| Model | 136-875 |
| Mount Type | Bulkhead Mount |
| Contact Material | Copper Alloy |
| Series | TNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Insulation Material | Polytetrafluoroethylene (PTFE) for excellent dielectric properties and thermal stability |
| Voltage Rating | 500 V RMS at sea level |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | TNC |
| Body Plating | Nickel |
| VSWR | 1.3 max at 4 GHz, ensuring minimal signal loss and reflection |
| RS PRO, jack Panel Mount, 50Ω, Solder Termination, Straight BodyBrand | Telegartner |
Key Features
- Nickel-plated brass body provides excellent corrosion resistance and durability.
- Gold-plated copper alloy contacts ensure superior conductivity and reliable signal transfer.
- Supports frequency range up to 4 GHz suitable for high-frequency applications.
- Temperature range from -65°C to +165°C enables use in extreme environmental conditions.
- Straight orientation with threaded bulkhead mount ensures secure mechanical and electrical connection.
- Designed for use in communications, radar, broadcasting, and antenna systems.
- Polytetrafluoroethylene (PTFE) insulation material offers excellent dielectric properties and thermal stability.
Product Description
RS PRO 136-875 TNC Series Coaxial Connector Bulkhead Mount Female is a high-performance RF connector engineered for secure and reliable signal transmission in demanding electronic environments. Featuring a straight body design and solder termination, it ensures clean and robust connections with 50 ohm impedance.
The nickel-plated brass body offers strong mechanical protection and corrosion resistance, making the connector durable and long-lasting. The gold-plated copper alloy contacts provide excellent conductivity and signal integrity, essential for sensitive RF applications.
This connector supports frequencies up to 4 GHz, making it ideal for high-frequency operations such as communications systems, radar installations, broadcasting equipment, and mobile antenna arrays. Its operating temperature range from -65°C to +165°C allows for reliable functionality in harsh and extreme environmental conditions.
The bulkhead mount design with a threaded screw-fit offers a robust mechanical and electrical link, ensuring the connector remains securely in place even under vibration or movement. PTFE insulation further enhances dielectric performance and thermal stability to maintain consistent signal quality.
Nickel-plated brass body provides corrosion resistance. Gold-plated copper alloy contacts ensure excellent conductivity. Frequency range up to 4 GHz for RF applications. Operating temperature suitable for harsh environments.
Bulkhead mount with threaded screw-fit enhances mechanical security. Solder termination for reliable electrical contact. Voltage rating of 500 V RMS for operational safety. PTFE insulation offers excellent dielectric properties.
This RS PRO coaxial connector is well suited for industrial, telecommunications, laboratory, and commercial applications requiring dependable RF connections. It combines rugged construction with precision electrical characteristics, supporting a wide range of high-frequency equipment installations.
Explore the RS PRO brand and similar Coaxial Connectors in the Electronics Components category at EnvMart for quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a frequency range of up to 4 GHz, making it suitable for high-frequency applications.
It operates within a temperature range of -65°C to +165°C, allowing for use in extreme environmental conditions.
This connector features a solder termination type, ensuring reliable electrical contact.
The impedance of this model is 50Ω, which is standard for RF applications.
It has a nickel-plated brass body for corrosion resistance, with gold-plated copper alloy contacts for excellent conductivity.
This unit features a bulkhead mount design with a threaded screw-fit, ensuring a secure mechanical and electrical connection.
The voltage rating for this model is 500 V RMS at sea level, ensuring operational safety.
It uses polytetrafluoroethylene (PTFE) insulation, which offers excellent dielectric properties and thermal stability.
The VSWR rating is 1.3 max at 4 GHz, which ensures minimal signal loss and reflection.
This model has a female contact gender, suitable for connecting to male counterparts in RF applications.
The connector is manufactured in India.
It is designed for use in communications, radar, broadcasting, and antenna systems, supporting various RF applications.
