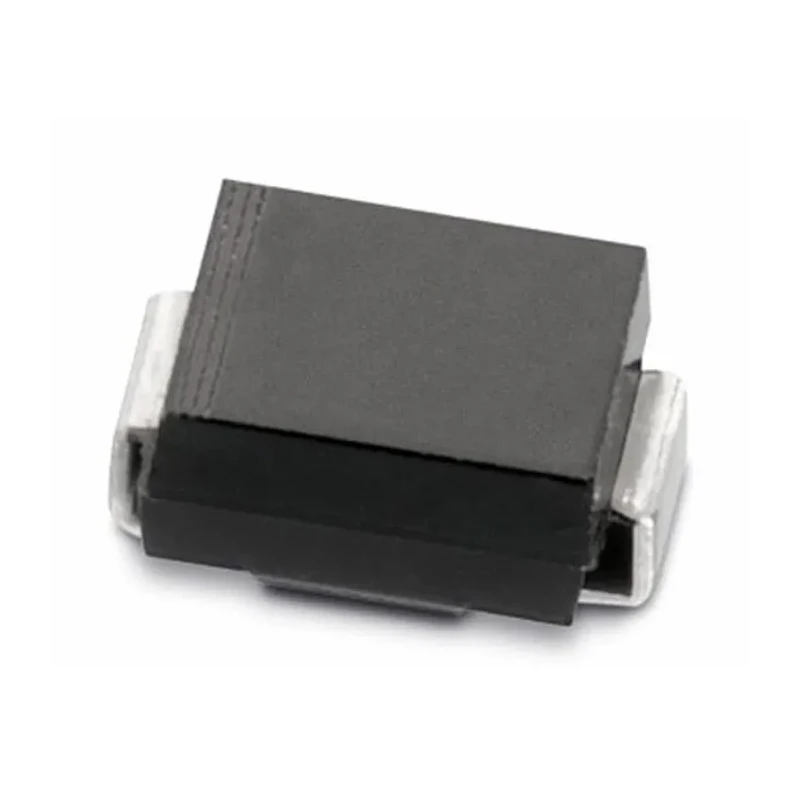

Wurth Elektronik Uni-Directional 600W 2-Pin DO-214 TVS Diode 824520511

Wurth Elektronik 824520511 is a high-performance uni-directional Transient Voltage Suppression (TVS) diode designed for protecting sensitive electronic circuitry from voltage spikes and surges. With a peak pulse power dissipation of 600 watts and a compact 2-pin DO-214 surface mount package, this diode provides robust protection in a space-saving form factor.

This TVS diode features a minimum breakdown voltage of 59.7 volts and a clamping voltage of 82.4 volts, ensuring circuit components are safeguarded against overvoltage transients. Its glass passivated junction and fast response time contribute to its effectiveness in mitigating voltage spikes efficiently.

The component operates reliably over a broad temperature range from -65°C to 150°C, making it suitable for various industrial, automotive, and electronic applications exposed to harsh environments. The maximum peak pulse current rating of 7.3 amperes allows it to handle significant transient events without failure. This product incorporates a single element per chip configuration and features a 2-pin design optimized for surface mounting.

Dimensionally compact at 4.32mm length, 3.62mm width, and 2.3mm height, the device facilitates design flexibility in modern electronic circuits. Although it does not possess specific standards or automotive certifications, its performance characteristics make it ideal for power supply, telecommunications, and general electronic protection use cases.

Uni-directional diode configuration ensures effective voltage suppression. Operates at a minimum breakdown voltage of 59.7V for circuit protection. Surface mount design with a robust DO-214 package type. Clamping voltage rated at 82.4V maximizes transient voltage suppression.

Wide operating temperature range from -65°C to 150°C for reliability under extreme conditions. Fast response time suitable for sensitive electronic protection. Single element per chip for focused surge protection. Pin count: 2, compatible with standard surface mount technology.

Maximum peak pulse current of 7.3A sustains high transient currents. Compact dimensions: 4.32mm length, 3.62mm width, and 2.3mm height.

This Wurth Elektronik TVS Diode is optimized for industrial, electronics manufacturing, telecommunications, and power management applications where transient voltage suppression is critical to enhance product reliability. Its surface mount technology package allows easy integration into automated assembly lines and dense PCB layouts.
