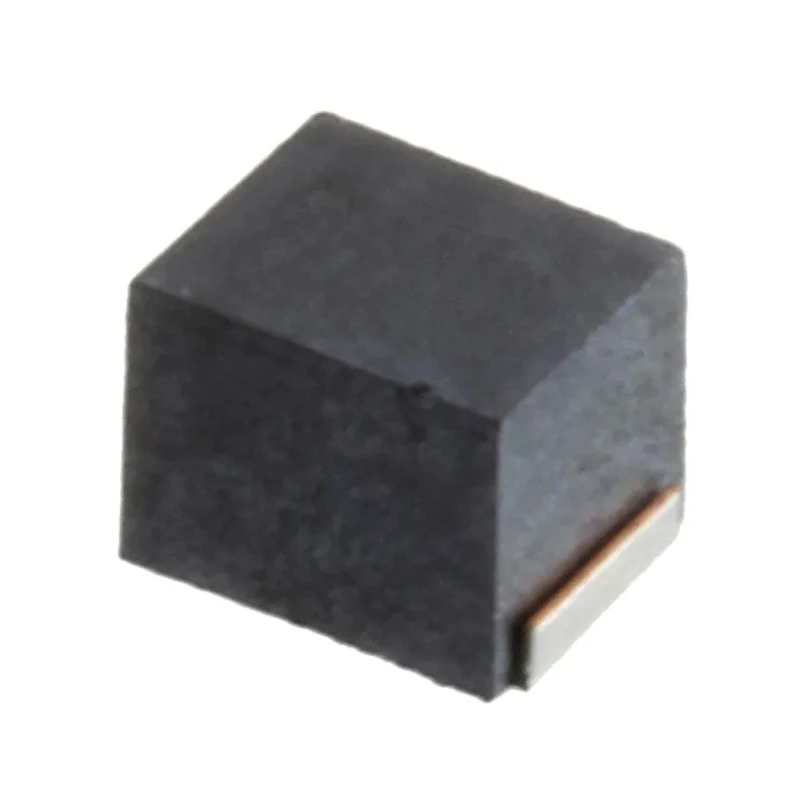

TDK 3225 Shielded Wirewound Surface Mount Inductor with Ferrite Core 150 μH ±10% 50 mA NLFV32T-151K-EF
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLFV32T-151K-EF |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | NLFV-EF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 150μH |
| Standards/Approvals | RoHS |
| Package/Case | 3225 |
| Maximum DC Current | 50mA |
| Pin Count | 2 |
| Maximum DC Resistance | 2.9Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
Key Features
- Magnetic shield type containing ferrite powder in exterior mould resin for excellent EMI reduction.
- Compact 3225 surface mount package with dimensions 3.2mm length, 2.5mm depth, and 2.2mm height.
- Wirewound construction providing stability and high-quality inductance for decoupling circuits.
- Suitable for use in smart meters, audio-visual equipment, xDSL, mobile base stations, and industrial communication devices.
- Temperature range from -40°C to 105°C with RoHS compliant materials.
- Termination style is solder, ensuring reliable PCB mounting and electrical connection.
- Maximum DC resistance of 2.9 Ω supporting efficient current flow with minimal losses.
- Packaged on tape and reel for automated assembly processes enhancing manufacturing efficiency.
Product Description
TDK NLFV32T-151K-EF is a 3225 shielded wirewound surface mount inductor featuring a ferrite core, designed for high performance in compact electronic circuits. It offers an inductance of 150 μH with ±10% tolerance, supporting a maximum DC current of 50 mA, making it ideal for low current filtering and decoupling applications.
The inductor's magnetic shield type construction incorporates ferrite powder within an exterior mould resin, which effectively reduces electromagnetic interference (EMI), enhancing signal integrity in sensitive electronic and communication devices.
Measuring 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height, the 3225 package allows versatile surface mounting on printed circuit boards (PCBs), with solder termination style for robust electrical connections.
This component operates reliably within a temperature range from -40°C to 105°C, ensuring stability even in demanding industrial and commercial environments. The coil is wirewound for precise inductance and durability.
Applications include smart meters, audio and visual equipment, xDSL modems, mobile base stations, and other communication infrastructure devices requiring compact, high-quality inductors. The component is RoHS compliant, supporting environmental safety standards.
Magnetic shield type construction reduces EMI. Compact 3225 package supports surface mount technology. Wirewound inductor for stable performance. Wide operating temperature range from -40°C to 105°C. Ferrite core provides high inductance and efficiency.
Solder termination ensures reliable PCB mounting. Maximum DC resistance of 2.9 Ω. Packaged in tape and reel format for automated assembly.
Choose the TDK NLFV32T-151K-EF for reliable, compact inductive components suitable for industrial, telecommunications, consumer electronics, and manufacturing applications. Explore further TDK Surface Mount Inductors for diverse electronic assembly needs with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDK NLFV32T-151K-EF has an inductance value of 150 μH with a tolerance of ±10%.
This model supports a maximum DC current of 50 mA, making it suitable for low current applications.
The dimensions of the 3225 package are 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height.
It operates reliably within a temperature range from -40°C to 105°C.
This inductor features a wirewound construction, which provides stability and high-quality inductance.
It is packaged on tape and reel, which enhances manufacturing efficiency for automated assembly processes.
The maximum DC resistance is 2.9 Ω, supporting efficient current flow with minimal losses.
Yes, the TDK NLFV32T-151K-EF is RoHS compliant, supporting environmental safety standards.
It is suitable for use in smart meters, audio-visual equipment, xDSL, mobile base stations, and industrial communication devices.
The core material is ferrite, which contributes to its performance in reducing electromagnetic interference (EMI).
This model uses a solder termination style, ensuring reliable PCB mounting and electrical connection.
This inductor belongs to the NLFV-EF series, which includes shielded wirewound inductors.
