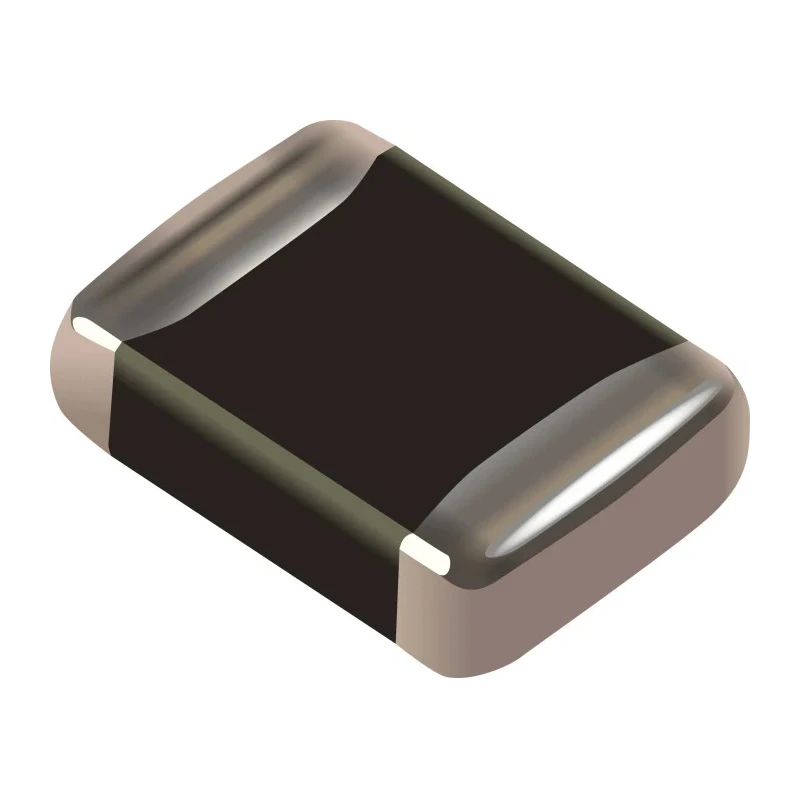

Bourns AV Varistor 8 nF 10 A Clamping Voltage 44 V Varistor Voltage 27 V Surface Mount 2220 AV17K2220122NIR1

Bourns AV17K2220122NIR1 AV Varistor is a high-performance surface mount protection component designed to suppress transient voltages in electronic and electrical circuits. It offers a capacitance of 8 nF and withstands clamping currents up to 10 A, making it ideal for safeguarding sensitive devices against voltage spikes.

This varistor features a clamping voltage of 44 V and a varistor voltage of 27 V, with maximum AC and DC voltages rated at 17 V and 20 V respectively. The robust metal construction and compliance with RoHS standards ensure durability and environmental safety.

Designed in a compact 2220 package size with dimensions of 5.7 mm length and 1.4 mm thickness/depth, it is optimized for space-saving PCB layout and surface mount assembly. Operating temperature ranges from -55°C to 125°C allow use in various industrial, electronic, and manufacturing applications.

The AV Series varistors by Bourns provide excellent transient energy distribution with an energy rating of 0.3 J and a maximum surge current capacity of 2 kA. This product offers designers greater circuit board layout flexibility compared to silicon TVS diodes due to its small size and pad area requirements.

Applications include protection in power supplies, electronic control devices, industrial electronics, and consumer electronics where transient voltage suppression is critical. The varistor's reliable performance and quality manufacturing origin in Slovenia ensure long-term operational safety.

The varistor has a capacitance of 8 nF supporting high-frequency noise suppression. It features a clamping voltage of 44 V and a varistor voltage of 27 V for effective protection. Maximum clamping current is rated at 10 A ensuring durability under surge conditions.

Surface mount type with 2220 package size allows compact PCB design and ease of assembly. Operating temperature ranges from -55°C to 125°C for reliability across environments. The product has a metal construction and RoHS compliance for environmental safety.

Energy rating is 0.3 joules suitable for transient voltage suppression applications. Maximum AC voltage is 17 V and DC voltage is 20 V, fitting diverse circuit requirements. Length dimension is 5.7 mm with thickness and depth of 1.4 mm each, optimizing space usage.

Manufactured in Slovenia maintaining stringent quality and performance standards. Explore additional surge protection components and AV series Varistors on EnvMart for comprehensive circuit protection solutions.
