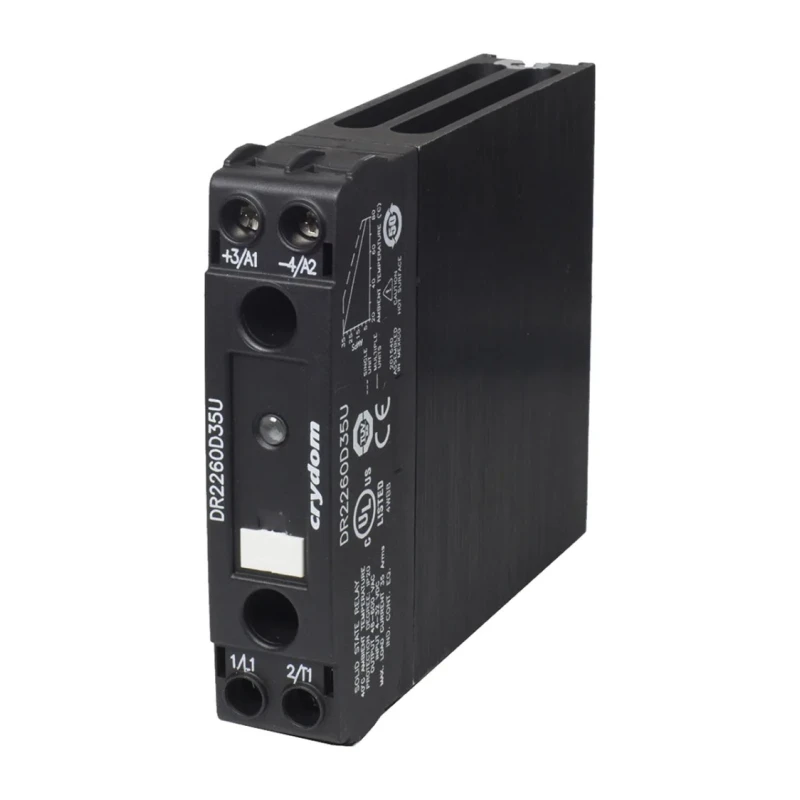

Crydom DR22 Series Solid State Relay 30 A Load 600 Vrms Load 4-32V DC Control DIN Rail Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 91.9mm |
| Length | 22.5mm |
| Model | DR22 |
| IP Rating | IP20 |
| Width | 116mm |
| Mount Type | DIN Rail |
| Output type | MOSFET |
| Series | DR22 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SP |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 30A |
| Standards/Approvals | CE, RoHS |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 1mA |
Key Features
- Supports DIN rail mounting for convenient installation.
- Operates with control voltage ranging from 4V dc to 32V dc.
- Featuring zero voltage switching for reduced electrical noise.
- Built with MOSFET output type for high efficiency and reliability.
- Wide operating temperature range from -40°C to 80°C.
- Provides IP20 touch-safe housing protection.
- LED input indicator for operational status.
- Capacitance of 8pF helps in signal integrity.
Product Description
Crydom DR2260D30W is a DIN rail mount solid state relay from the DR22 series designed for heavy-duty industrial and automation applications. It supports a maximum load current of 30 A and a load voltage of up to 600 Vrms, featuring a compact 22.5mm wide package that ensures efficient space utilization.
This relay uses MOSFET output technology and offers zero voltage switching, which minimizes electrical noise and prolongs the lifespan of connected equipment. It supports control voltages ranging from 4V dc to 32V dc, making it compatible with a variety of control systems.
The device operates reliably within a wide temperature range from -40°C up to 80°C and is rated with an IP20 touch-safe housing to protect against accidental contact. The durable DIN rail mounting and screw terminal system allow easy installation and maintenance.
Additional features include an LED input indicator for quick visual confirmation of operational status and an internal capacitance rating of 8 pF, contributing to stable performance in signal-sensitive environments. The product complies with CE and RoHS directives, ensuring safety and environmental standards adherence.
This solid state relay is ideal for industrial, manufacturing, HVAC, and automation system applications where robust switching and long-term reliability are critical. Its low leakage current of 1mA and compact footprint add to installation flexibility and energy efficiency.
Supports DIN rail mounting for easy and secure installation. Zero voltage switching reduces electrical interference and noise. MOSFET output provides high performance and reliability. Wide operating temperature range of -40°C to 80°C suits harsh industrial conditions.
IP20 rated housing ensures operator safety. LED input indicator simplifies system monitoring. Capacitance of 8pF maintains signal integrity. Screw terminal type for robust electrical connections. Complies with CE and RoHS standards.
Compact 22.5 mm width allows efficient panel space usage. Explore EnvMart's extensive catalogue for more industrial Solid State Relays and automation equipment to enhance your system performance and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 30 A.
It operates with a control voltage ranging from 4V DC to 32V DC.
This solid state relay features a MOSFET output type, which provides high efficiency and reliability.
The relay operates reliably within a temperature range of -40°C to 80°C.
It has an IP20 rating, providing touch-safe housing protection.
This model supports DIN rail mounting for convenient installation.
The internal capacitance rating is 8 pF, which helps maintain signal integrity.
The dimensions are 22.5 mm in width, 91.9 mm in height, and 116 mm in length.
It uses a screw terminal type for robust electrical connections.
This unit features zero voltage switching, which reduces electrical noise and prolongs equipment lifespan.
It complies with CE and RoHS directives, ensuring adherence to safety and environmental standards.
The off-state leakage current is rated at 1 mA.
