Crydom 1-DC Series Solid State Relay Panel Mount 7A Load 500V Load 32V Control D5D07
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 23mm |
| Length | 45.7mm |
| Model | D5D07 |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | 1-DC |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 7A |
| Standards/Approvals | UR, CSA, RoHS |
| Maximum Load Voltage | 500V |
| Minimum Load Voltage | 400V |
| Minimum Control Voltage | 3.5V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 0.1mA |
Key Features
- Supports panel mounting installation for secure placement.
- Operates within a load voltage range of 400V to 500V.
- Control voltage range from 3.5V dc to maximum 32V control voltage.
- Feature screw terminals for easy wire connections without special tools.
- Designed with zero cross switching for efficient load control.
- Wide operating temperature range from -20°C to 80°C for harsh environments.
- Capacitance rated at 8pF with off state leakage current of 0.1mA.
Product Description
Crydom D5D07 1-DC Series Solid State Relay is engineered for reliable switching of low-power DC loads in industrial automation and control applications. This panel mount relay offers a maximum load current of 7 amperes and can handle load voltages up to 500 volts, suitable for a broad range of electronic control systems.
It features screw terminal connections enabling straightforward installation and maintenance without the need for specialized tools. The relay employs zero cross switching technology which enhances efficiency and reduces electrical noise during the switching process.
Robust construction ensures reliable performance within an operating temperature range from -20°C to 80°C, making it suitable for harsh environments. The device is epoxy-free, minimizing deformation risks during thermal expansion and contraction. Integrated anti-rotation barriers provide resistance against vibration, extending device durability in industrial settings.

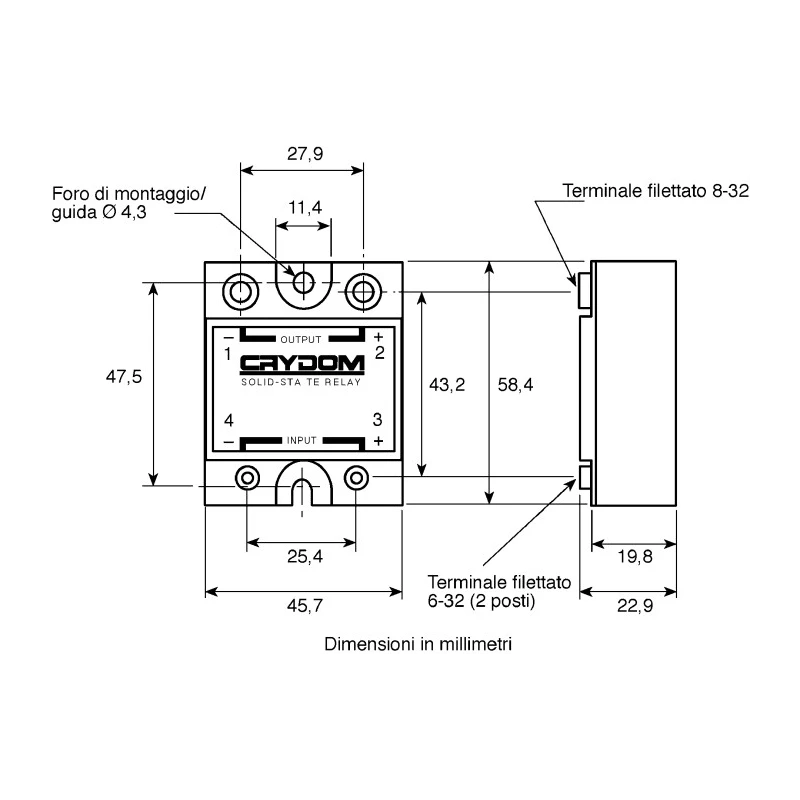

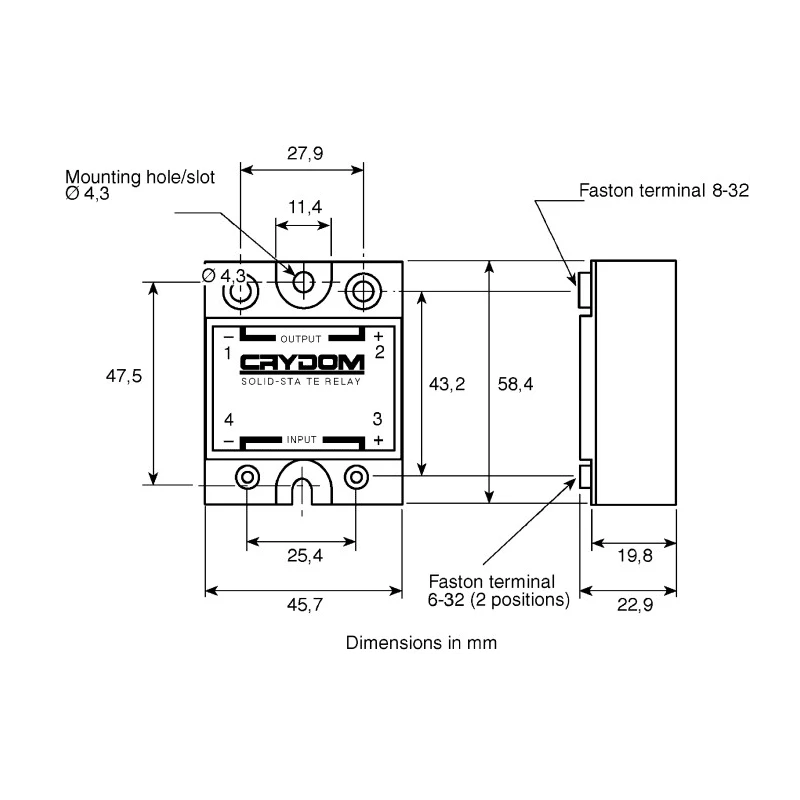

This model complies with UR, CSA, and RoHS safety and environmental standards, validating its quality and adherence to industry regulations. Its compact size, with dimensions of 45.7mm length, 22.6mm width, and 23mm height, makes it convenient for various panel mounting applications.
Supports panel mounting installation for secure placement. Operates within load voltage range of 400V to 500V. Control voltage range from 3.5V dc to maximum 32V control voltage. Feature screw terminals for easy wire connections without special tools.
Designed with zero cross switching for efficient load control. Wide operating temperature range from -20°C to 80°C for harsh environments. Capacitance rated at 8pF with off state leakage current of 0.1mA. Compact dimensions: length 45.7mm, width 22.6mm, height 23mm.
This solid state relay is ideal for industrial automation, manufacturing processes, electrical signal conditioning, and other applications requiring dependable, low-maintenance electrical switching components. For more quality components, explore the Electronics & Electricals category and Solid State Relay listings on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 7 amperes.
It operates within a load voltage range of 400V to 500V.
The control voltage range is from 3.5V DC to a maximum of 32V.
The dimensions are 45.7mm in length, 22.6mm in width, and 23mm in height.
This model supports panel mounting installation for secure placement.
It has a wide operating temperature range from -20°C to 80°C.
It features screw terminals for easy wire connections without special tools.
It is designed with zero cross switching for efficient load control.
The off state leakage current is rated at 0.1mA.
This model complies with UR, CSA, and RoHS safety and environmental standards.
The capacitance is rated at 8pF.
The relay is manufactured in India.
