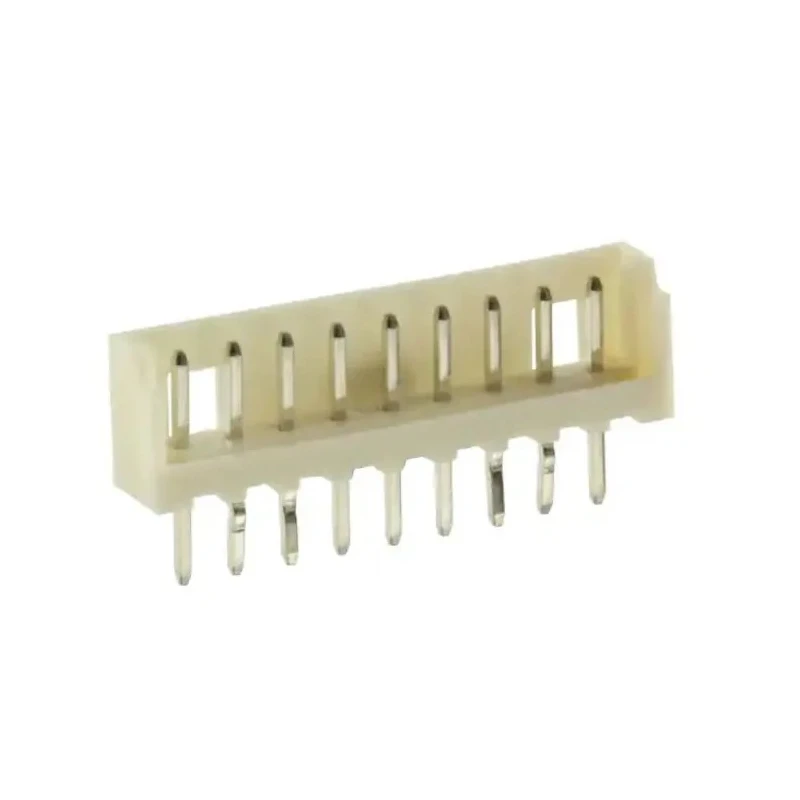

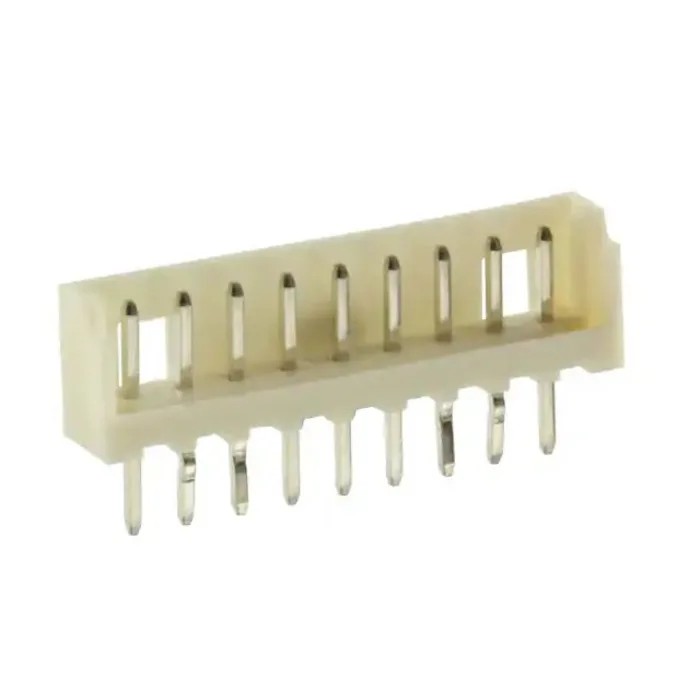

Molex Micro-Latch Series Vertical Through Hole PCB Header, 9 Contact, 2 mm Pitch, 1 Row, Shrouded 532530970
Specifications
| Country of Origin | Vietnam |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Micro-Latch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Standards/Approvals | UL E29179 |
| Contact Plating | Tin |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- This PCB header supports a maximum current of 2A for efficient power delivery.
- Constructed with a nylon housing ensuring high durability and insulation.
- Shrouded design provides added protection and prevents misalignment during mating.
- Contacts are brass with tin plating to resist corrosion and maintain conductivity.
- Suitable for through hole mounting with vertical orientation, enabling secure PCB integration.
- Rated for operation in temperature ranges from -40°C to 105°C for versatile environmental applications.
- Tail pins measure 3.5 mm in length, providing reliable solder termination.
- Compliant with UL E29179 standards for assured safety and quality.
Product Description
Molex 532530970 Micro-Latch Series Vertical Through Hole PCB Header is engineered with 9 male contacts arranged in a single row with a 2 mm pitch, offering reliable wire-to-board connection solutions.
This PCB header utilizes a durable nylon housing material to withstand mechanical and environmental stresses, and features a shrouded design that ensures secure mating and addresses connection integrity.
Brass contacts plated with tin enhance conductivity and resist corrosion, suitable for various electronic applications requiring both signal and power transmission at currents up to 2 amperes and voltages up to 125 volts.
Designed for through hole mounting with a vertical orientation, it offers ease of PCB integration and soldering with tail pin lengths of 3.5 mm. Operating temperature spans from -40°C to 105°C, supporting diverse industrial and commercial conditions.
This header complies with UL E29179 safety standards, reflecting quality assurance for demanding electrical environments. This PCB header supports a maximum current of 2A for efficient power delivery. Constructed with a nylon housing ensuring high durability and insulation.
Shrouded design provides added protection and prevents misalignment during mating. Contacts are brass with tin plating to resist corrosion and maintain conductivity. Suitable for through hole mounting with vertical orientation, enabling secure PCB integration.
Rated for operation in temperature ranges from -40°C to 105°C for versatile environmental applications. Tail pins measure 3.5 mm in length, providing reliable solder termination. Compliant with UL E29179 standards for assured safety and quality.
Ideal for use in electronics manufacturing, industrial automation, telecommunications, and computing hardware assembly, this Molex PCB header offers robust performance and dependable connections.
Explore more advanced PCB Headers and connectors in our Electronics Components category on EnvMart for all your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 2A, enabling efficient power delivery.
The contacts have a pitch size of 2 mm, allowing for compact and efficient connections.
This model features 9 male contacts arranged in a single row, providing reliable wire-to-board connections.
The housing is constructed from nylon, while the contacts are made of brass with tin plating to enhance conductivity and resist corrosion.
It is designed for through hole mounting with a vertical orientation, facilitating secure PCB integration.
The tail pins measure 3.5 mm in length, providing reliable solder termination for secure connections.
Yes, it complies with UL E29179 standards, ensuring safety and quality for electrical applications.
This header utilizes a wire-to-board connector system, suitable for connecting wires directly to a PCB.
It is ideal for use in electronics manufacturing, industrial automation, telecommunications, and computing hardware assembly.
It has a shrouded design that provides added protection and prevents misalignment during mating.
