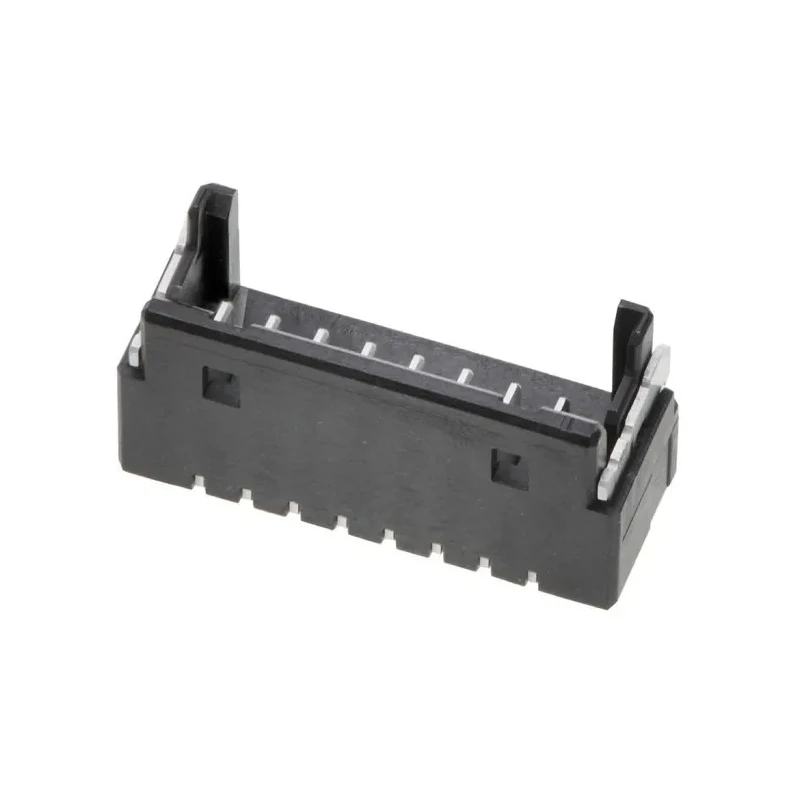

Molex OneBlade Series Vertical Surface PCB Header 8 Contacts 1 mm Pitch 2 Row Shrouded 214094-0080

Molex 214094-0080 OneBlade Series Vertical Surface PCB Header is a high-quality connector designed for secure wire-to-board applications. Featuring 8 contacts arranged in 2 rows with a 1 mm pitch, this PCB header ensures reliable electrical performance through its copper contacts plated with tin for optimal conductivity and corrosion resistance.

The housing is made of thermoplastic, providing durability and withstands operation within a temperature range of -20°C to 105°C, suitable for demanding industrial and electronic environments. The vertical orientation combined with surface mount technology allows for compact PCB designs and efficient assembly processes.

The connector system supports up to 2.5 amps of current, making it appropriate for moderate power electronic circuits. It is shrouded and features male contact gender, offering additional protection against accidental damage and ensuring proper mating with corresponding connectors.

The design incorporates a row pitch of 3 mm and solder termination for secure and lasting mounting on printed circuit boards. The mating pin length of 2 mm facilitates good electrical contact during connection cycles, rated for durability of up to 30 mating cycles maximally.

Compliant with RoHS and UL standards, this Molex PCB header promotes safer and environmentally responsible use. It is ideal for applications in industrial controls, computer peripherals, telecommunications equipment, and other electronics requiring reliable connector interfaces.

Constructed with thermoplastic housing for durability. Supports 2.5A current capacity suitable for various electronic applications. Vertical orientation with a surface mount type for efficient PCB assembly. Contact material is copper with tin plating for reliable conduction.

Operating temperature range from -20°C to 105°C for versatile environments. Designed with a row pitch of 3 mm and mating pin length of 2 mm. Termination is via soldering ensuring secure connections. Male contact gender with shrouded design enhances protection and connection security.

Complies with RoHS and UL standards for safety and environmental compliance. Explore more in our PCB Headers category at EnvMart to find comprehensive connector solutions for your electronic assemblies.
