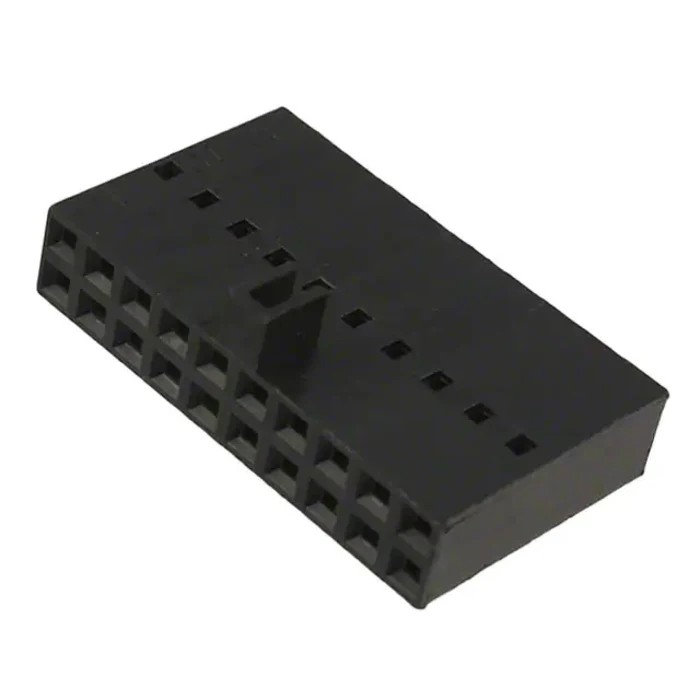

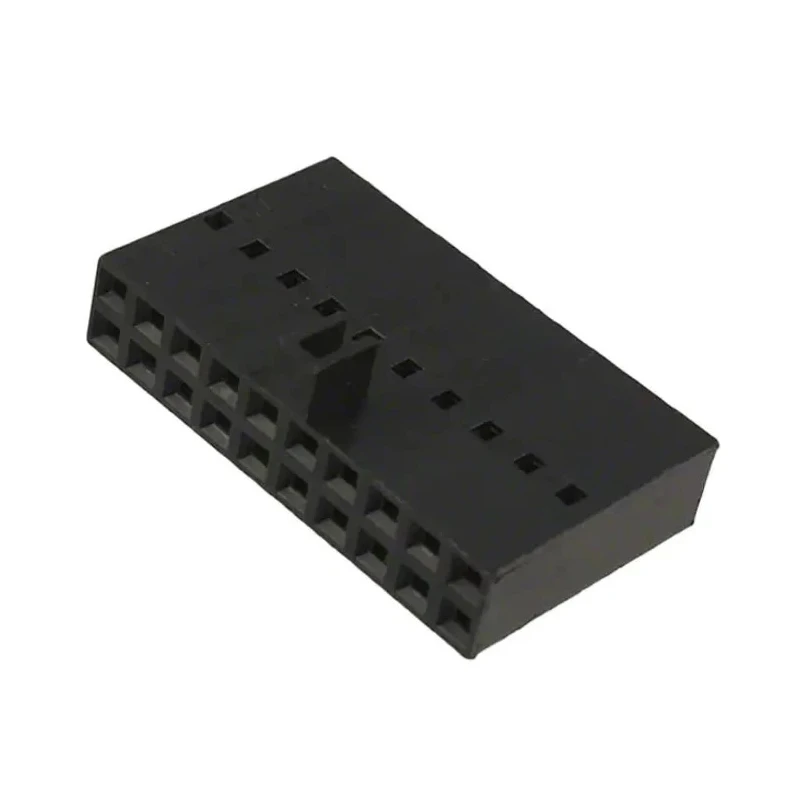

Molex 70450 Female Crimp Connector Housing 2.54 mm Pitch 20 Way 2 Row Straight 22552202
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 25.37mm |
| Model | 22552202 |
| Width | 5.05mm |
| Mount Type | Panel |
| Housing Material | Polyester |
| Series | 70450 |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | 71851, 70280, 70247 Use With 70058, 70246, 2.54 mm Pitch C-Grid Header 70229 |
| Standards/Approvals | Not Low-Halogen, Halogen-Free Status, EU RoHS China RoHS Per - D(2020)4578-DC (25 June 2020) |
| Number of Contacts | 20 |
| Connector Gender | Female |
Key Features
- This connector housing is made from durable polyester material.
- It features a straight orientation suitable for panel mounting.
- The connector is compliant with EU RoHS and China RoHS standards.
- Compatible with Molex 71851, 70280, 70247, 70058, and 70246 headers.
- Manufactured in the United States with stringent quality controls.
- Offers 20 contacts arranged in 2 rows with a 2.54 mm pitch.
- Compact dimensions of 25.37 mm length and 5.05 mm width.
- Female connector gender designed for precise PCB applications.
Product Description
Molex 22552202 Female Crimp Connector Housing is a high-quality electronic connector housing featuring 20 contacts arranged in 2 rows with a standard 2.54 mm pitch. Made from robust polyester material, this connector housing is designed for panel mounting with a straight orientation to facilitate easy and secure connection in electronic assemblies.
The precise dimensions of 25.37 mm in length and 5.05 mm in width make it suited for PCB connector applications requiring compact and reliable interfaces. Its female connector gender complements various mating male headers, offering versatile compatibility with Molex 71851, 70280, 70247, 70058, and 70246 series, including the 2.54 mm pitch C-Grid Header 70229.
Manufactured in the United States, this component adheres to strict quality standards and complies with environmental directives such as EU RoHS and China RoHS, ensuring it is free from hazardous substances. The housing is non-low-halogen but meets halogen-free status suitable for many industrial and commercial applications.
This connector housing is ideal for use in electronic component manufacturing, industrial automation, and equipment requiring reliable wire housing solutions. It provides dependable electrical connections in power and control circuits, ensuring long-lasting performance under various operating conditions.
This connector housing is made from durable polyester material. Features a straight orientation suitable for panel mounting. Compliant with EU RoHS and China RoHS standards. Compatible with Molex 71851, 70280, 70247, 70058, and 70246 headers.
Manufactured in the United States with stringent quality controls.
For professionals looking for reliable and industry-standard PCB connector housings, this Molex 70450 series product is an excellent choice. Explore similar Molex Connector Housings and other electronic components on EnvMart for diverse application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm.
This housing supports 20 contacts arranged in 2 rows.
The dimensions of the housing are 25.37 mm in length and 5.05 mm in width.
It is made from durable polyester material.
The orientation of this connector housing is straight, suitable for panel mounting.
This housing is compatible with Molex 71851, 70280, 70247, 70058, and 70246 headers, as well as the 2.54 mm pitch C-Grid Header 70229.
Yes, it is compliant with EU RoHS and China RoHS standards and is halogen-free.
This connector housing features a female connector gender.
The country of origin for this housing is the United States.
This connector housing is designed for panel mounting.
The series name of this connector housing is 70450.
Yes, it has a halogen-free status and is not low-halogen, complying with environmental directives.
