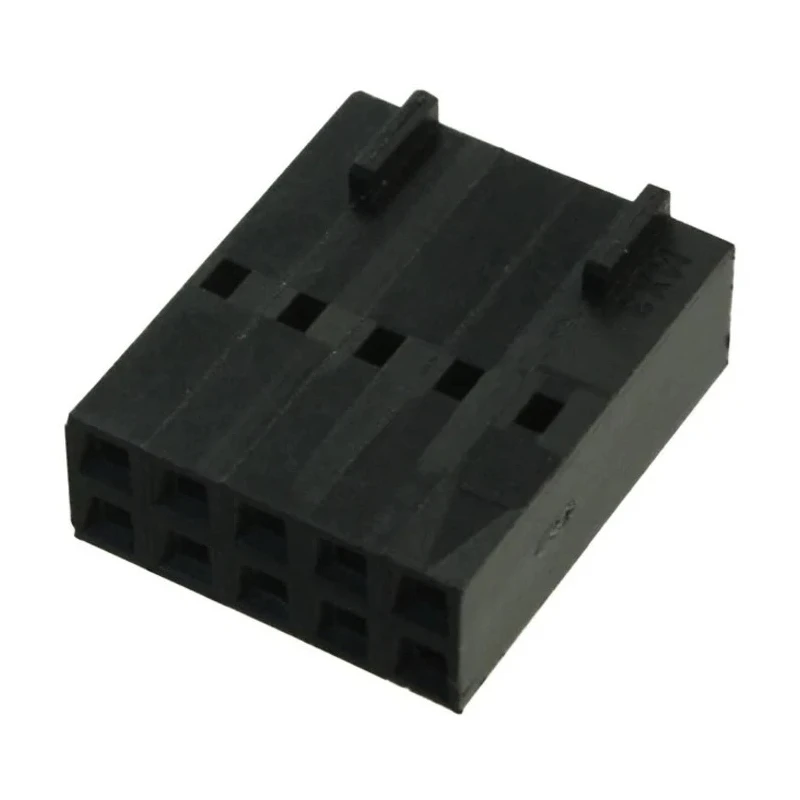

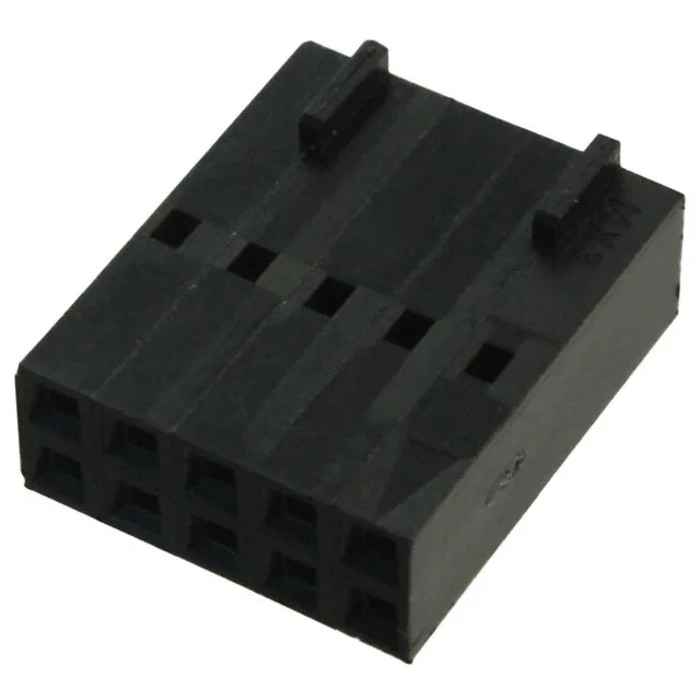

Molex 10 Way 2 Row Straight Female Crimp Connector Housing 2.54 mm Pitch Polyester 22552103
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 12.67mm |
| Model | 22552103 |
| Width | 5.05mm |
| Mount Type | Wire-to-Board |
| Housing Material | Polyester |
| Series | 70450 |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | 2.54 mm Pitch C-Grid Header 70229, 70246, 70247, 70280 |
| Standards/Approvals | UL E29179, CSA LR19980 |
| Number of Contacts | 10 |
| Connector Gender | Female |
Key Features
- Constructed with durable polyester housing material.
- Designed for use with 2.54 mm Pitch C-Grid Header models 70229, 70246, 70247, and 70280.
- Features 10 contacts arranged in two rows for secure electrical connections.
- Includes straight orientation for easy board mounting.
- Meets UL E29179 and CSA LR19980 safety standards.
- Compact dimensions with 12.67 mm length and 5.05 mm width.
- Suitable for industrial and electronic applications requiring reliable wire-to-board interfacing.
Product Description
The Molex 22552103 Female Crimp Connector Housing is a high-quality, industrial-grade wire-to-board connector housing featuring 10 contacts in a 2-row straight configuration with a 2.54 mm pitch.
It is constructed from robust polyester housing material, ensuring durability and electrical insulation for electronics and industrial equipment.
This connector housing is compatible with 2.54 mm Pitch C-Grid Header series, including models 70229, 70246, 70247, and 70280, providing reliable mating with industry-standard headers.
The straight orientation simplifies board mounting while maintaining secure contact placement for consistent electrical performance. Compact at 12.67 mm in length and 5.05 mm in width, this component minimizes PCB space usage, making it ideal for dense electronic assemblies and industrial wire harnesses.
Durable polyester material housing ensures excellent insulation and mechanical stability. Complies with UL E29179 and CSA LR19980 standards for safety and quality assurance. Female connector design optimized for crimp contacts guarantees secure wire connections.
Two-row, 10-way contact configuration increases connection density. Pitch size of 2.54 mm aligns with common industry spacing for PCB connectors. Widely used in industrial, manufacturing, electronic component assembly, and wire harness applications.
Origin: United States, reflecting compliance with international quality manufacturing standards. This Molex connector housing is suitable for various industrial and electronic sectors, including manufacturing, automation, communication equipment, and power distribution.
For catalog browsing of similar high-quality Connector Housing products, explore the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 2.54 mm, which aligns with common industry spacing for PCB connectors.
This connector housing features 10 contacts arranged in a two-row configuration.
The Molex 22552103 connector housing has a straight orientation, facilitating easy board mounting.
The connector housing measures 12.67 mm in length and 5.05 mm in width.
It is designed for use with 2.54 mm Pitch C-Grid Header models 70229, 70246, 70247, and 70280.
The housing is constructed from durable polyester material, providing electrical insulation and mechanical stability.
This connector housing complies with UL E29179 and CSA LR19980 safety standards.
It supports wire-to-board mounting, making it suitable for various electronic applications.
This model is suitable for industrial, manufacturing, electronic component assembly, and wire harness applications.
The country of origin for this connector housing is the United States.
The two-row, 10-way contact configuration increases connection density, allowing for more efficient use of PCB space.
This connector housing belongs to the 70450 series.
