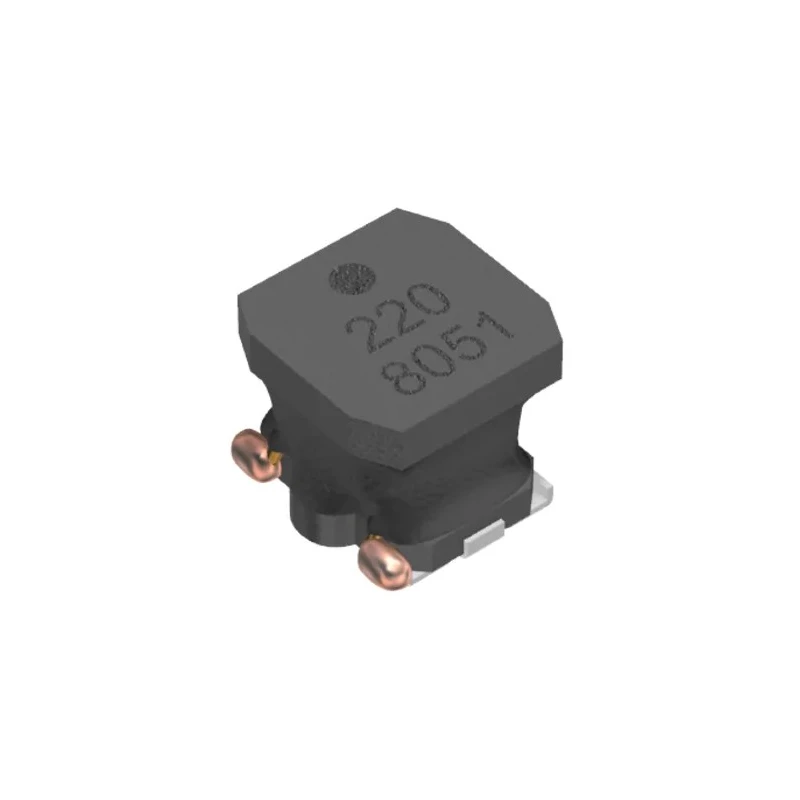

TDK 5045 Shielded Wirewound Surface Mount Inductor with Ferrite Core, 1 μH ±30% Inductance, 8.9 A DC VLS5045EX-1R0N-H
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | TDK |
| Height | 4.5mm |
| Length | 5mm |
| Model | VLS5045EX-1R0N-H |
| Depth | 5.3mm |
| Packaging | Tape & Reel |
| Series | VLS-EX-H |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 5045 |
| Maximum DC Current | 8.9A |
| Maximum DC Resistance | 19.5mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Shielded |
| Automotive Standard | AEC-Q200 |
Key Features
- Magnetic shield type wire wound inductor with ferrite core for enhanced electrical performance.
- Complies with automotive standard AEC-Q200 for reliable use in automotive electronics.
- Maximum DC resistance of 19.5 milliohms ensures efficient current flow.
- Temperature operating range from -40°C to 125°C suitable for harsh environments.
- Compact 5045 package with dimensions 5 mm length, 4.5 mm height, and 5.3 mm depth for surface mounting.
- Shielded construction reduces magnetic interference in high-density circuit boards.
- Ideal for use in automotive systems such as ECMs, airbags, electronic power steering, meters, and ABS.
- Packaging available in tape and reel format for automated assembly processes.
Product Description
TDK VLS5045EX-1R0N-H 5045 Shielded Wirewound Surface Mount Inductor with ferrite core offers an inductance of 1 μH at ±30% tolerance, and supports a maximum DC current rating of 8.9 amperes.
This wire wound inductor is designed with a ferrite magnetic core and optimized to provide a high magnetic shield, making it suitable for high-density mounting environments especially in automotive applications.
The inductor complies with the automotive AEC-Q200 standard and is RoHS certified, confirming its quality and environmental safety. Its shielded construction effectively limits electromagnetic interference, ensuring consistent performance in sensitive electronic circuits.
The inductor's compact 5045 package dimensions (5 mm length, 4.5 mm height, and 5.3 mm depth) enable easy surface mounting on PCBs with tape and reel packaging facilitating efficient automated assembly.
With a maximum DC resistance of only 19.5 milliohms and ability to operate over a wide temperature range (-40°C to 125°C), it is well-suited for demanding automotive electronic circuits such as engine control modules, airbags, electronic power steering, meters, and anti-lock brake systems.
Magnetic shield type wire wound inductor with ferrite core for enhanced electrical performance. Complies with automotive standard AEC-Q200 for reliable use in automotive electronics. Maximum DC resistance of 19.5 milliohms ensures efficient current flow.
Temperature operating range from -40°C to 125°C suitable for harsh environments. Compact 5045 package with dimensions 5 mm length, 4.5 mm height, and 5.3 mm depth for surface mounting. Shielded construction reduces magnetic interference in high-density circuit boards.
Ideal for use in automotive systems such as ECMs, airbags, electronic power steering, meters, and ABS. Packaging available in tape and reel format for automated assembly processes. This high-performance inductor is suitable for industrial, automotive, manufacturing, and embedded electronic applications where robust inductive components are required.
Explore the comprehensive range of electronics components available in EnvMart for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 1 μH with a tolerance of ±30%.
The maximum DC current rating for this inductor is 8.9 amperes.
The dimensions of the 5045 package are 5 mm in length, 4.5 mm in height, and 5.3 mm in depth.
The maximum DC resistance of this inductor is 19.5 milliohms.
It can operate within a temperature range of -40°C to 125°C.
Yes, it complies with the automotive standard AEC-Q200.
The core material used in this inductor is ferrite.
It is available in tape and reel format, suitable for automated assembly processes.
This inductor features a shielded construction to reduce magnetic interference.
It is ideal for use in automotive systems such as ECMs, airbags, electronic power steering, meters, and ABS.
The inductance tolerance for this inductor is ±30%.
The country of origin for this inductor is Korea.
