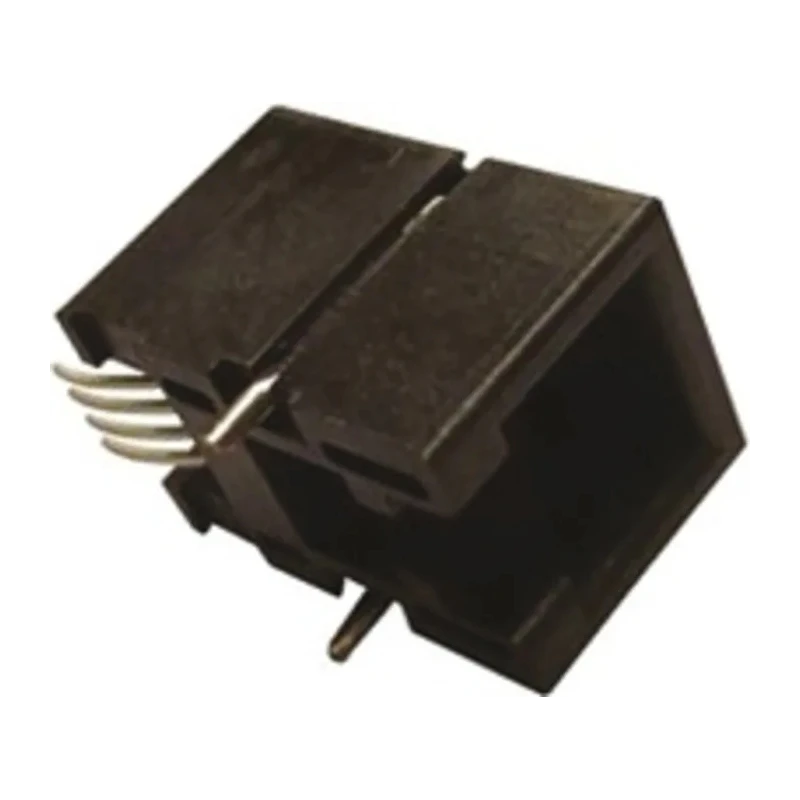

Molex RJ11 Female Surface Mount Cat3 Unshielded Right Angle 2 Port 4 Way Connector
Specifications
| Country of Origin | Ireland |
|---|---|
| Brand | Molex |
| Orientation | Right Angle |
| Length | 18.1mm |
| Model | RJ11 |
| Depth | 11.08mm |
| Connector Type | Modular Jack |
| Number Of Ways | 4 |
| Width | 11.5mm |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 85502 |
| Number Of Ports | 2 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Unshielded |
| Contact Plating | Gold over Nickel |
| Connector Gender | Female |
| LAN Category | Cat3 |
| Ethernet Connector Type | RJ11 |
Key Features
- Features two ports and four ways with right angle orientation for PCB mounting.
- Constructed with copper alloy contact material plated with gold over nickel for reliable conductivity.
- Supports solder termination and operates between -40°C to 85°C temperature range.
- Compact dimensions with 18.1mm length, 11.5mm width, and 11.08mm depth.
- Unshielded design suitable for Category 3 networks requiring low profile connectors.
- Black UL 94V-0 thermoplastic housing ensures flame retardancy and durability.
- Commonly used in networking, telecommunications, and industrial electronic assemblies.
- Manufactured in Ireland under the Molex 85502 series with proven quality standards.
Product Description
Molex RJ11 Connector model 85502-5009 is a female modular jack designed for surface mounting on printed circuit boards (PCBs). It belongs to the 85502 series of Category 3 unshielded right angle Ethernet connectors, intended for use in telecommunications and networking applications. The connector features a low profile of 11.5 mm height, a length of 18.1 mm, and a depth of 11.08 mm, making it suitable for compact electronic device integration.
The connector has two ports with four internal ways and provides a reliable connection thanks to its copper alloy contact material plated with gold over nickel. This ensures excellent electrical conductivity and resistance to corrosion, thus enhancing operational longevity. Designed for right angle orientation, it facilitates convenient PCB layout and cable management.
Operating temperature range from -40°C to 85°C allows deployment in diverse environmental conditions, including industrial settings. The black thermoplastic housing meets UL 94V-0 flame retardant standards, assuring safety and reliability. The connector uses solder termination, making it compatible with standard PCB soldering processes.
Applications for the Molex 85502 series RJ11 connector include industrial electronics, telecommunications equipment, networking devices, and other commercial electronic assemblies requiring unshielded Category 3 connectors.
Two port, four way female RJ11 modular jack. Surface mount with right angle orientation for PCB integration. Gold over nickel plated copper alloy contacts for superior conductivity. Operating temperature from -40°C to 85°C suitable for various environments.
Low profile design with UL 94V-0 compliant thermoplastic housing. Ideal for Category 3 Ethernet and telecom network applications. Ensures reliable signal transmission in unshielded setups. Manufactured in Ireland maintaining high quality standards.
This connector is supported by Molex's reputation for quality and is often used in industrial, laboratory, and commercial telecommunications installations. It contributes to the efficient assembly of electronic devices requiring reliable modular connection systems. Explore more Ethernet Connectors at EnvMart to find compatible products for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a right angle orientation, making it suitable for compact PCB layouts and effective cable management.
It operates within a temperature range of -40°C to 85°C, allowing for use in various environmental conditions.
This connector has two ports, allowing for multiple connections in a single modular jack.
It uses solder termination, which is compatible with standard PCB soldering processes.
The contacts are made from copper alloy and are plated with gold over nickel to ensure reliable conductivity.
The dimensions are 18.1 mm in length, 11.5 mm in width, and 11.08 mm in depth, making it compact for electronic device integration.
This model is unshielded, suitable for Category 3 networks requiring low profile connectors.
The housing is made from black UL 94V-0 thermoplastic, which meets flame retardant standards for safety.
It is commonly used in telecommunications, networking devices, and industrial electronic assemblies requiring unshielded connectors.
This connector features four internal ways, allowing for efficient signal transmission.
It is manufactured in Ireland, adhering to the quality standards of the Molex 85502 series.
This model belongs to Category 3 (Cat3), making it suitable for specific networking applications.
