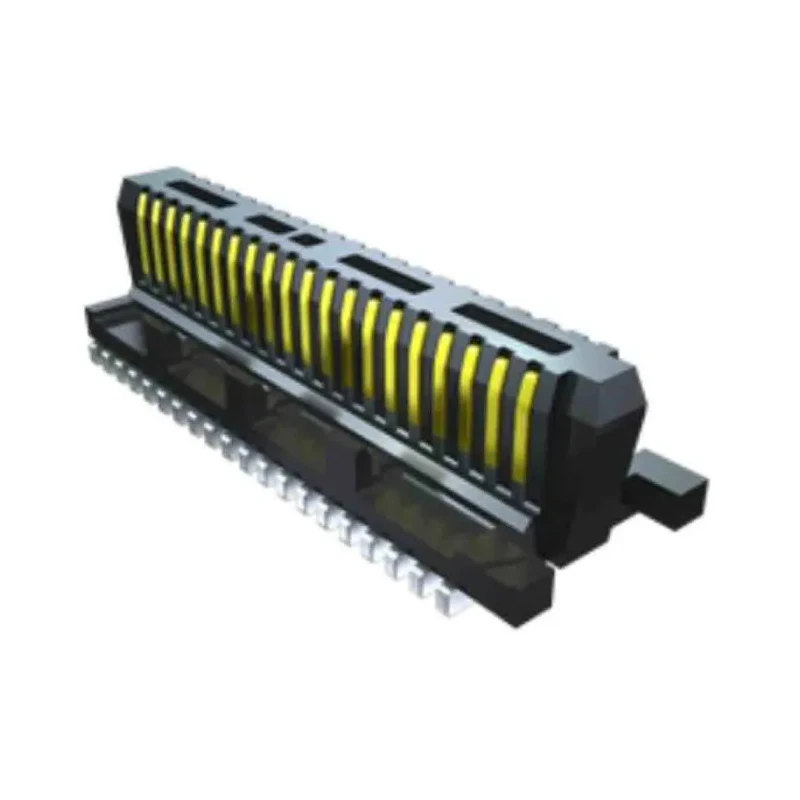

Samtec ST5 Series Right Angle Surface PCB Header, 40 Contacts, 0.5 mm Pitch, 2 Row, Shrouded ST5-20-1.00-L-D-P-TR

Samtec ST5-20-1.00-L-D-P-TR is a high-performance right angle surface PCB header designed for precise board-to-board connections with a 0.5 mm pitch and 40 contact points arranged in two rows. This shrouded male connector features a robust liquid crystal polymer housing, providing excellent insulation and environmental resistance.

The contacts are made from phosphor bronze, plated with silver and tin, ensuring superior electrical conductivity and reliability. Designed for surface mounting, the PCB header supports quick and secure solder termination, making it suitable for automated assembly processes.

Engineered to operate in extreme environments, this connector maintains performance across a wide temperature range from -55°C up to 125°C. It carries a current rating of 1.6 amps, suitable for many industrial, commercial, and electronic applications.

The right angle orientation helps in designing compact and efficient layouts by allowing connections parallel to the PCB surface. The shrouded design protects the contacts from mechanical damage and reduces the risk of misalignment during installation.

This Samtec PCB header is widely used in electronics manufacturing, telecommunications, computing devices, and other industrial equipment requiring reliable and space-saving PCB interconnections.

This surface mount PCB header ensures reliable board-to-board connections. Constructed with liquid crystal polymer housing for durability. Phosphor bronze contact material plated with silver and tin for excellent conductivity.

Operates safely between -55°C to 125°C temperature range. Rated for 1.6A current carrying capacity. Designed with solder termination and male contact gender for secure interfacing. Shrouded design protects contacts while facilitating easy mating.

Right angle orientation allows compact PCB layouts. Ideal for high-density electronic assemblies and industrial applications. Explore more Samtec connectors and PCB Headers at EnvMart to find precise solutions for your electronic assembly needs.
