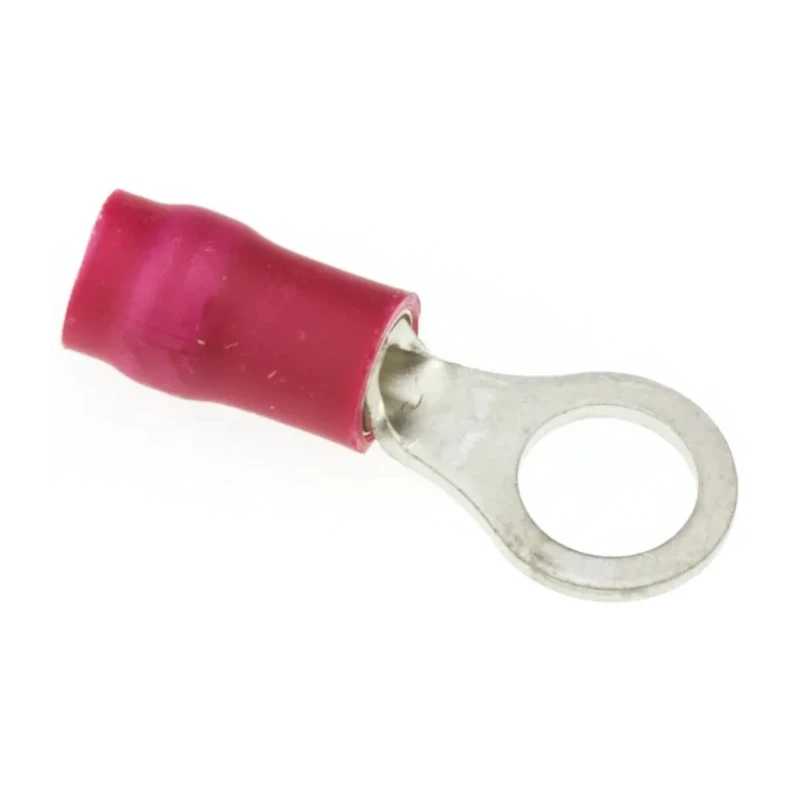

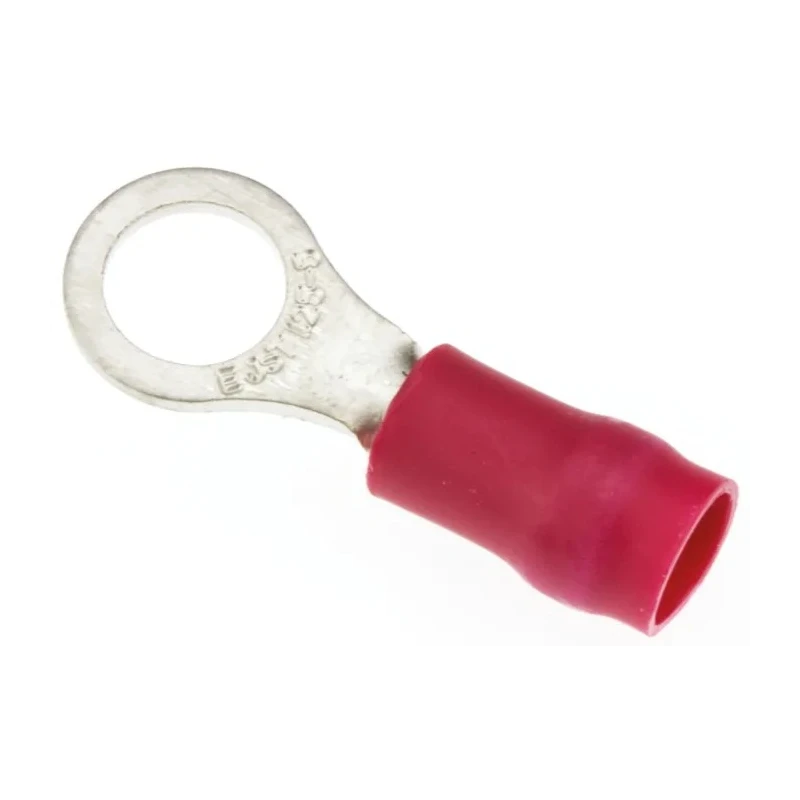

JST R Insulated Ring Terminal 5 mm Stud Size 22 AWG 16 AWG Wire Size Red FVDWS1.25-5 (LF)

The JST FVDWS1.25-5 (LF) R series insulated ring terminal is engineered with oxygen-free copper for exceptional electrical conductivity and high-strength brazing for durable, reliable connections.

This terminal features a vinyl insulation providing excellent flame resistance and electrical insulation properties, rated to handle temperatures up to 105°C. The flared vinyl insulation sleeve facilitates easy wire insertion, while the butted seam design ensures robust holding and insulation integrity.

With a compatible wire size range from 22 AWG to 16 AWG (0.25 to 1.65 mm²) and a 5 mm stud size, this terminal suits a variety of electronic and electrical wiring applications. Physical dimensions include an overall length of 20.6 mm, an outer ring diameter of 8 mm, inner ring diameter of 5.3 mm, and thickness of 0.8 mm.

The red color coding assists in wiring identification and organization. Oxygen-free copper contact ensures superior electrical performance. Vinyl insulation offers high flame resistance and electrical safety. Designed for high temperature resistance up to 105°C.

Flared vinyl insulation and butted seam design enhances durability and ease of use. Compatible with 22 to 16 AWG wire sizes and 5 mm stud size. Ideal for industrial, laboratory, automotive, and electrical equipment wiring.

This JST ring terminal is a reliable solution for secure wire terminations and connections in various industrial and commercial electrical applications. Explore more Ring Terminals and electrical components at EnvMart for comprehensive solutions.
