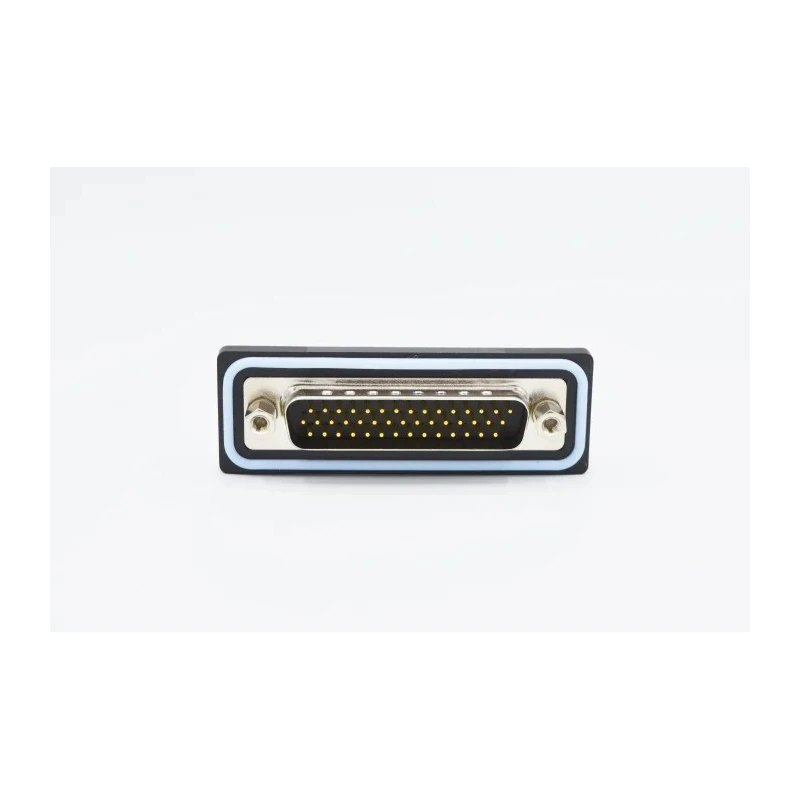

Norcomp 44 Way Straight 2.29 mm Pitch PCB D-Sub Connector with 4 to 40 Screw Lock Male HDF-S44-103L011

The Norcomp HDF-S44-103L011 is a high-density, 44-pin male D-Sub connector with a straight orientation and a 2.29 mm pitch, designed for printed circuit board (PCB) mounting. Its robust construction includes a nickel-plated steel shell and a silicon O-ring to achieve an IP67 rating, making it resistant to dust and water ingress. This connector series supports a current rating of 3A and a voltage rating of 1000V, ensuring reliable performance in demanding industrial and electronic applications.

Manufactured with gold-plated brass contacts, it provides excellent electrical conductivity and corrosion resistance for long-lasting connections. The housing is made from Polybutylene Terephthalate (PBT), featuring UL 94V-0 flammability rating and high thermal stability, effective within -25°C to 85°C operating temperatures.

Its standard 4 to 40 screw lock mounting hardware secures the connector firmly onto PCB assemblies, ideal for usage in industrial machinery, laboratory equipment, telecommunications, and computing hardware.

This connector does not carry specific industry certifications but adheres to standard quality and construction practices appropriate for electronic and power connector solutions. Male connector with 44 contacts providing stable electrical connections.

Housing made from Polybutylene Terephthalate ensuring durability and insulation. Gold plated brass contacts offer excellent conductivity and corrosion resistance. Rated for 3A current and 1000V voltage to support diverse applications.

Operates reliably between -25°C to 85°C for various industrial environments. Connector shell features nickel plating steel with a silicon O-ring for IP67 protection. Industry-standard 4 to 40 screw lock mounting for secure and easy installation.

Suitable for electronic components, computing, and power connector assemblies.

This Norcomp HDF series PCB D-Sub Connector is ideal for industrial, electronic manufacturing, and commercial electronics assembly applications where high-density and reliable connections are required. Explore EnvMart’s complete range of electronic connectors and accessories to complement this professional-grade component.
