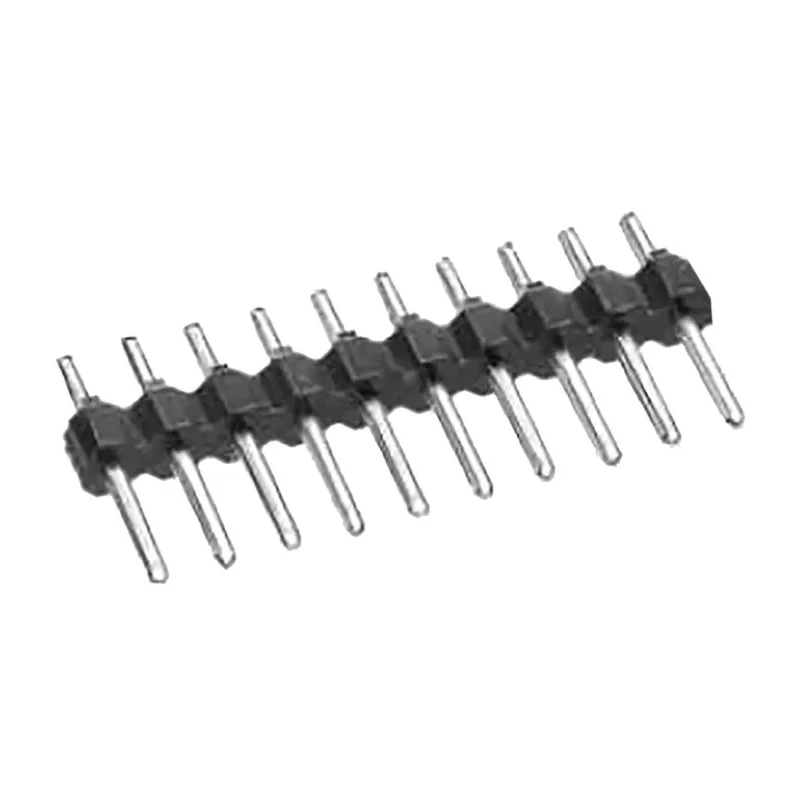

Hirose A2 Series Straight Through Hole Pin Header 10 Contacts 2.54 mm Pitch 1 Row Unshrouded A2-10PA-2.54DSA(71)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 3A |
| Model | A2-10PA-2.54DSA(71) |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | A2 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
Key Features
- The pin header uses brass contact material with gold plating for reliable conductivity.
- It supports a maximum current of 3A and a voltage rating of 200V.
- Designed for through-hole mounting in wire-to-board connector systems.
- Operating temperature ranges from -55°C to 85°C for durable performance.
- Termination is by solder, and the connector has a male contact gender.
- This high-density header is ideal for PCB space-saving applications.
- The product is made in Japan, ensuring quality manufacturing standards.
- Compatible with Hirose A1 and A2 series 2.54 mm crimp connector housings.
Product Description
Hirose A2-10PA-2.54DSA(71) is a Straight Through Hole Pin Header connector designed for wire-to-board connections on PCBs. This pin header provides 10 contacts arranged in a single row with a 2.54 mm pitch, making it suitable for high-density PCB layouts. It is unshrouded and has a straight orientation, facilitating easy and reliable mating with compatible connectors.
The contact material is brass, plated with gold to enhance conductivity and resistance to corrosion. Rated for a maximum current of 3A and voltage of 200V, it supports a broad range of electronic applications, including industrial control, telecommunications, and consumer electronics.
The operating temperature range from -55°C to 85°C ensures reliable function in harsh environments. This connector is intended for through-hole mounting and terminated by soldering, with male contact gender suited to standard mating connectors.
Manufactured in Japan, the Hirose A2 series upholds high-quality standards, providing dependable and durable performance in demanding electronic circuits. These connectors are compatible with the Hirose A1 and A2 series crimp connector housings, allowing versatile wire-to-board connections.
The pin header uses brass contact material with gold plating for reliable conductivity. Supports a maximum current of 3A and voltage rating of 200V. Designed for through-hole mounting in wire-to-board connector systems. Operating temperature from -55°C to 85°C provides durability.
Termination type is solder with male contact gender. Compatible with Hirose A1 and A2 series 2.54 mm crimp connector housings. Single-row, 10-contact configuration with 2.54 mm pitch. Unshrouded, straight orientation for flexibility in design.
This Hirose pin header is ideal for use in electronics manufacturing, industrial, laboratory, telecommunication, and commercial PCB assembly environments. It ensures secure and reliable electrical connections for consistent system performance.
Browse the EnvMart catalog for more Hirose connectors and other high-quality PCB components to meet your design and production needs.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this pin header is 3A.
This model has a voltage rating of 200V.
The pitch size of this connector is 2.54 mm.
The operating temperature range for this pin header is from -55°C to 85°C.
This model uses solder termination.
The contact material used in this pin header is brass, plated with gold.
This pin header has 10 contacts arranged in a single row.
This connector is unshrouded, allowing for flexibility in design.
The contacts in this model are male.
This pin header is designed for through-hole mounting.
This model is compatible with Hirose A1 and A2 series 2.54 mm crimp connector housings.
This product is manufactured in Japan, ensuring quality standards.
