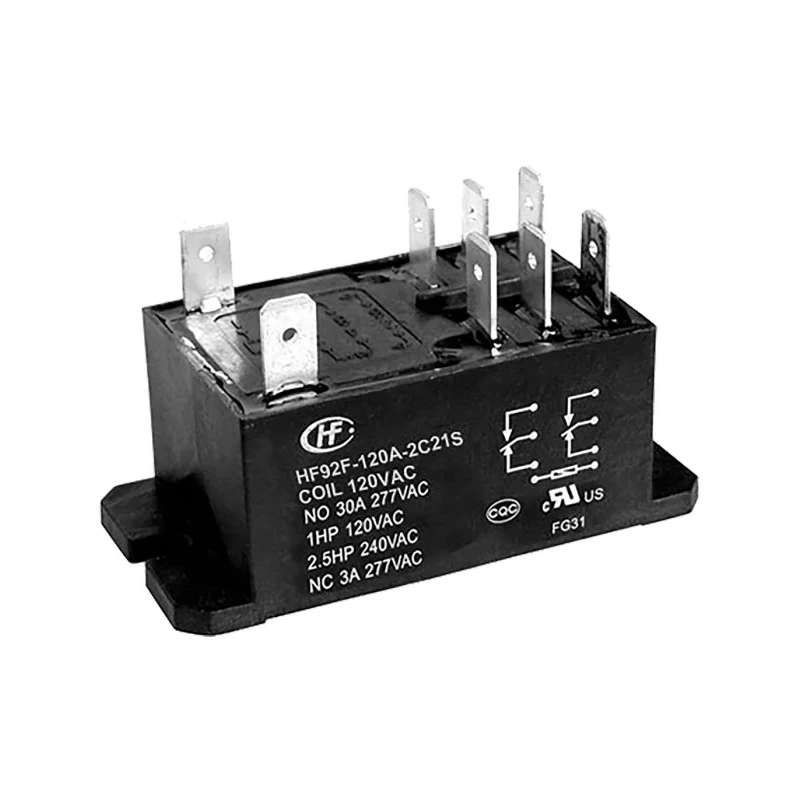

Hongfa Europe GMBH Flange Power Relay, 120V AC Coil, 30A Switching Current, DPDT, Quick Connect Terminals HF92F-120A-2C21S

Hongfa Europe GMBH HF92F-120A-2C21S flange power relay is a miniature intermediate power relay designed to provide high switching capability in demanding electrical and automation applications. Featuring a 120V AC coil, this relay supports up to 30A switching current with a DPDT contact configuration, making it ideal for controlling dual circuit switching tasks.

The relay incorporates quick connect terminals sized to 6.4 x 0.8 mm, enabling rapid and reliable wiring for various industrial and manufacturing environments. Its flange mounting type simplifies installation on panels or machinery, ensuring firm placement and mechanical stability.

Operating effectively within a wide temperature range from -40°C to 65°C, this relay ensures dependable performance in industrial, commercial, and HVAC systems exposed to varying ambient conditions. The coil resistance is precisely 950 ohms, consuming 4 watts of power, which contributes to efficient coil activation and minimal heat generation.

The contact system uses silver alloy material, renowned for excellent conductivity and resistance to wear, with a contact resistance of 50 milliohms ensuring low voltage drops and enhanced signal integrity. This relay can switch up to 277V AC and handle switching power up to 8.3 kVA, supporting high-load applications safely and reliably.

With compact dimensions (68.6 mm length, 33.7 mm width, and 26.4 mm height), the HF92F series relay is space-saving while maintaining robust electrical performance. The product is RoHS compliant and meets globally recognized standards such as CQC and cULus, assuring quality and conformity for industrial usage.

This flange power relay is optimally suited for industrial control systems, automation equipment, power distribution boards, electrical panels, and building management systems requiring dependable power switching solutions.

Explore more products in the Power Relays category for comprehensive solutions in electrical control and automation. This power relay features a DPDT contact configuration suitable for dual-pole applications. Equipped with quick connect terminals for fast and secure connections.

Designed with a flange mount type for easy installation and stability. Operates reliably between -40°C and 65°C ambient temperatures. Coil resistance is rated at 950 ohms with a coil power consumption of 4 watts. Silver alloy contact material ensures optimal conductivity and durability.

Supports a maximum switching AC voltage of 277V and a maximum switching power of 8.3 kVA. Compact dimensions of 68.6mm length, 33.7mm width, and 26.4mm height promote versatile use. Standards compliance includes CQC and cULus certifications, ensuring safety and quality.
